Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove rear door finisher. Refer to Removal & Installation.
Disconnect outside key antenna (rear door) harness connector.

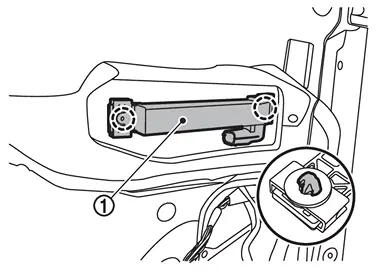

Disengage outside key antenna (rear door) fixing clips, and then remove outside key antenna (rear door)
.
 | : Clip |
Disengage clip fixing pawl using a remover tool (B), and then remove clip
.
 | : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Never reuse fixing clip. Always replace it with a new one when it is removed.
Rear Door
...
Rear Bumper
...
