Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Never damage front door glass and front door panel.
Fully close front door glass.
Remove front door finisher. Refer to Removal and Installation.
Remove front door woofer. Refer to Removal & Installation.
Remove front door glass run from front door lower sash.

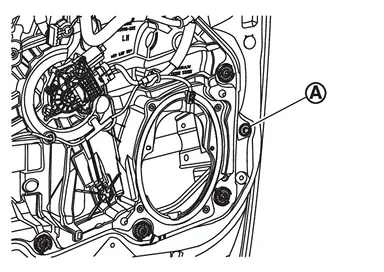

Remove front door lower sash mounting bolt
.
Remove front door lower sash from the hole of front door panel.
CAUTION:

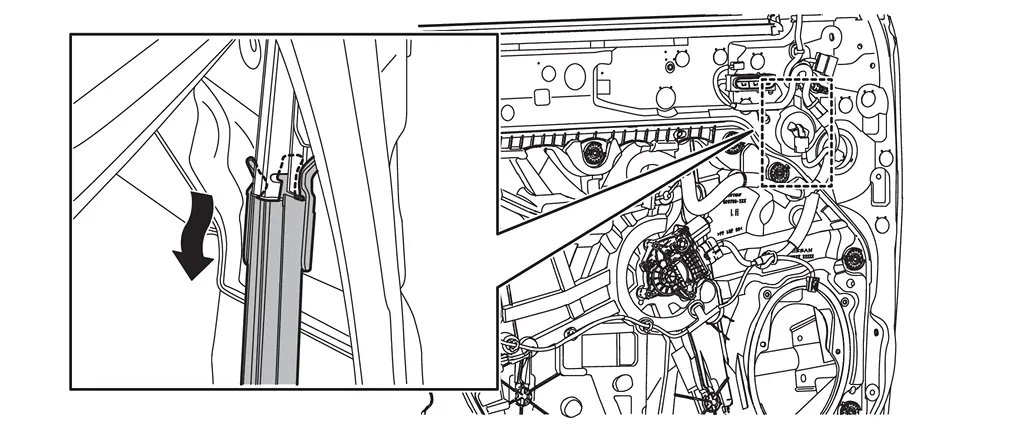

When removing front door lower sash, disengage fixing portion by arrow direction as shown in the figure.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:

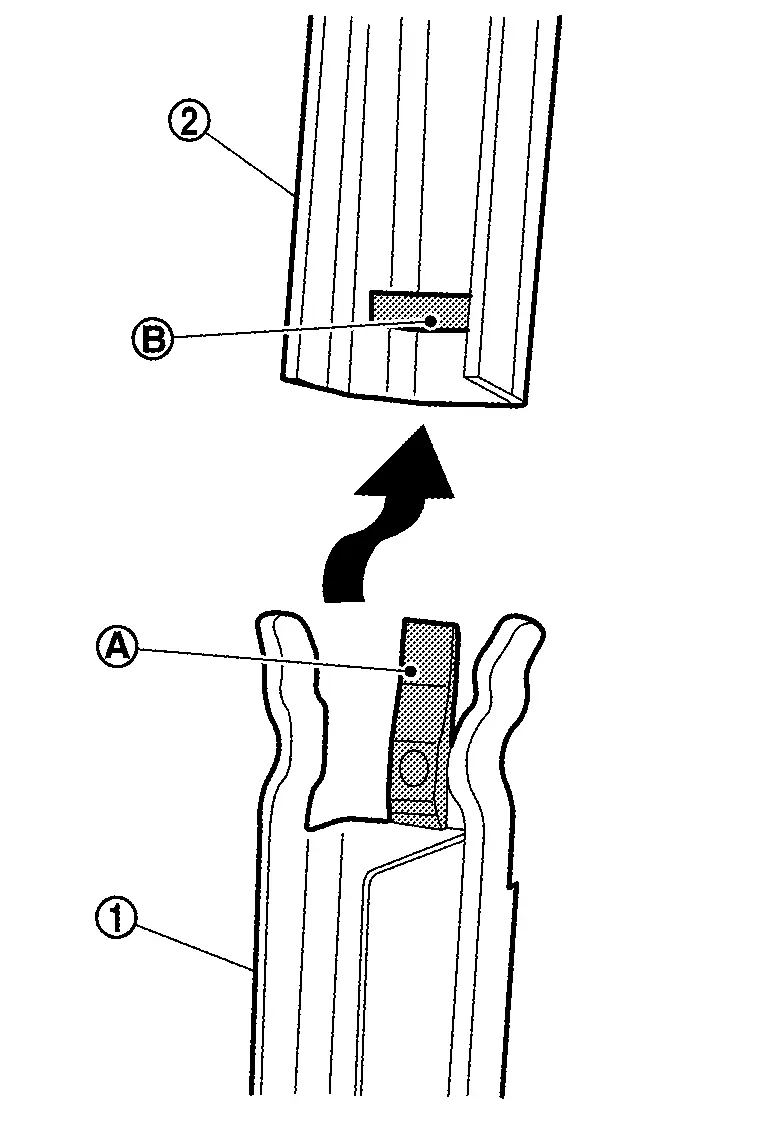

When installing, insert portion
of front door lower sash
to hole
of front door sash (front door panel
) as shown in the figure.
Tighten front door lower sash mounting bolt to the specified torque. Refer to Exploded View.
After installing, check the front door glass can be move smoothly. If it could not move smoothly, check the front door glass run has installed to front door lower sash correctly.
