Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never move intelligent rear view mirror
beyond the movable range as the wiring may break.
 | : Vehicle front |

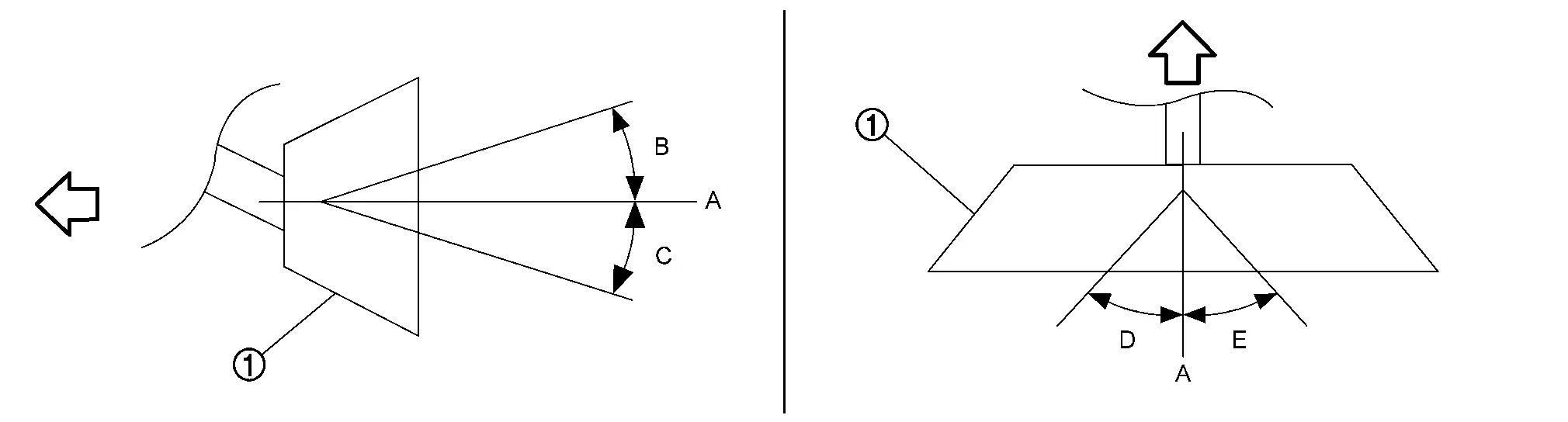

| intelligent rear view mirror movable range | |
| A | : Standard position |
| B | : Less than 20° (upward adjustment range) |
| C | : Less than 20° (downward adjustment range) |
| D | : Less than 30° (left adjustment range) |
| E | : Less than 30° (right adjustment range) |
REMOVAL
Remove cover. Refer to the following.
Without ProPILOT ASSIST 2.1: Removal and Installation.
With ProPILOT ASSIST 2.1: Removal and Installation.

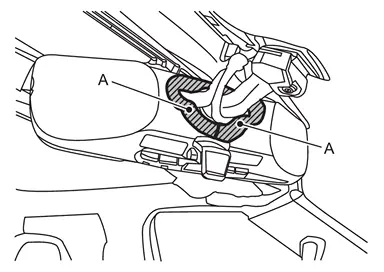

Apply protective tapes (A) on the part to protect it from damage.

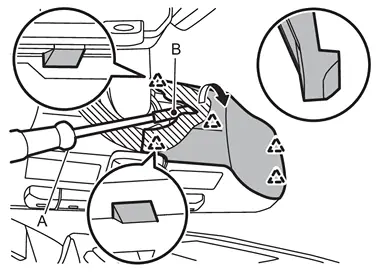

Disengage fixing pawls of the intelligent rear view mirror cover (LH and RH) using a remover tool (A), and then remove intelligent rear view mirror cover (LH and RH).
CAUTION:
Use a remover tool wrapped in tape (B).
 | : Pawl |

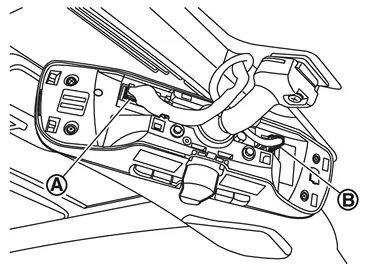

Disconnect intelligent rear view mirror harness connectors
and
.
Remove intelligent rear view mirror fixing screw .
Slide the intelligent rear view mirror to the upper side and remove it from the inside mirror base.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Tighten intelligent rear view mirror fixing screw to the specified torque. Refer to Exploded View.
Install while sliding intelligent rear view mirror along the glass surface.
Exploded View
Intelligent rear view mirror cover LH Intelligent rear view mirror cover RH Intelligent rear view mirror Inside mirror base : Pawl : N·m (kg-m, in-lb) ...
