Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Never damage the front door panel and any parts.
Remove front door sash inner cover. Refer to Removal & Installation.

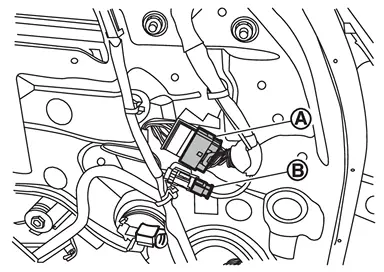

Disconnect door mirror assembly harness connectors
and
.
NOTE:
Harness connector : Side camera harness connector (with side camera)

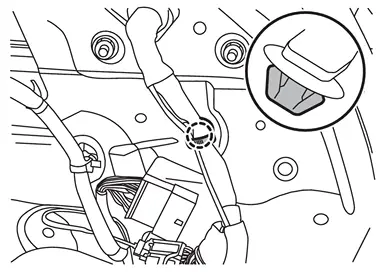

Remove harness clip.
 | : Clip |

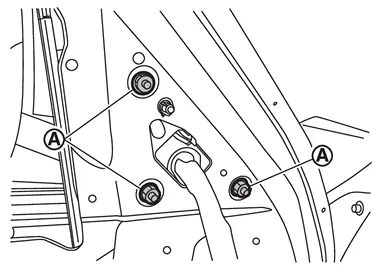

Remove door mirror assembly mounting nuts .
Disengage door mirror assembly fixing pawl , and then remove door mirror assembly.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
In accordance with the replacement operation of the door mirror assembly and side camera, the parameter writing of the camera and the camera image calibration must be performed.
Refer to the matrix below and perform the action as appropriate.
The numbers in the matrix indicate the operating procedure.
| Situations | |||||
|---|---|---|---|---|---|
| Operations | Replace door mirror assembly & side camera | Replace door mirror assembly (side camera reused) | Replace side camera (door mirror assembly reused) | Remove door mirror assembly with camera | |
| Parameter writing for camera | 1 | - | 1 | - | Refer to Work Procedure |
| Camera image calibration | 2 | 1 | 2 | 1 | Refer to Work Procedure |
Disassembly and Assembly
DISASSEMBLY
Remove door mirror assembly. Refer to Removal and Installation.
Remove door mirror cover. Refer to Removal and Installation.
Disconnect all terminals from harness connector .
NOTE:
Make ...
