Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Place glass mirror upward.
Apply protective tapes (A) on the part to protect it from damage.

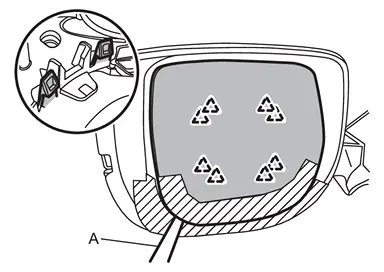

Insert remover tool (A) into the recess at between glass mirror and door mirror actuator, and then disengage glass mirror fixing pawls.
CAUTION:
Disengage the fixing pawls slowly so they are not damaged.
 | : Pawl |

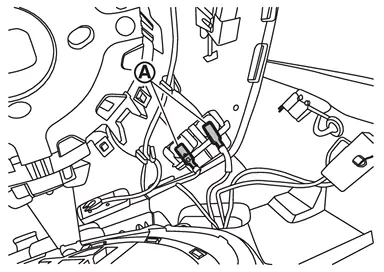

Disconnect BSW harness connector
.

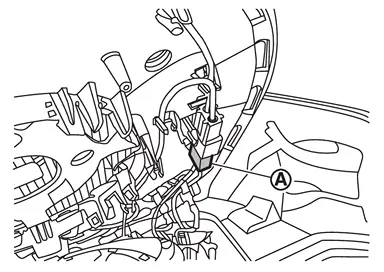

Disconnect auto anti-dazzling harness connector (if equipped).

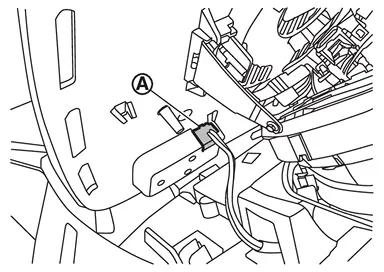

Disconnect door mirror heater harness connectors (if equipped).
Remove glass mirror.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
After installation, visually check that fixing pawls are securely engaged.
Glass Mirror
...
