Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove headlining assembly. Refer to Removal and Installation.

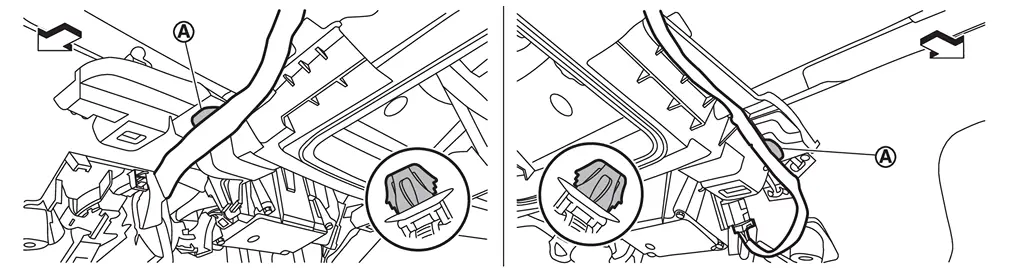

Disengage body harness fixing clips
, and then remove body harness from map lamp bracket.
 | : Vehicle front |
Remove map lamp bracket.
- Without moonroof models

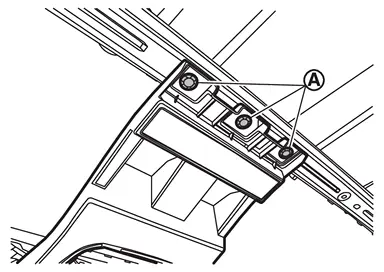

- Remove map lamp bracket fixing clips .

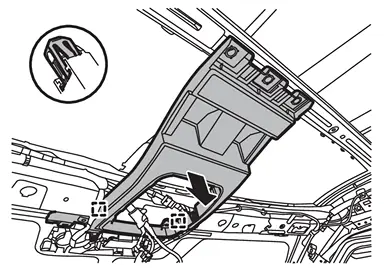

- Disengage fixing metal clips, and then remove map lamp bracket.
: Metal clip
- Remove map lamp bracket fixing clips
- With moonroof models

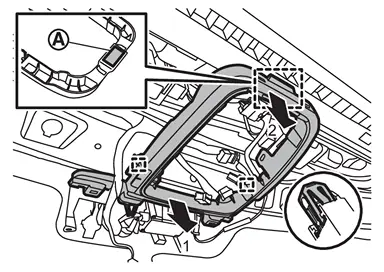

Disengage fixing metal clips and dual-lock fastener
according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove map lamp bracket.
: Metal clip
INSTALLATION
Install in the reverse order of removal.
