Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove headlining assembly. Refer to Removal and Installation.
Disconnect harness connector.

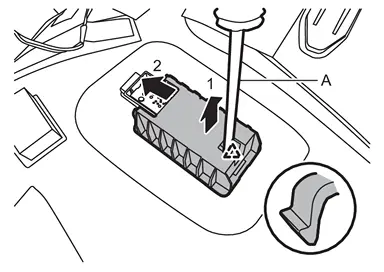

Disengage vanity mirror lamp bracket fixing pawl using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove vanity mirror lamp and vanity mirror lamp bracket.
 | : Pawl |
INSTALLATION
Install in the reverse order of removal.
Exploded View
Vanity mirror lamp bracket Headlining assembly Vanity mirror lamp : Pawl : Vehicle front ...
Replacement
CAUTION:
Replacement of bulb is not possible due to the adoption of LED. When replacement, replace vanity mirror lamp as a single part. Refer to Removal and Installation.
...
