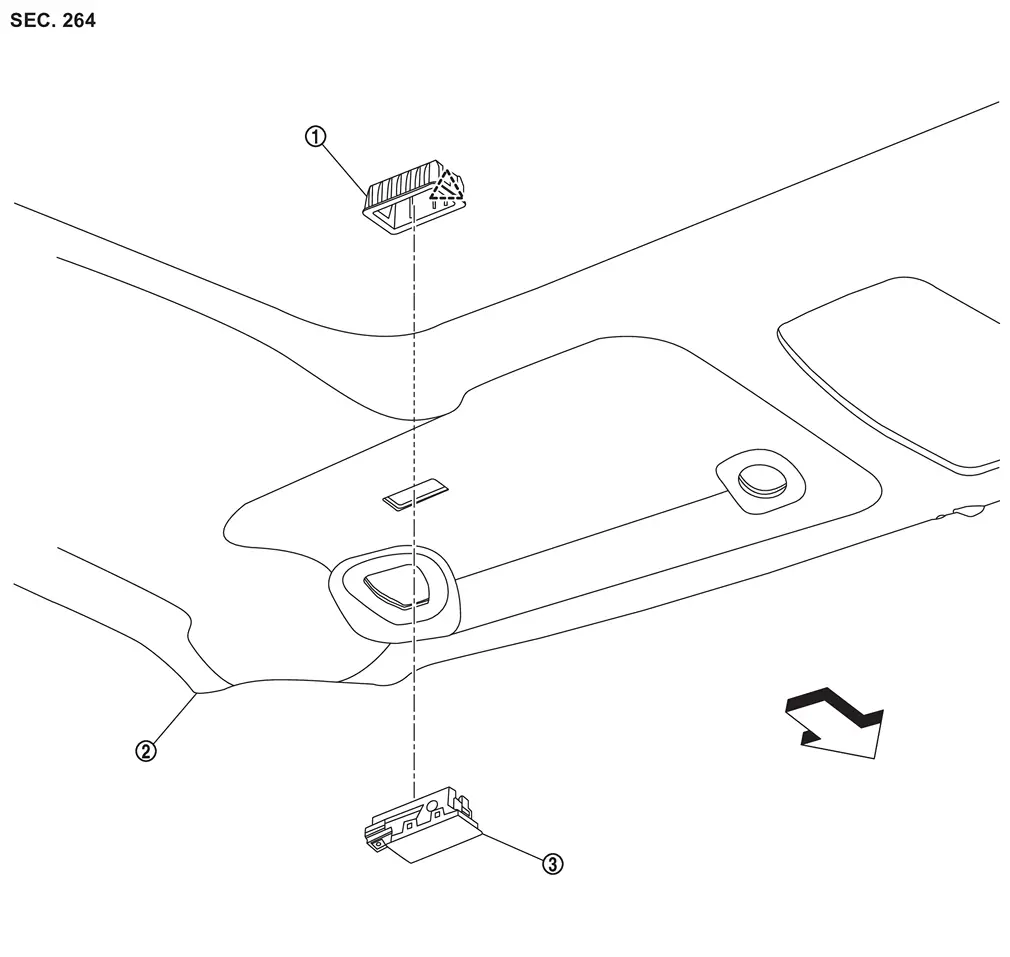

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Vanity Mirror Lamp

...

Removal and Installation

CAUTION: REMOVAL Remove headlining assembly. Refer to Removal and Installation. Disconnect harness connector. Disengage vanity mirror lamp bracket fixing pawl using a remover tool (A) according to num ...
