Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

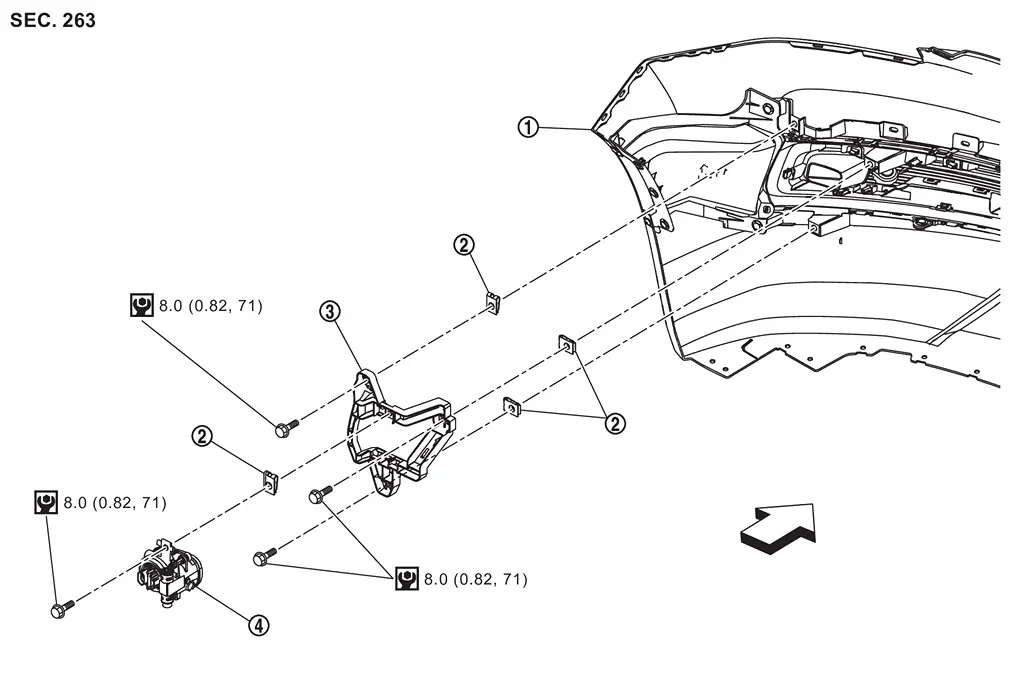

CITY MODEL
 | Front bumper fascia |  | U nut |  | Front fog lamp bracket |
 | Front fog lamp | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||

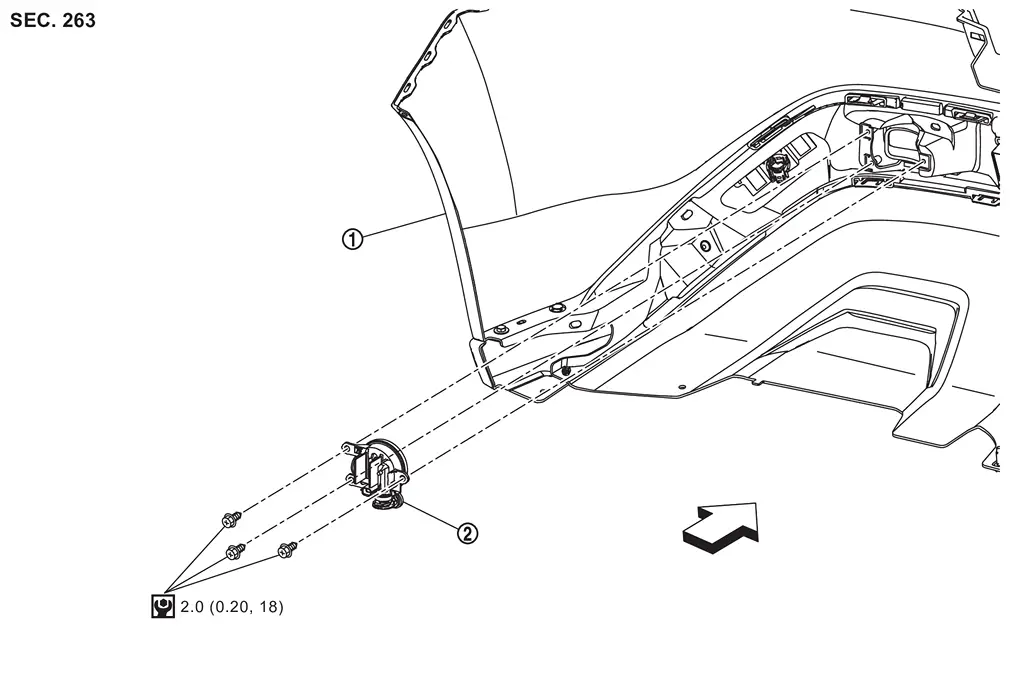

OFF ROAD MODEL
| Front bumper fascia | | Front fog lamp | ||
| : Vehicle front | ||||
| : N·m (kg-m, in-lb) | ||||
Front Fog Lamp
...
Removal and Installation
CAUTION:
REMOVAL
Remove front bumper fascia. Refer to following.
City model: Removal and Installation.
Off road model: Removal and Installation.
Disconnect front fog lamp harness connector.
Remove f ...
Other materials:
Removal and Installation
CAUTION:
REMOVAL
Remove door mirror finisher. Refer to Disassembly and Assembly.
Remove side camera (if equipped). Refer to Removal and Installation.
Disconnect side turn signal lamp harness connector .
Remove side turn signal lamp fixing pawls , and then remove side turn signal lamp.
INSTALLATI ...
Exploded View
WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION
Piston rod lock nut Mounting insulator Rubber seat Coil spring Dust cover Bound bumper Shock absorber Lower link : Always replace after every disassembly. : N·m (kg-m, ft-lb)
WITH DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC ...
Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke as shown.
CAUTION:
For matching mark, use paint. Never damage the surface.
Remove snap rings .
Lightly tap bottom of yoke using a copper hammer and remove journal bearing.
CAUTION:
Never damage the yoke.
ASSEMBLY
Install j ...
