Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove headlining assembly. Refer to Removal and Installation.
Disconnect harness connector.

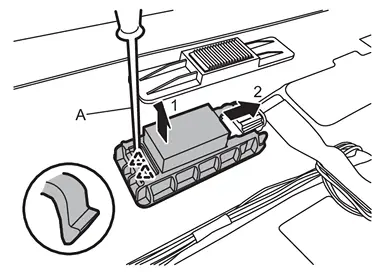

Disengage personal lamp bracket fixing pawls using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove personal lamp and personal lamp bracket.
 | : Pawl |
INSTALLATION
Install in the reverse order of removal.
Exploded View
Headlining assembly Personal lamp Personal lamp bracket : Pawl : Vehicle front ...
Replacement
CAUTION:
Replacement of bulb is not possible due to the adoption of LED. When replacement, replace personal lamp as a single part. Refer to Removal and Installation.
...
