Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove headlining assembly. Refer to Removal and Installation.
Disconnect harness connector.

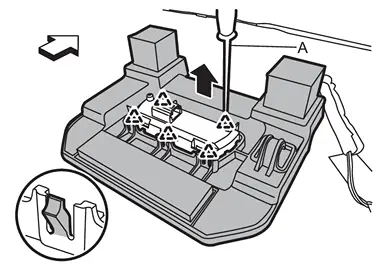

Disengage rear room lamp bracket fixing pawls using a remover tool (A), and then remove rear room lamp and rear room lamp bracket.
 | : Pawl |
 | : Vehicle front |
INSTALLATION
Install in the reverse order of removal.
Exploded View
Rear room lamp bracket Headlining assembly Rear room lamp : Pawl : Vehicle front ...
Replacement
CAUTION:
Replacement of bulb is not possible due to the adoption of LED. When replacement, replace rear room lamp as a single part. Refer to Removal and Installation.
...
