Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

Nissan Armada 2025-2026 Service and Repair Manual / Driver Controls / Interior Lighting System — Removal and Installation / Advanced Ambient Light (instrument Panel Driver Side) / Removal and Installation

CAUTION:

REMOVAL

Remove instrument pad A. Refer to Removal and Installation.

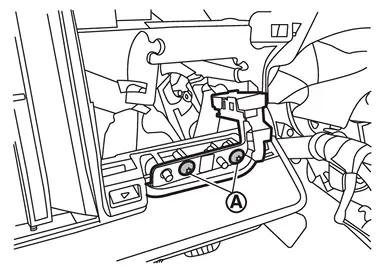

Remove indirect light LH fixing screws .

Disconnect harness connector, and then remove indirect light LH.

Disengage advanced ambient light (instrument panel driver side) fixing pawls using a remover tool (A), and then remove advanced ambient light (instrument panel driver side).

: Pawl

INSTALLATION

Install in the reverse order of removal.

Exploded View

Instrument finisher A Indirect light LH Advanced ambient light (instrument panel driver side) : Pawl : Vehicle front ...

CAUTION: Replacement of bulb is not possible due to the adoption of LED. When replacement, replace advanced ambient light (instrument panel driver side) as a single part. Refer to Removal and Installa ...
