Nissan Armada 2025-2026 Service and Repair Manual: Repairable Frame Damages
In general, the following types and degrees of frame damages are considered repairable though the repairability may differ depending on the capacity of the frame straightening equipment in use.

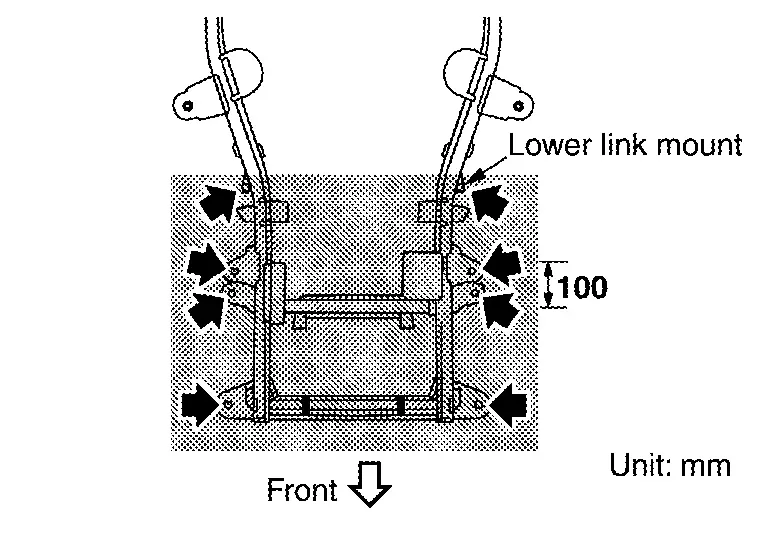

(1) LONGITUDINAL DEFORMATION
Deformation located ahead of the lower link mount, the length of which is 100 mm (3.94 in) or less in the longitudinal direction.

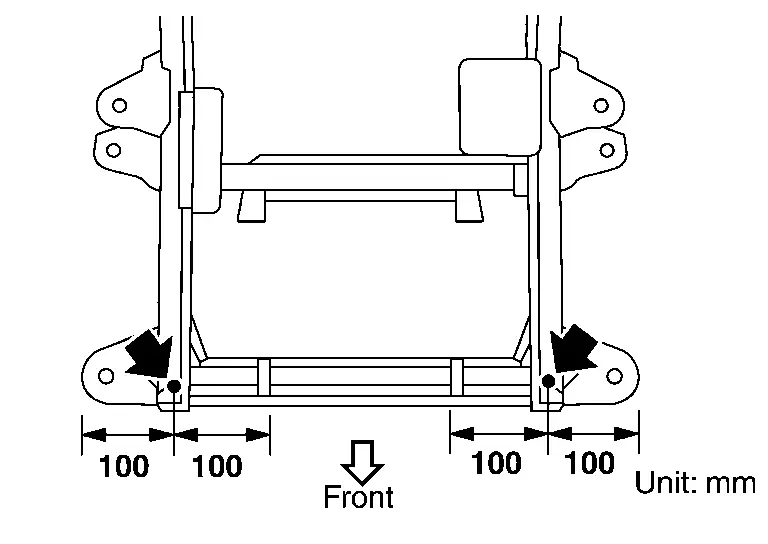

(2) SIDE-SWAY DEFORMATION
Deformation at the end of the frame that sways either leftward or rightward from the vehicle body centerline up to 100 mm (3.94 in) in length.
(3) DEFORMATION IN HEIGHT LENGTH
Deformation at the upper link mount that sways either upward or downward up to 30 mm (1.18 in).
(4) FRAME PARTIAL REPLACEMENT
If some portion in a repairable frame deformation is difficult to restore due to work hardening caused by the deformation, such a portion can be repaired by performing butt joint weld at the point specified in the Service Manual and/or the Body Repair Manual. Do not perform a butt joint weld at any points other than those specified in the Service Manual and/or the Body Repair Manual.
(5) FRAME ASSEMBLY REPLACEMENT
If the damage exceeds the repairable limits specified above, replace the frame assembly.
Elimination of Residual Stress
When repairing a deformed frame, elimination of any residual stress should be given higher priority.
This manual describes the method for eliminating any residual stress, which must be referenced as a ...
Frame Vehicle Construction
(1) FEATURES OF FRAME TYPE VEHICLE
The body is bolted to the frame via rubber bushings. Unlike uni-bodies, the suspensions and power train units are assembled to independent frames. The frames support ...
