Nissan Armada 2025-2026 Service and Repair Manual: Frame Vehicle Construction
(1) FEATURES OF FRAME TYPE VEHICLE
The body is bolted to the frame via rubber bushings. Unlike uni-bodies, the suspensions and power train units are assembled to independent frames. The frames support the weights of these components and absorb any incoming impact from outside, providing a structure that prevents any vibrations and impacts from being transmitted to the body.
The frames are categorized into some types by their shapes (ladder type, backbone type, perimeter type, pipe type). Of these, the ladder type frame often used in SUVs and pickups is described below.
(2) LADDER TYPE

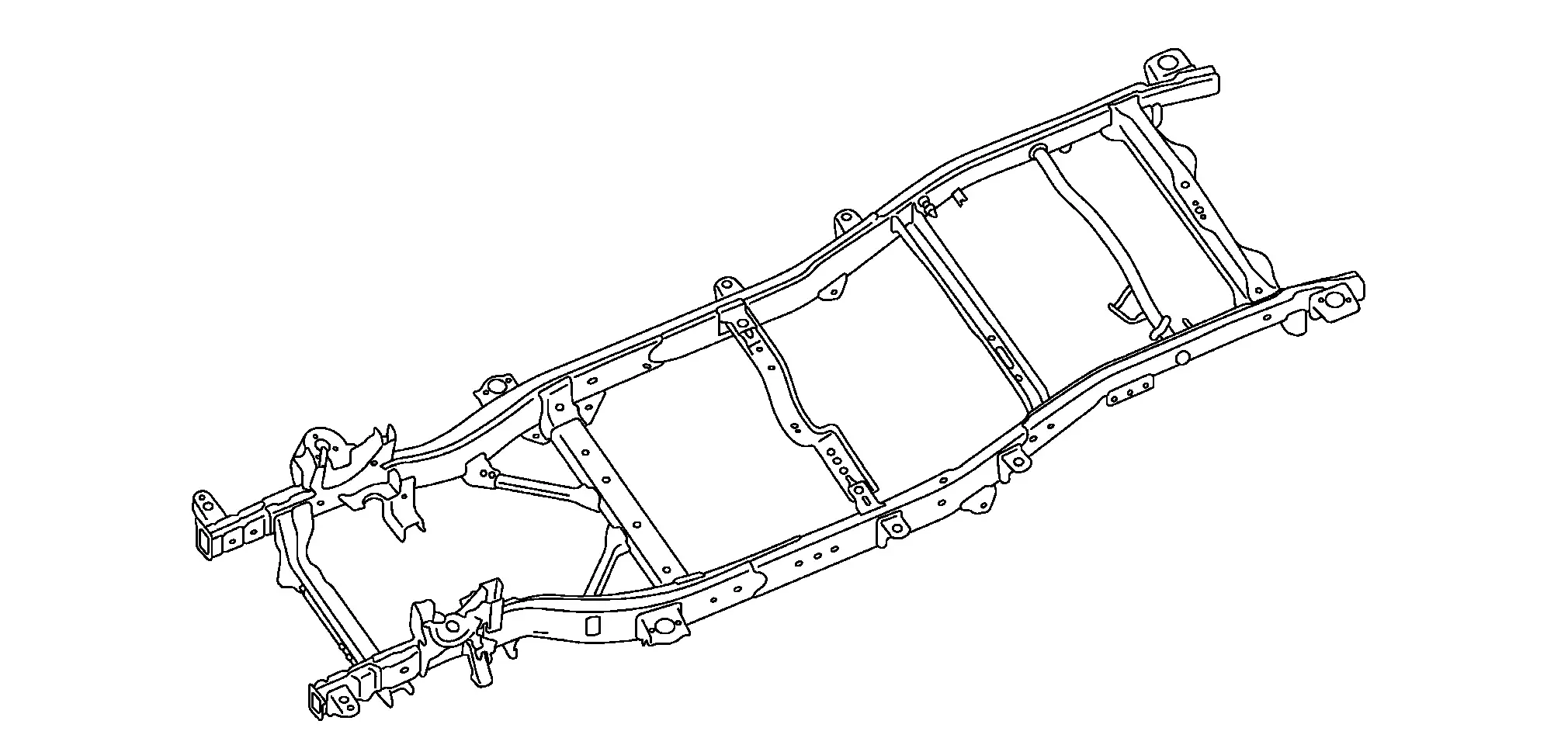

The basic configuration of a ladder frame is shown in the figure. A ladder frame is composed of two side frames with a box type cross section and multiple crossmembers.
The ladder frames are classified into the following two types according to the cross-sectional shape.
(a) Channel type
Easy to manufacture compared to closed cross section type
Easier unit installation
The torsional rigidity is lower than the closed cross section type
Used for heavy to medium duty trucks
(b) Closed box type
Higher torsional rigidity due to closed cross section
Higher cost than channel type
Used for small trucks such as SUVs and pickups
Repairable Frame Damages
In general, the following types and degrees of frame damages are considered repairable though the repairability may differ depending on the capacity of the frame straightening equipment in use.
(1) LO ...
Frame Repair Procedure
In general, a task to repair a frame damaged by a traffic accident (straightening and entire or partial replacement) is performed according to the following procedure.
...
