Nissan Armada 2025-2026 Service and Repair Manual: Securing the Vehicle
To prevent the movement of vehicle, use a suitable method that can resist the pulling force required for repair.

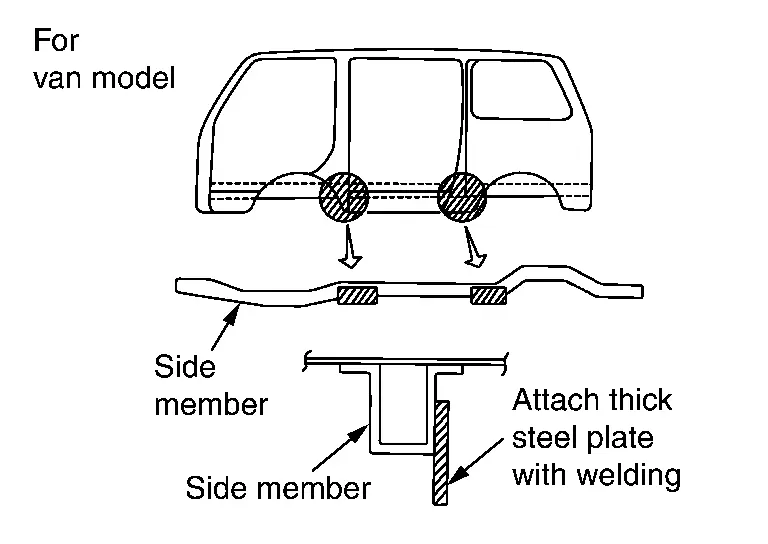

(1) ANCHORING POINT

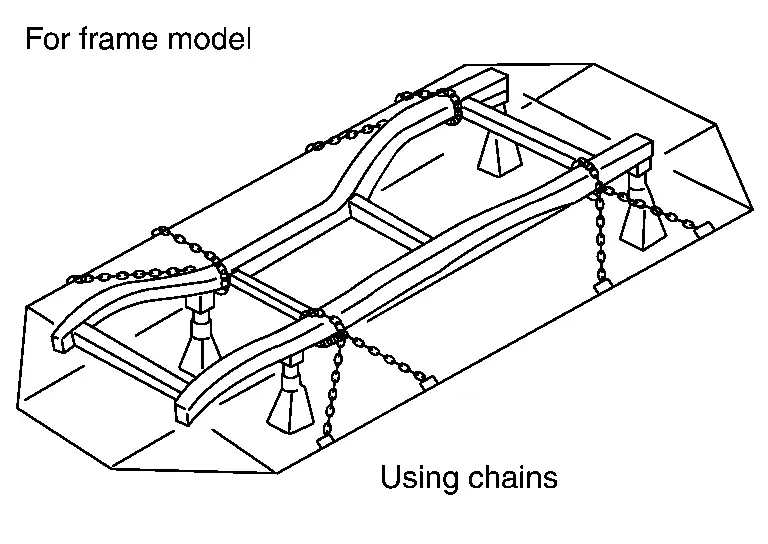

For passenger vehicle
|
|
|
|
CAUTION:
Choose the foundation of a rigid pillar or a member for anchoring point.

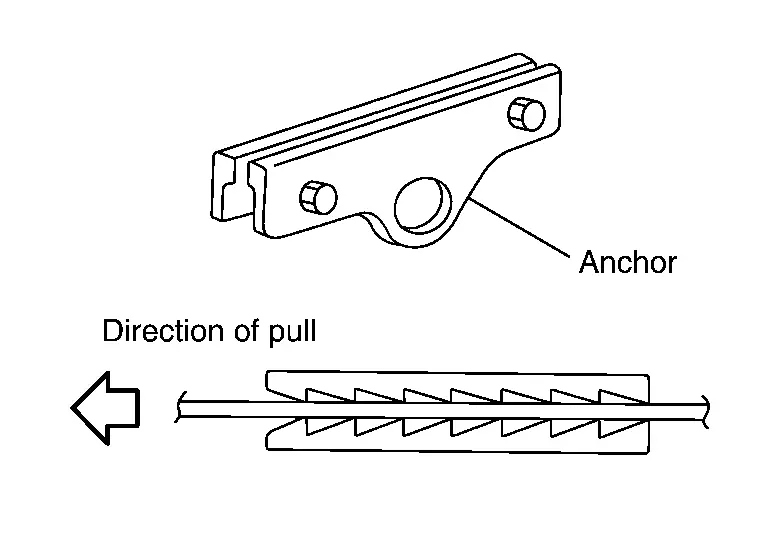

Set the equipment so that the direction of claw clamp is opposite to the direction of pull.
(2) ATTACHMENT OF CHAINS

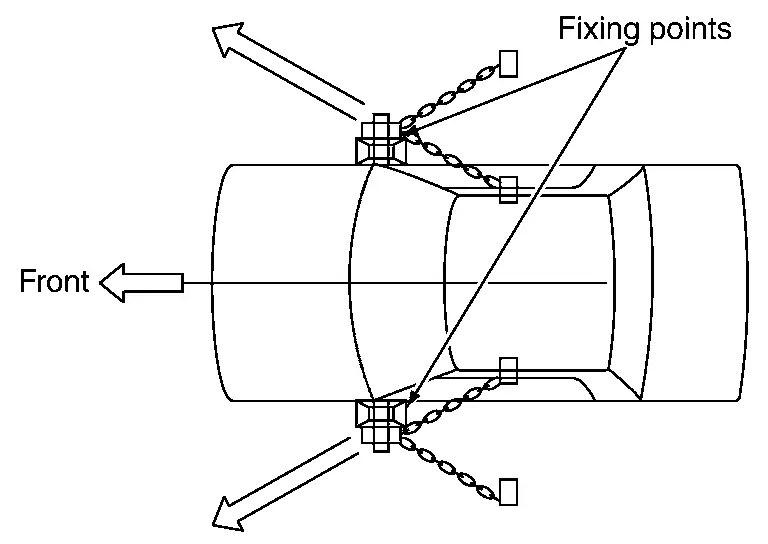

Pulling to the front of vehicle
The vehicle will be secure if it is pulled in the range indicated by the arrows in the figure. The rear side is the opposite of this.

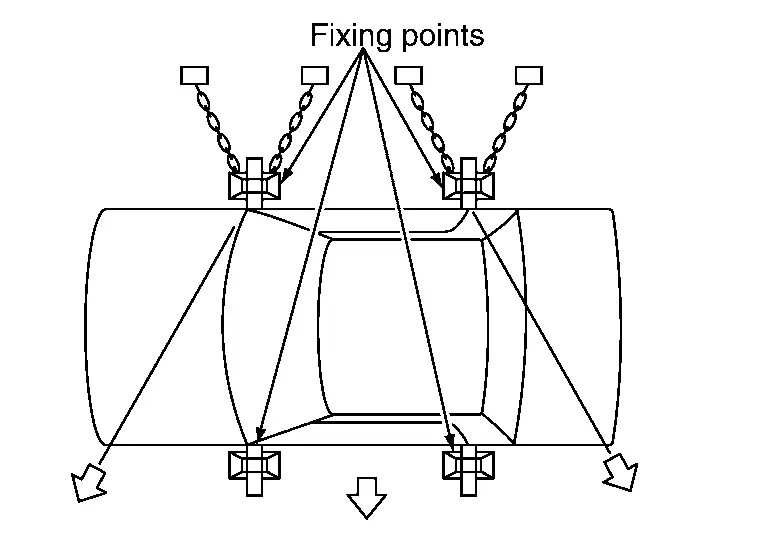

Pulling to the left or right side
Pull the vehicle within the range indicated by arrows.

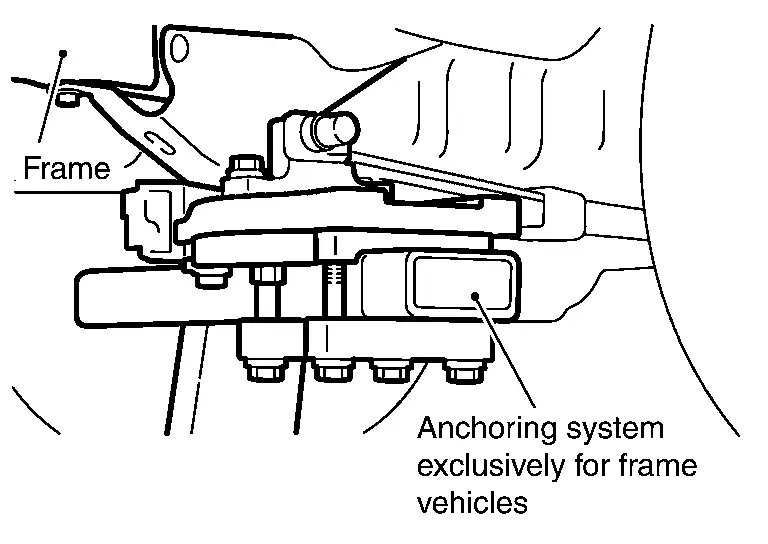

(3) ANCHORING POINT FOR FRAME MODEL USING FRAME CLAMPING
If the frame cannot be anchored to the straightening equipment with the basic anchoring method the frame can be directly anchored by using frame clamping system. The figure shows an example in which the spring shackle is anchored without the spring being removed.
Steps and Process
Each step and process should be described in detail. See below the steps:
DetailsRepair preparation Repair method confirmation Check the contents of the repair sheet and the work procedure. Prepara ...
Securing and Pulling
In principle, the pulling force must be applied in the exact opposite direction of the impact force (input). The securing method must match this pulling direction.
(1) DOWNWARD PULL
Secure as close to ...
