Nissan Armada 2025-2026 Service and Repair Manual: Securing and Pulling
In principle, the pulling force must be applied in the exact opposite direction of the impact force (input). The securing method must match this pulling direction.

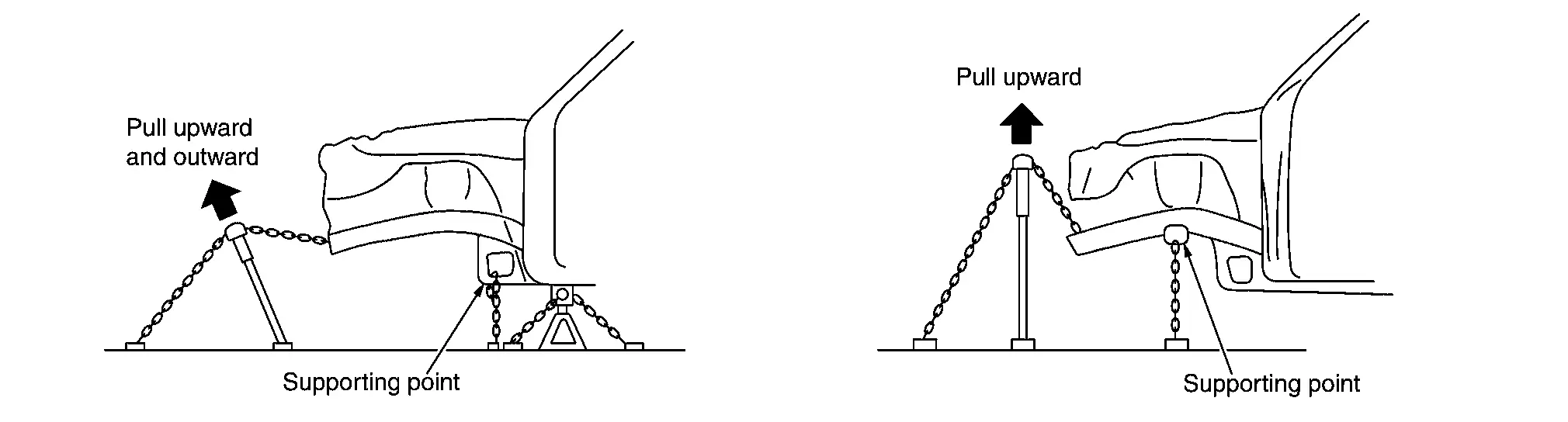

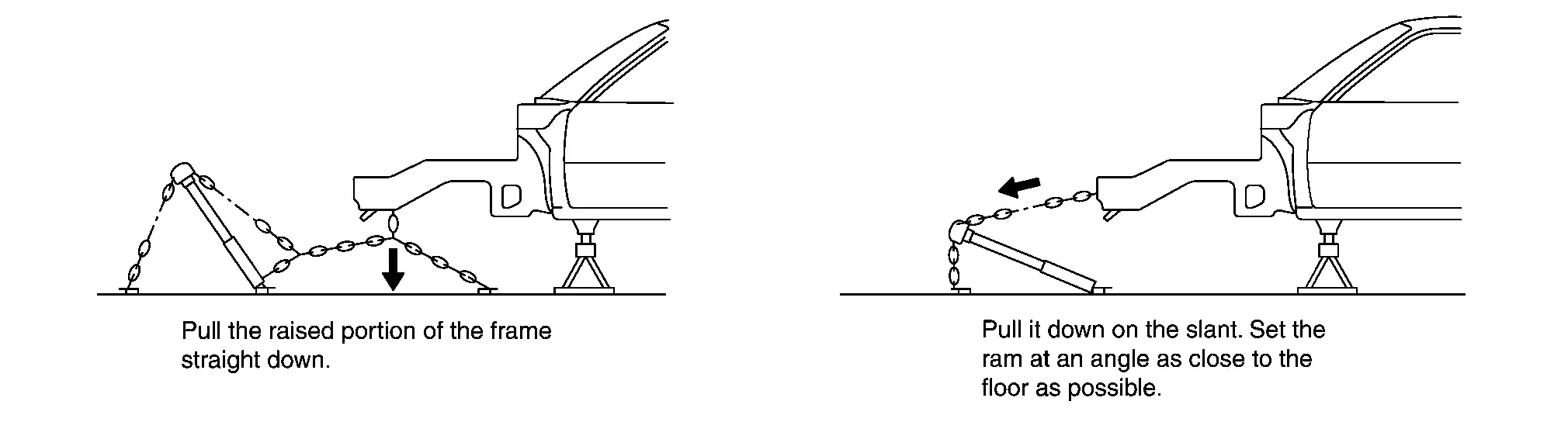

(1) DOWNWARD PULL
Secure as close to the damaged portion as possible. If there is a separation between the pulling point and damaged point, the undamaged portion will also be pulled.
(2) UPWARD PULL
Set the supporting so that undamaged portions will not be affected by pulling.

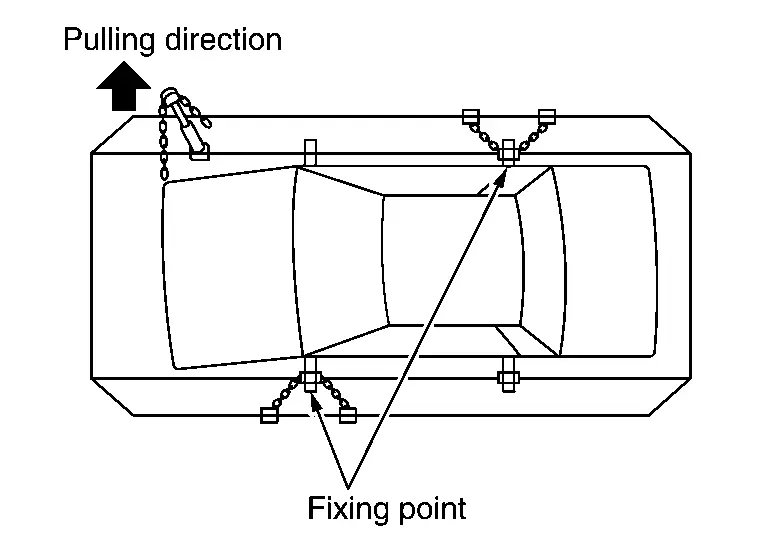

(3) FIXING AND PULLING METHOD FOR SIDE BEND
To pull the front part of vehicle, secure the vehicle body to avoid movement by the moment of rotation caused by pulling.

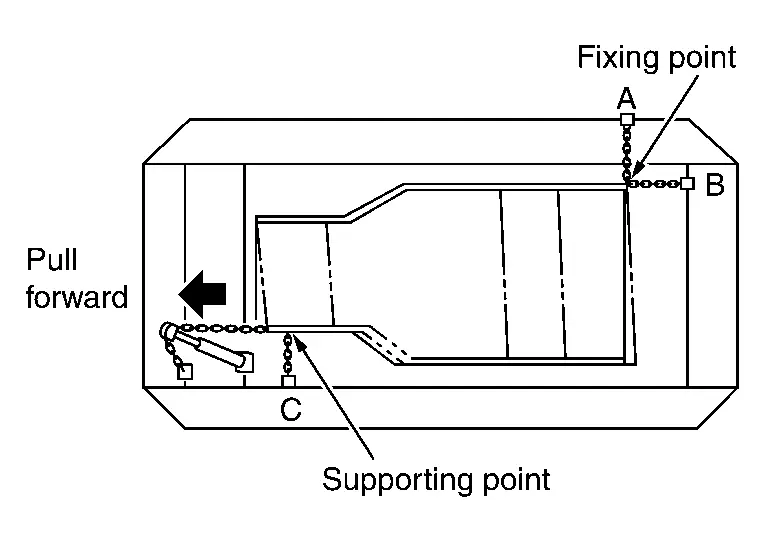

(4) FIXING AND PULLING METHOD FOR DIAMOND
If only points (A) and (B) are secured, a moment of rotation may result. Establish another supporting point at portion (C).

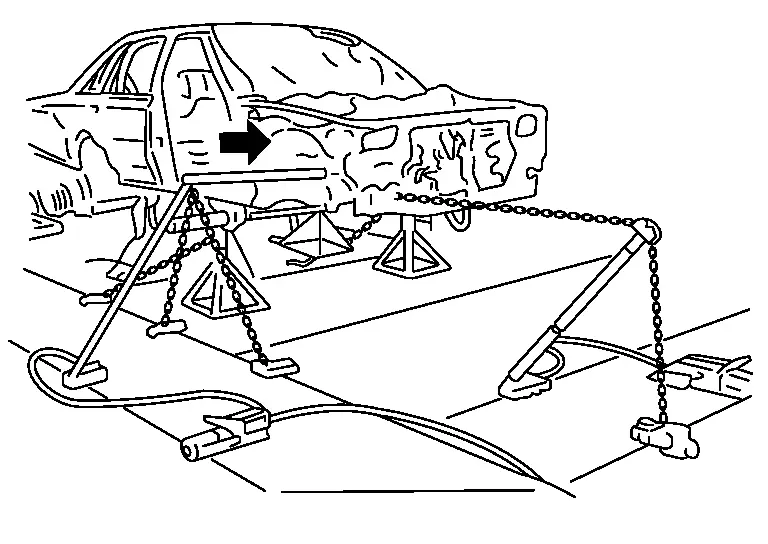

(5) SIMULTANEOUS PULLING IN MULTIPLE DIRECTIONS
This method can shorten repair time, and also prevent secondary damage.

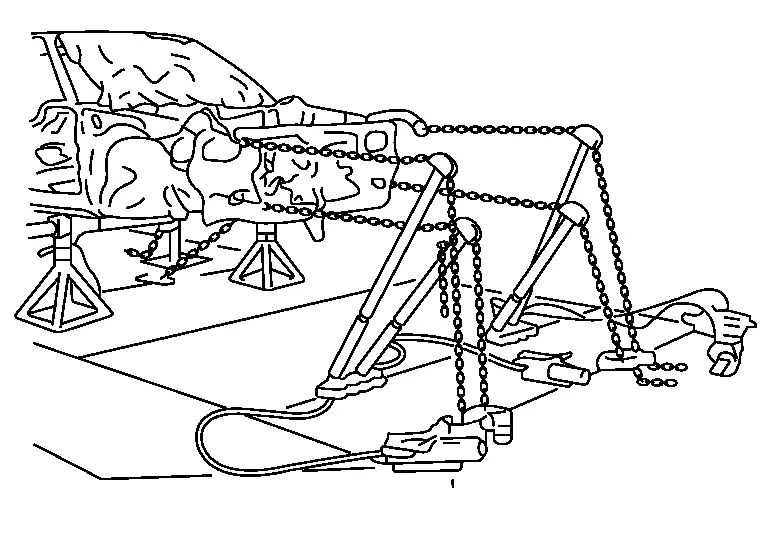

(6) SIMULTANEOUS PUSH-PULL METHOD
This method may be used when stress is concentrated at the front side member. The front of the front side member is bent inward while the rear is bent outward.

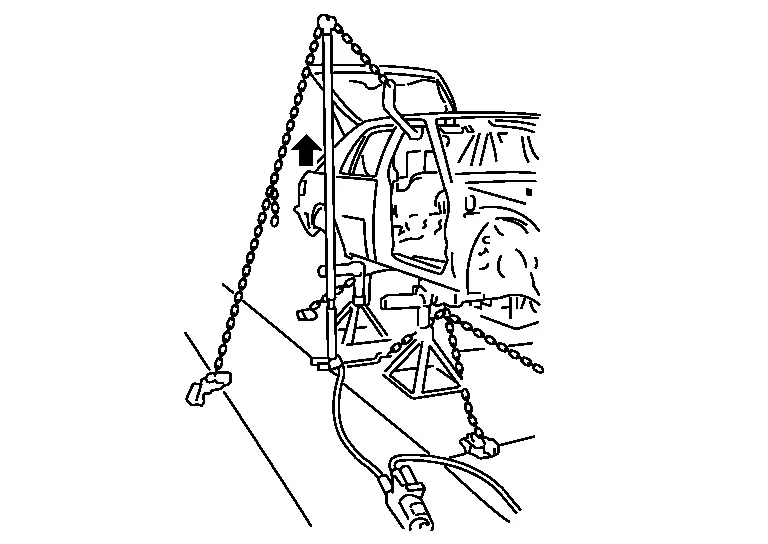

(7) ROOF DAMAGE
Connect an extension tube to the ram.
Positioning it near the vehicle body will result in increased pulling length.
Securing the Vehicle
To prevent the movement of vehicle, use a suitable method that can resist the pulling force required for repair.
(1) ANCHORING POINT
For passenger vehicle
CAUTION:
Choose the foundation of a rigi ...
