Nissan Armada 2025-2026 Service and Repair Manual: SONAR SENSOR (REAR) : Exploded View

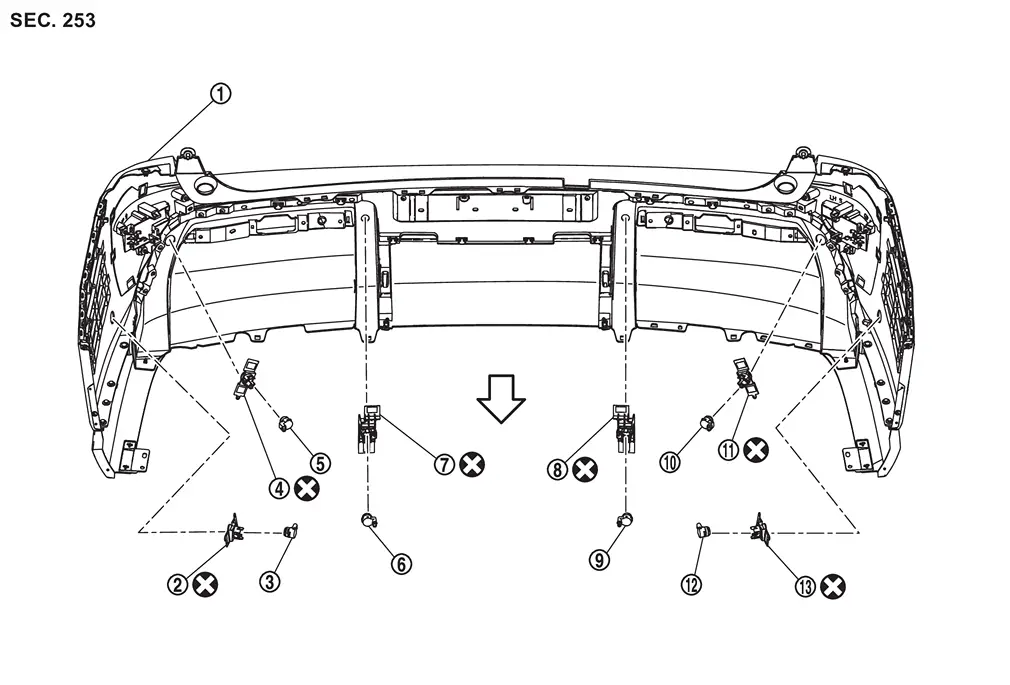

WITHOUT WELDING TYPE
 | Rear bumper fascia |  | Side sensor rear RH holder |  | Side sensor rear RH |
 | Corner sensor rear RH holder |  | Corner sensor rear RH |  | Center sensor rear RH |
 | Center sensor rear RH holder |  | Center sensor rear LH holder |  | Center sensor rear LH |
 | Corner sensor rear LH |  | Corner sensor rear LH holder |  | Side sensor rear LH |
 | Side sensor rear LH holder | ||||
 | :Always replace after every disassembly. | ||||
 | Vehicle front | ||||

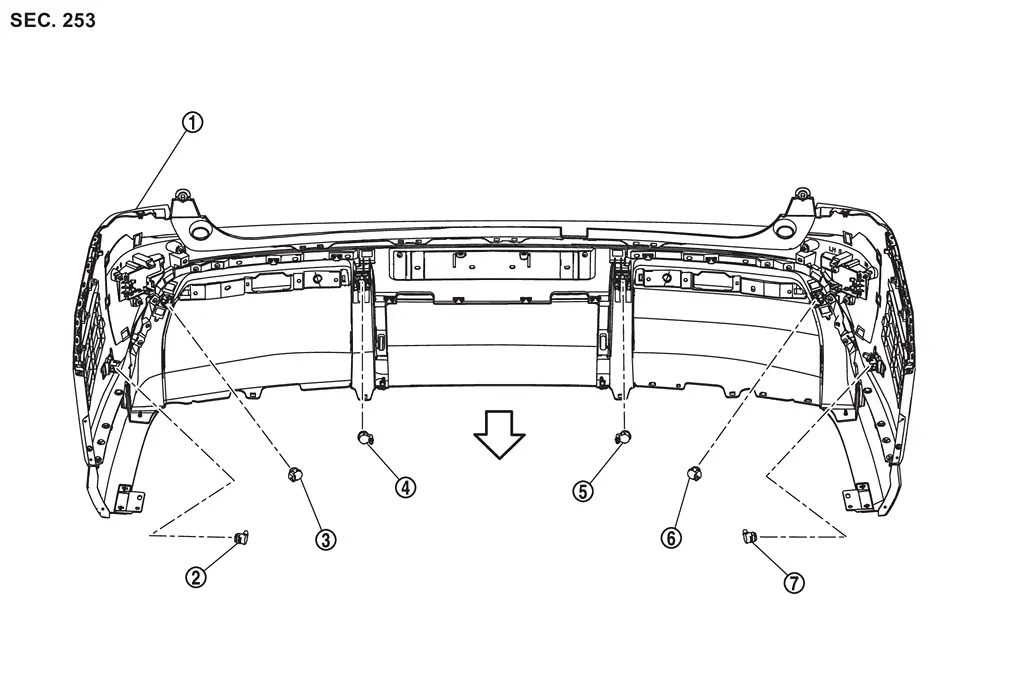

WITH WELDING TYPE
| Rear bumper fascia | | Side sensor rear RH | | Corner sensor rear RH |
| Center sensor rear RH | | Center sensor rear LH | | Corner sensor rear LH |
| Side sensor rear LH | ||||
| Vehicle front | ||||
SONAR SENSOR (REAR) : Removal & Installation
WARNING:
REMOVAL
Center sensor
NOTE:
When removing the sensor holder, remove the rear bumper. Refer to Removal and Installation
Remove the sensor holder from the rear bumper fascia. (Without weldin ...
