Nissan Armada 2025-2026 Service and Repair Manual: Twisting

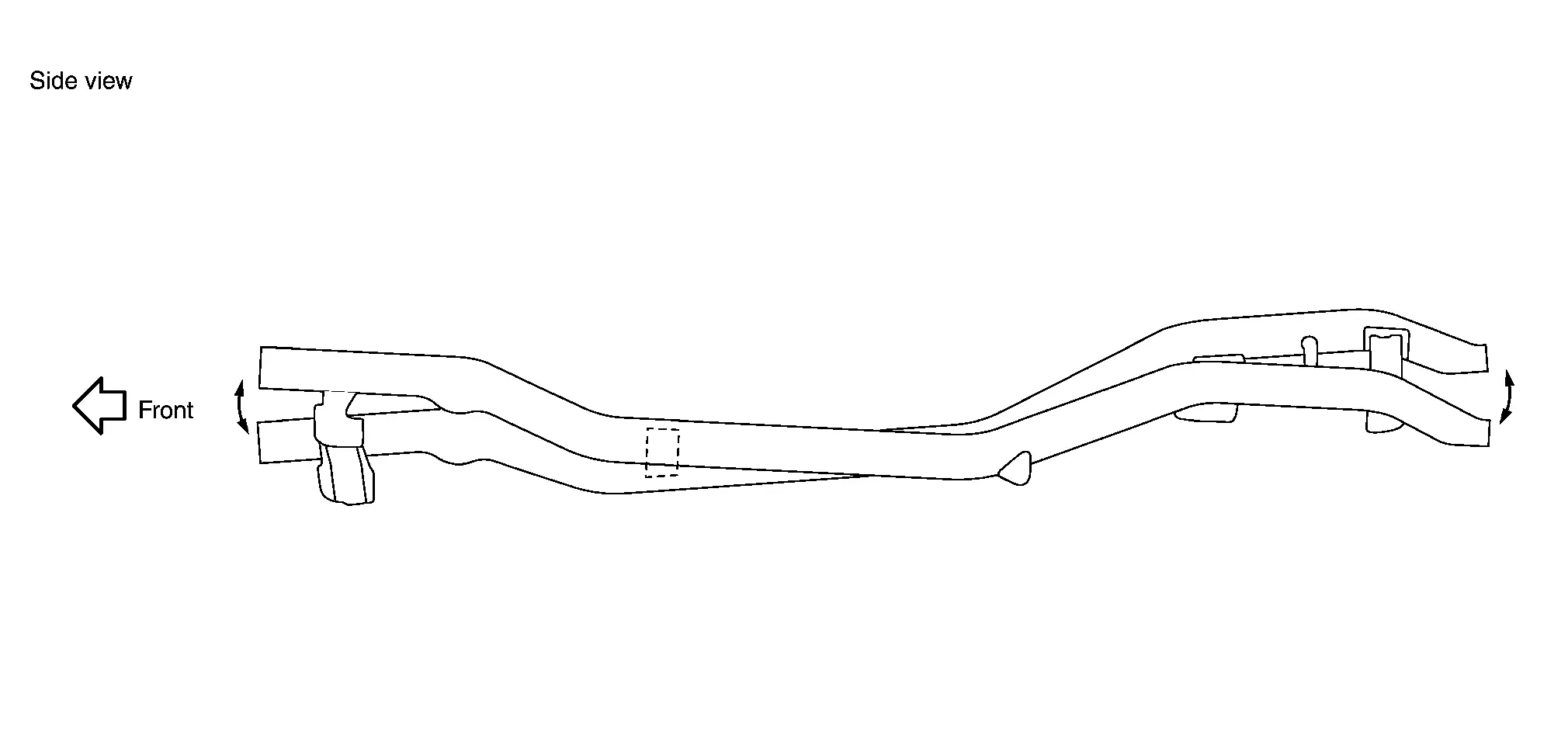

This refers to deformation of side frame-to-crossmember joints due to rollover caused by a collision accident. The right and left frames/members are twisted in the axially opposite direction to each other. In the body alignment dimensions, the height values of the side frame measurement points located ahead of the torsional axis and those behind the torsional axis will largely differ in the laterally opposite direction to each other.
Side-sway
This refers to deviation of the frame centerline due to left or right sway of side frames at the bases of crossmembers, which is caused by a large sidewise impact during a collision. In the body align ...
Diamond
This refers to deformation at the bases of crossmembers due to a parallelism difference between the left and right frames, which is caused by a longitudinal impact upon either frame during a collision ...
