Nissan Armada 2025-2026 Service and Repair Manual: Side-sway

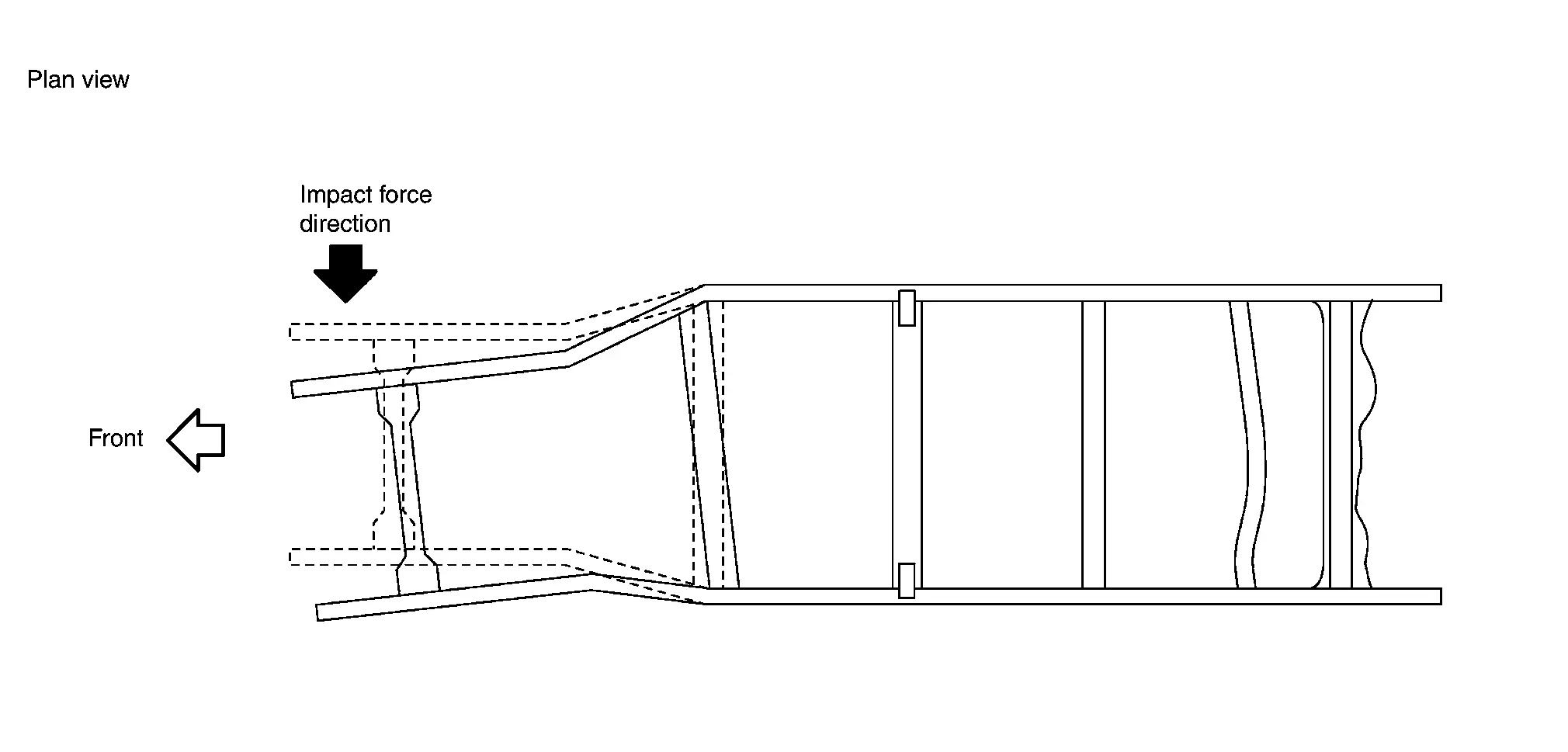

This refers to deviation of the frame centerline due to left or right sway of side frames at the bases of crossmembers, which is caused by a large sidewise impact during a collision. In the body alignment dimensions, sidewise differences in the diagonal dimensions will occur.
Sagging
This refers to upward or downward bending of a side frame due to strong impact from the front or rear that occurs when the vehicle receives a rear-end collision or performs sudden braking with an exce ...
Twisting
This refers to deformation of side frame-to-crossmember joints due to rollover caused by a collision accident. The right and left frames/members are twisted in the axially opposite direction to each o ...
