Nissan Armada 2025-2026 Service and Repair Manual: Diamond

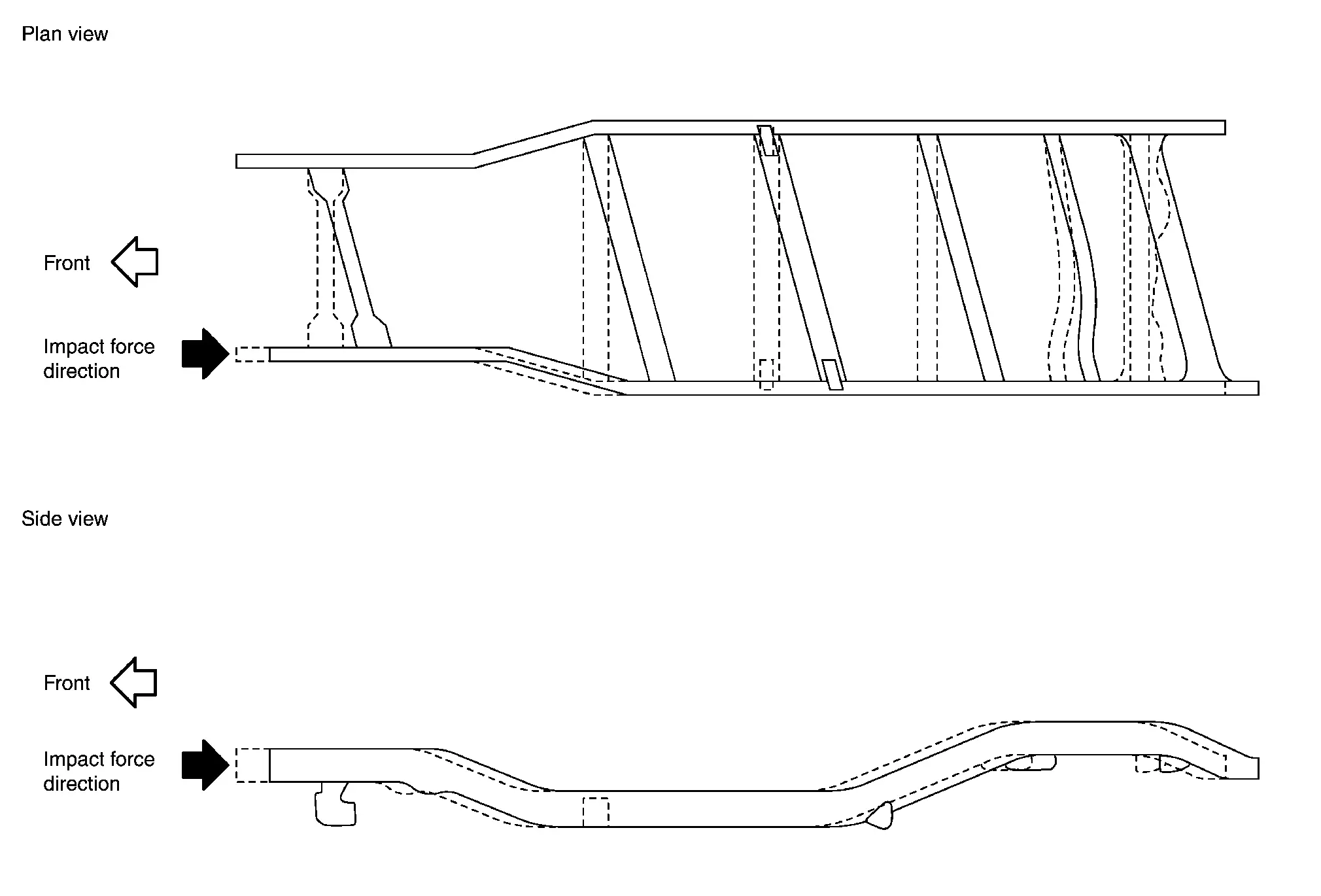

This refers to deformation at the bases of crossmembers due to a parallelism difference between the left and right frames, which is caused by a longitudinal impact upon either frame during a collision. Generally, this results in a typical diamond deformation where the frames are kept almost straight. However, if the side frames have curved structures, the frames often suffer sagging and side-sway as well. In the body alignment dimensions, the overall diagonal dimensions will change due to the parallelism difference.
Twisting
This refers to deformation of side frame-to-crossmember joints due to rollover caused by a collision accident. The right and left frames/members are twisted in the axially opposite direction to each o ...
Buckling
This refers to compound sagging where the side frames are crushed and crimpled resulting in shortened length. It often occurs at the front end of a frame.
...
