Nissan Armada 2025-2026 Service and Repair Manual: Lower Dash
WARNING:
Work after radiator core main support, side radiator core support, hoodledge, and upper dash are removed.

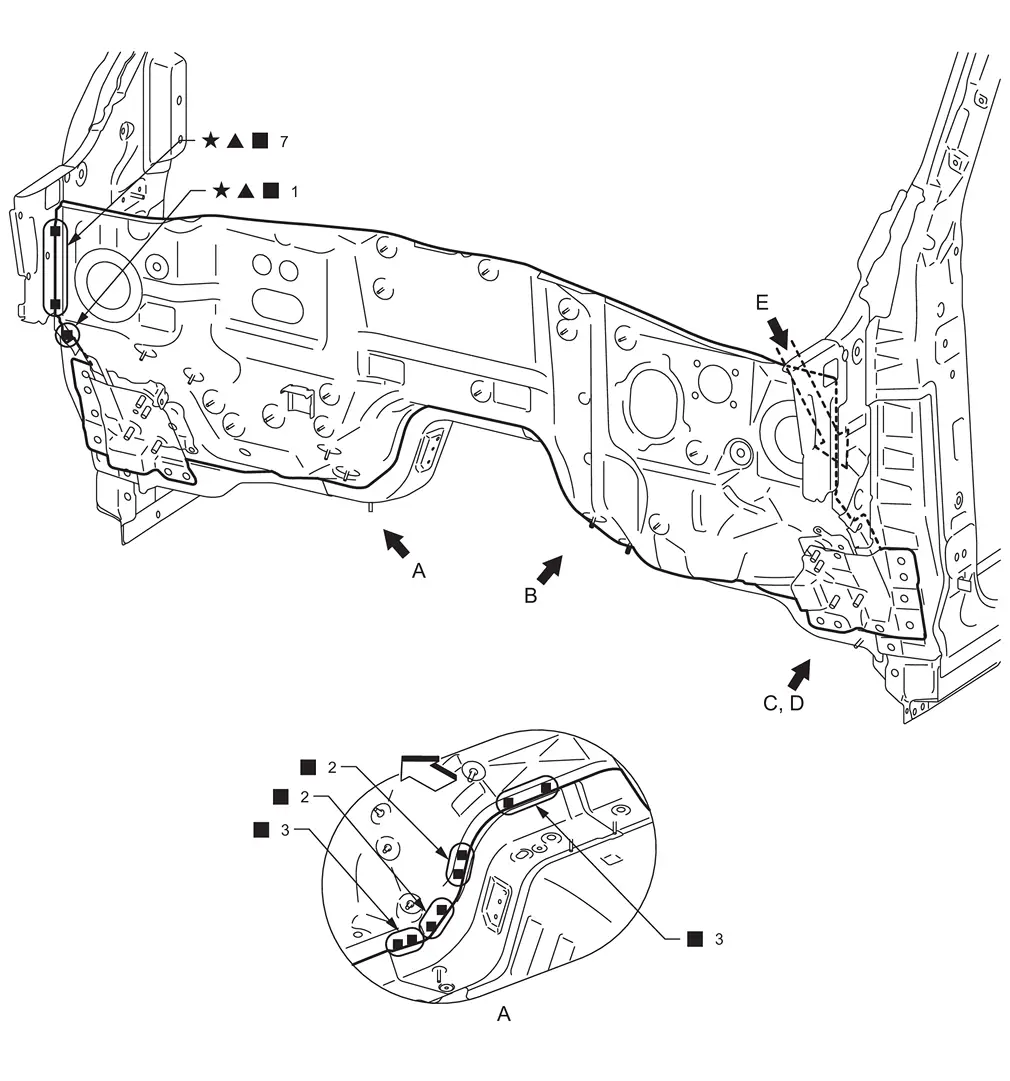

 : Welding method and the number of welding points apply to both sides of the vehicle. | |||||
| Replacement part | |||||
| • | Lower dash complete | • | Lower side dash assembly | ||
: Vehicle front
 | Adhesive | ||||
 : Adhesive portion apply to both sides of the vehicle. | |||||
: Weld the parts onto the back of the component part.

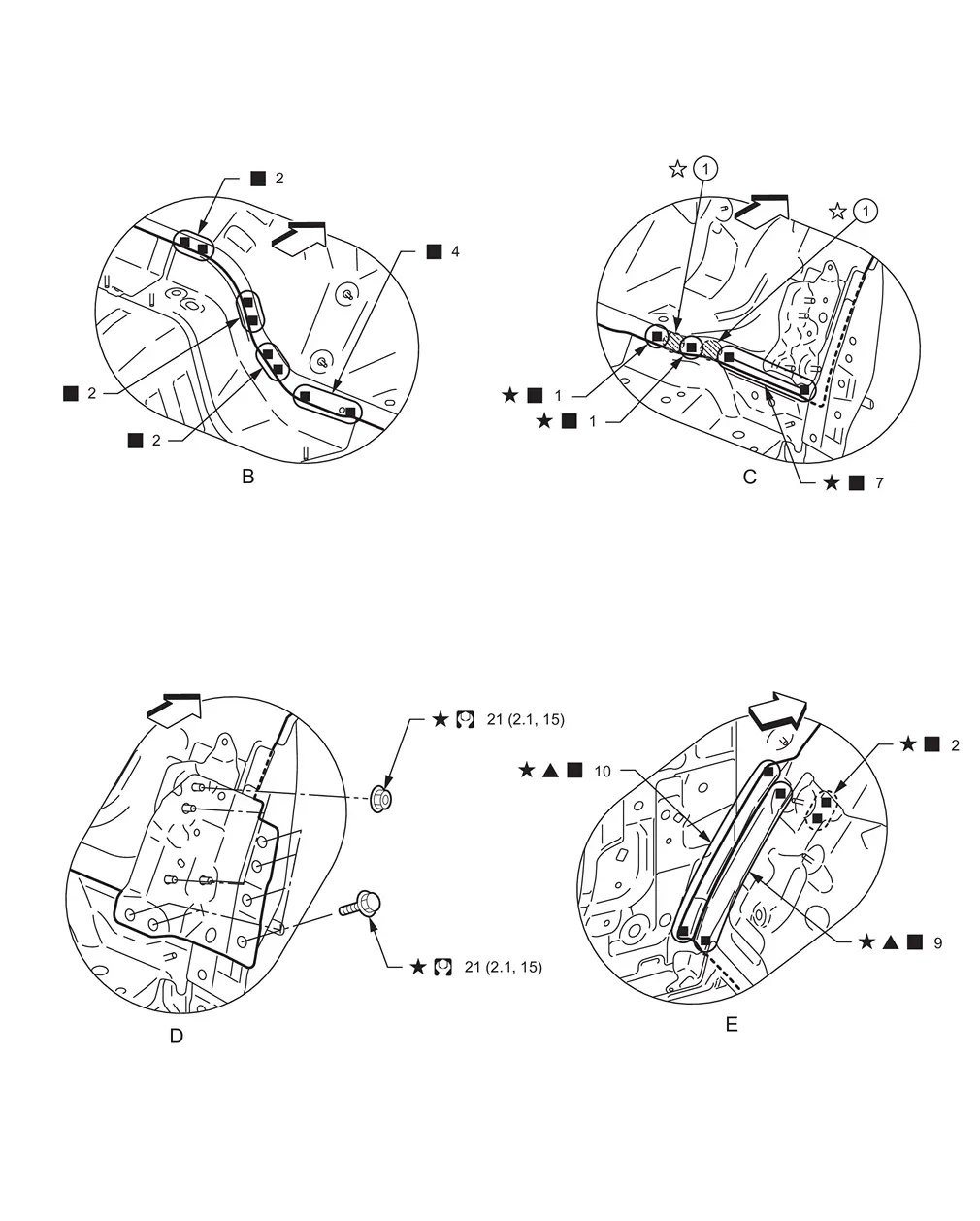

: N•m (kg-m, ft-lb)View C: Before installing lower side dash assembly
