Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

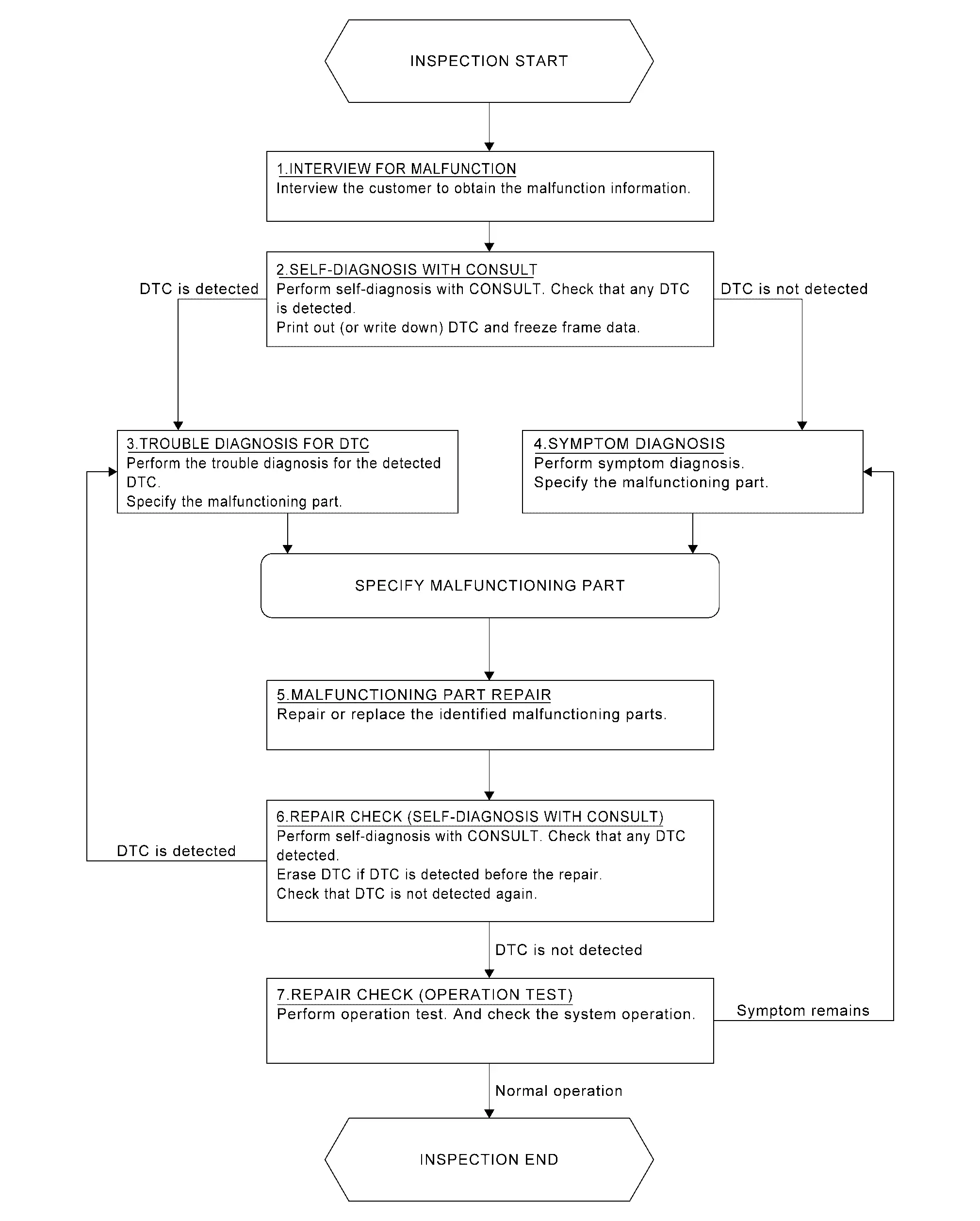

OVERALL SEQUENCE
DETAILED FLOW
INTERVIEW FOR MALFUNCTION
NOTE:
GO TO 2.
SELF-DIAGNOSIS WITH CONSULT
With CONSULT
Perform self-diagnosis of “Wireless charger” using CONSULT. Refer to CONSULT Function.
NOTE:
Skip to step 4 of the diagnosis procedure if “Wireless charger” is not displayed.
Is any DTC detected?
YES>>GO TO 3.
NO>>GO TO 4.
TROUBLE DIAGNOSIS FOR DTC
Check the DTC indicated in the “Self Diagnostic Result”.
When DTC is detected, follow the instructions below:
Record DTC
Freeze Frame Data (FFD)
Perform the relevant diagnosis referring to the DTC Index. Refer to DTC Index.
GO TO 5.
SYMPTOM DIAGNOSIS
>>GO TO 5.
MALFUNCTIONING PART REPAIR
Repair or replace the identified malfunctioning parts.
>>GO TO 6.
REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)
With CONSULT
Erases self-diagnosis results.
Perform self-diagnosis of “Wireless charger” again after repairing or replacing the specific items.
Check if any DTC is detected in self-diagnosis results of “Wireless charger” .
Is any DTC detected?
YES>>GO TO 3.
NO>>GO TO 7.
REPAIR CHECK (OPERATION TEST)
Perform operation test. Check that the malfunction symptom is solved or no other symptoms occur.
Is there a malfunction symptom?
YES>>GO TO 4.
NO>>INSPECTION END
