Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

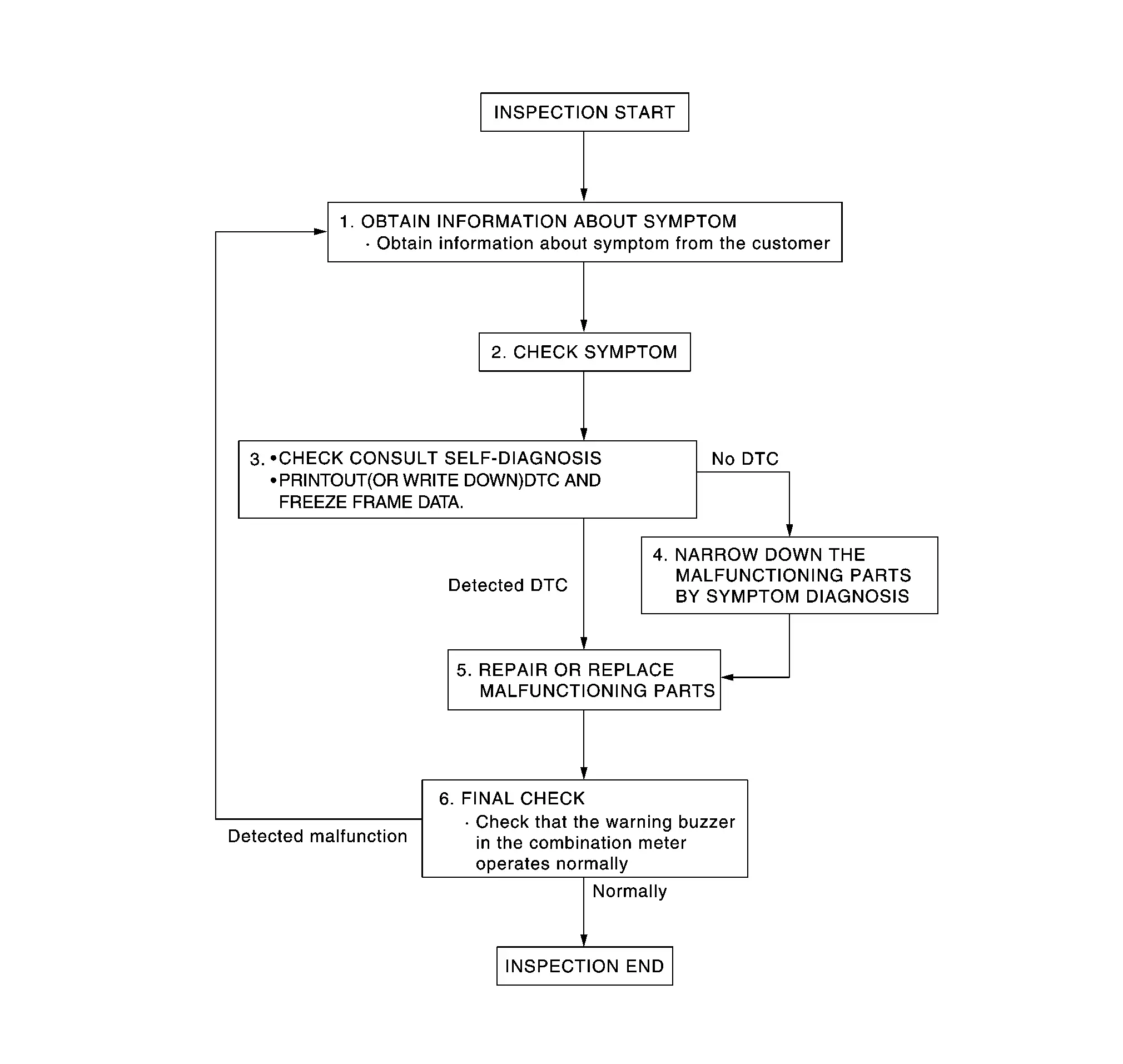

OVERALL SEQUENCE
DETAILED FLOW
OBTAIN INFORMATION ABOUT SYMPTOM
Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.
>>GO TO 2.
CHECK SYMPTOM
Check the symptom based on the information obtained from the customer.
Check if any other malfunctions are present.
GO TO 3.
CHECK CONSULT SELF-DIAGNOSIS RESULTS
Connect CONSULT and perform self-diagnosis. Refer to DTC Index
When DTC is detected, follow the instructions below:
Record DTC and Freeze Frame Data.
Are self-diagnosis results normal?
YES>>GO TO 4.
NO>>GO TO 5.
NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS
Perform symptom diagnosis and narrow down the malfunctioning parts.
>>GO TO 5.
REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.
>>GO TO 6.
FINAL CHECK
Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?
YES>>INSPECTION END
NO>>GO TO 1.
