Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

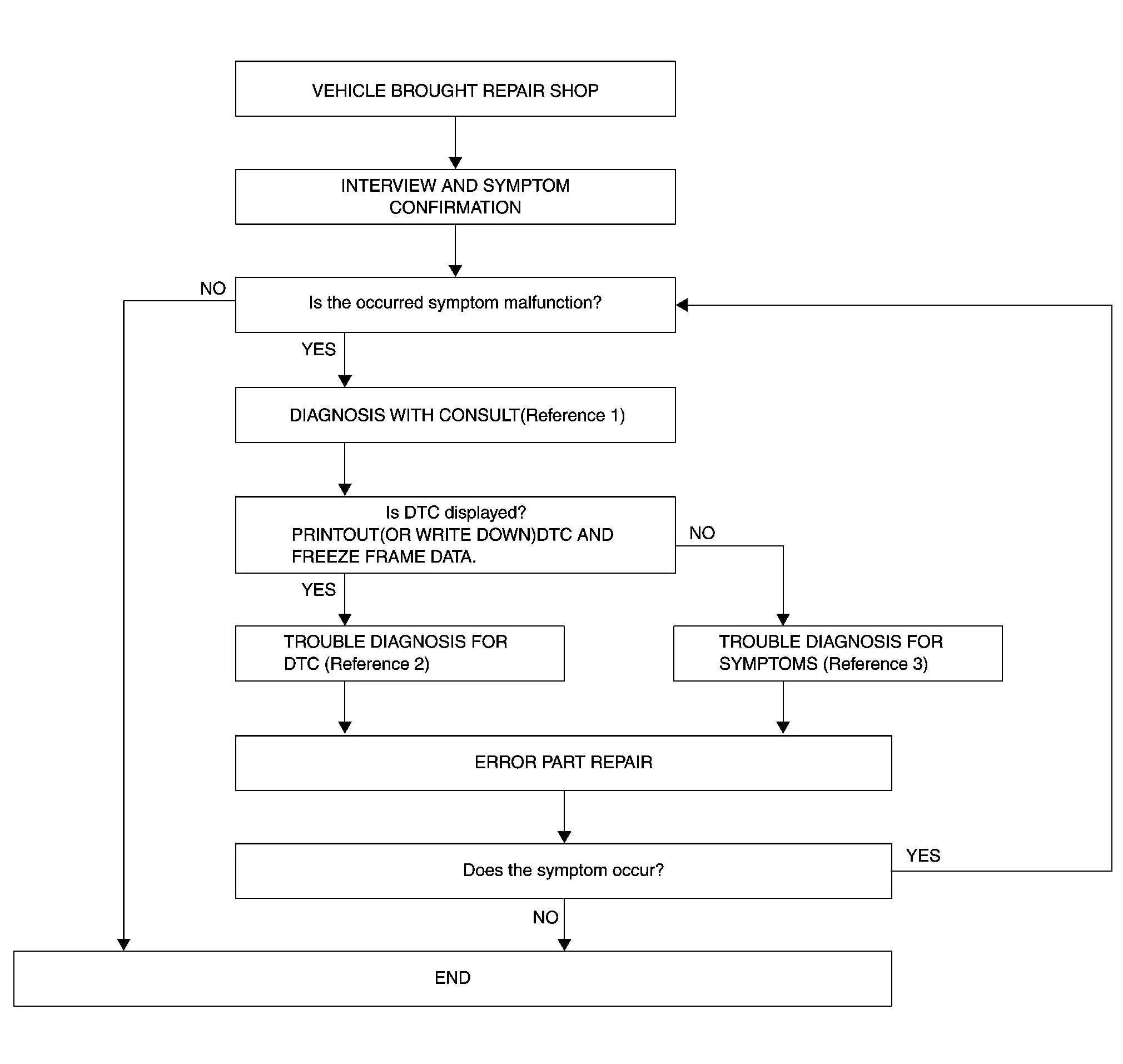

OVERALL SEQUENCE

• Reference 1··· Refer to Consult Function.

• Reference 2··· Refer to DTC Index.

• Reference 3··· Refer to Symptom Table.

DETAILED FLOW

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.

• Check the symptom.

Is the occurred symptom malfunction?

YES>>

GO TO 2.

NO>>

INSPECTION END

DIAGNOSIS WITH CONSULT

With CONSULT

1. Connect CONSULT and perform a self-diagnosis for “IVC”. Refer to Consult Function.

2. When DTC is detected, follow the instructions below:

   • Record DTC and Freeze Frame Data.

Are any DTCs displayed?

YES>>

GO TO 3.

NO>>

GO TO 4.

TROUBLE DIAGNOSIS FOR DTC

1. Check the DTC indicated in the self-diagnosis results.

2. Perform the relevant diagnosis referring to the DTC Index. Refer to DTC Index.

>>

GO TO 4.

PERFORM SYMPTOM DIAGNOSIS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to Symptom Table.

>>

GO TO 5.

ERROR PART REPAIR

With CONSULT

1. Repair or replace the identified malfunctioning parts.

2. Perform a self-diagnosis for “IVC” with CONSULT.

3. Check that the symptom does not occur.

Does the symptom occur?

YES>>

GO TO 1.

NO>>

INSPECTION END
