Nissan Armada 2025-2026 Service and Repair Manual: Center Pillar
WARNING:

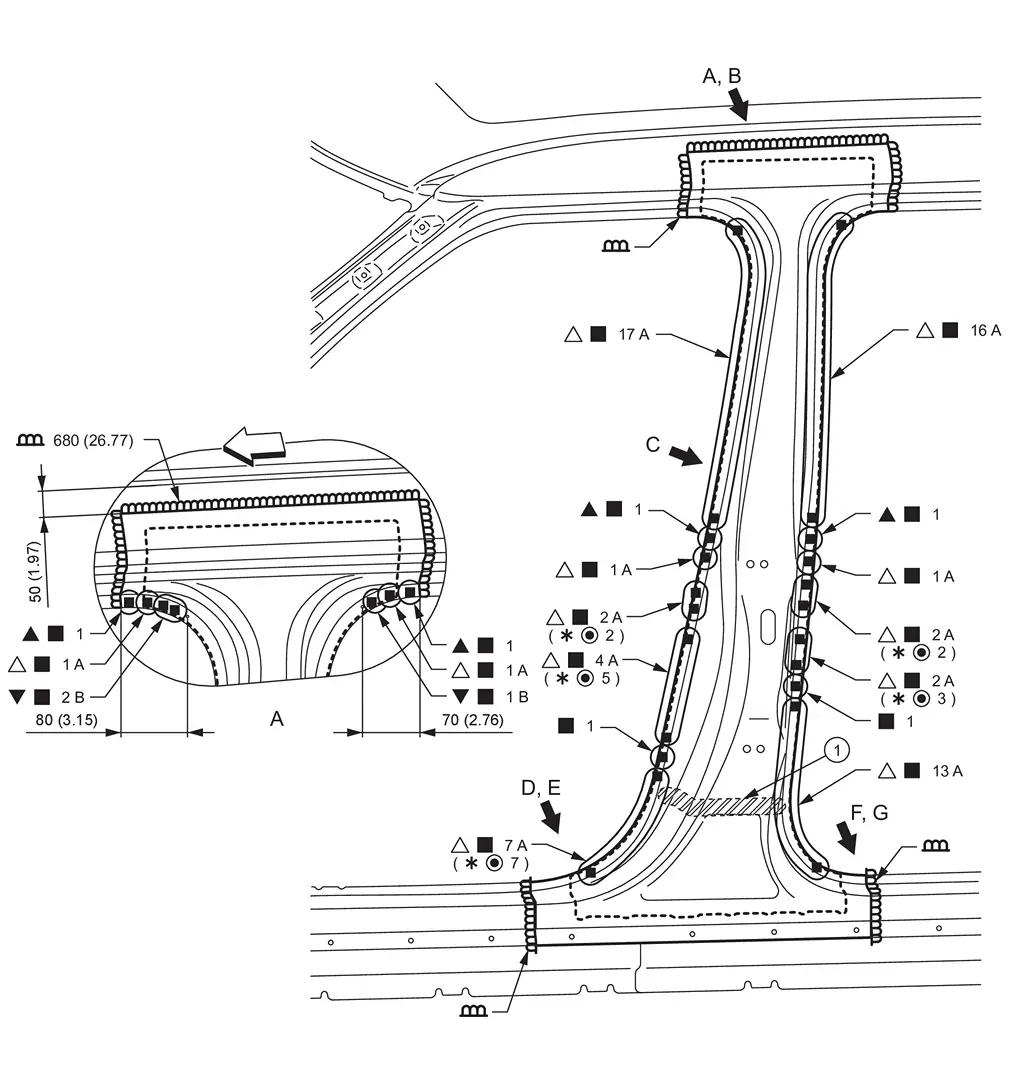

 | Urethane foam | ||||
| Unit: mm (in) | |||||
| |||||
| Replacement part | |||||
| • | Outer front side body | • | Lower center pillar brace | ||
: Vehicle front
| Urethane foam | ||||
| Unit: mm (in) | |||||
| |||||

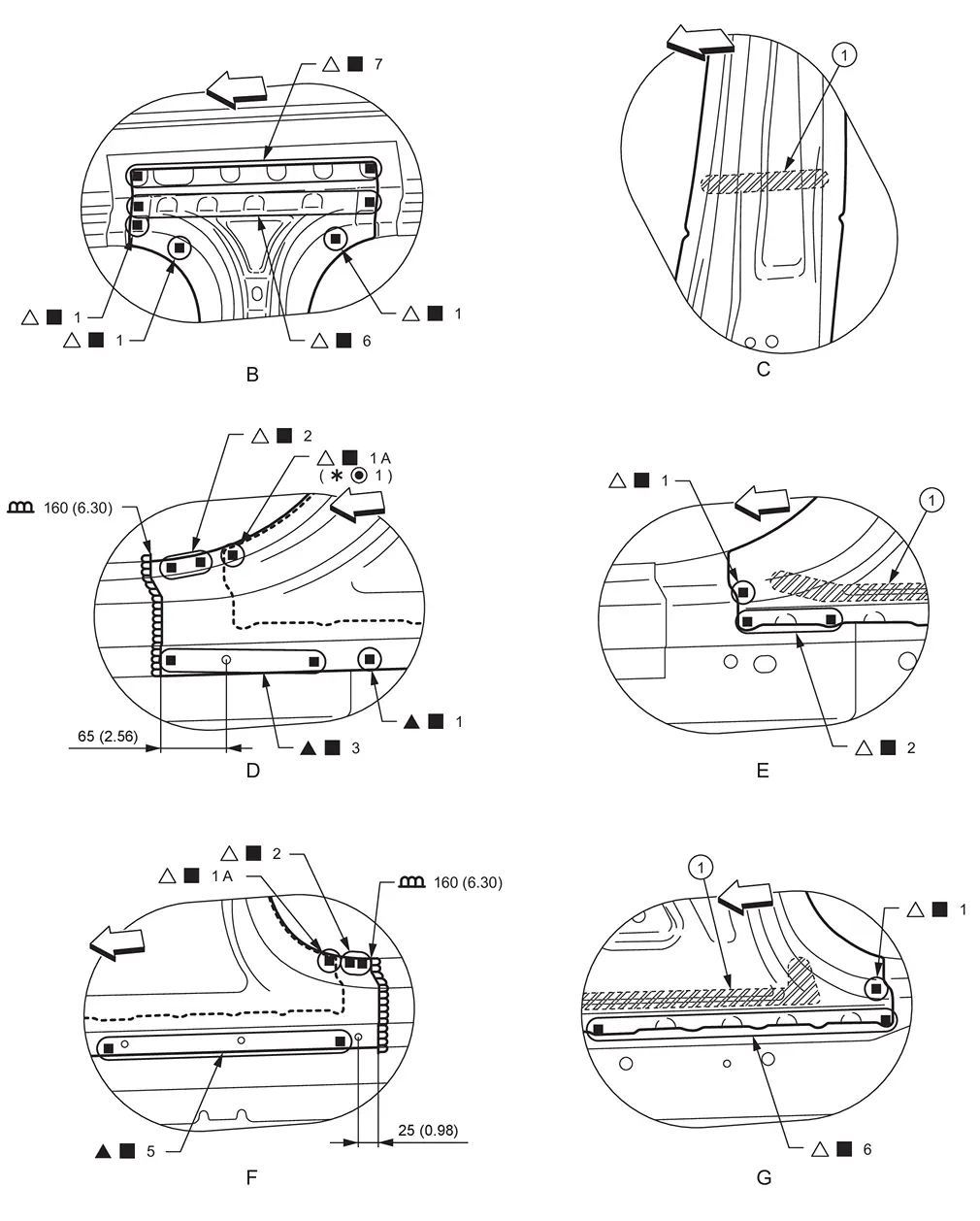

View B, C, E, and G: Before installing outer front side body
Lower Dash
WARNING:
Work after radiator core main support, side radiator core support, hoodledge, and upper dash are removed.
: Vehicle front
: Welding method and the number of welding points apply to both side ...
Side Body
WARNING:
Work after hoodledge reinforcement and roof are removed.
Remove the lower side dash assembly (reusable) from the vehicle for easier installation.
Urethane foam : Weld the parts onto the bac ...
