Nissan Armada 2025-2026 Service and Repair Manual: Confirmation of The Panel
It is not possible to correct all convex/concave portions in paintless dent repair.
Whether or not the parts need to be removed/installed, and tools that can be inserted must be checked for each repair location.

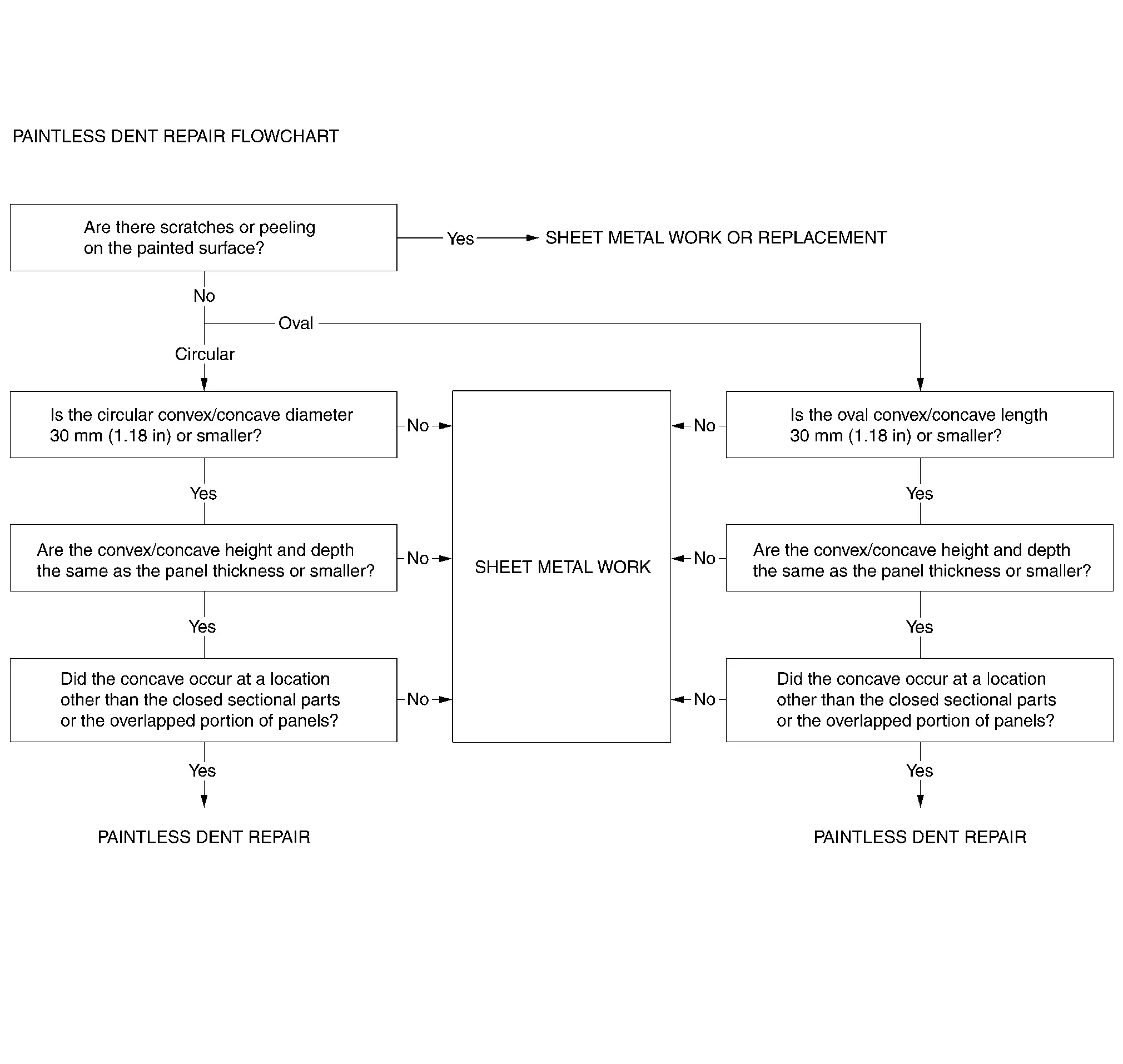

When checking the convex/concave location, determine whether or not the paintless dent repair is possible. It is also important to determine the most suitable repair method.

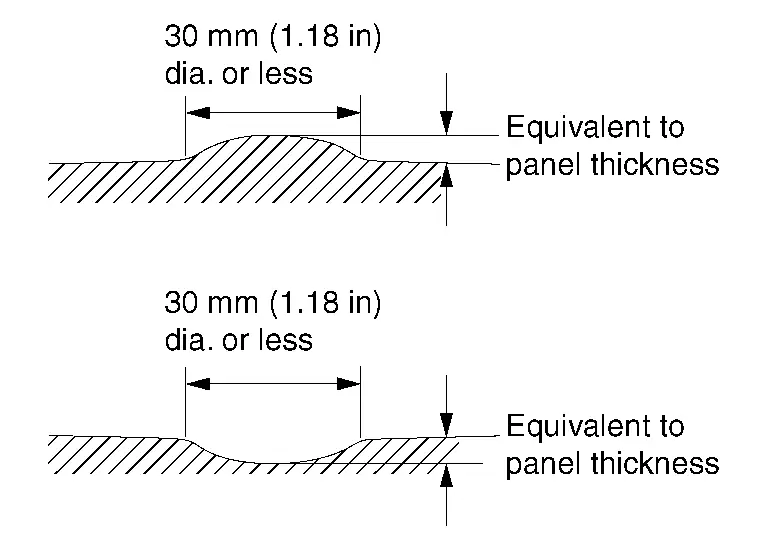

| Example of circular convex/concave | Example of oval convex/concave |
|---|---|
|
|
