Nissan Armada 2025-2026 Service and Repair Manual: Diagnosis Procedure
PERFORM THE SELF-DIAGNOSIS
With CONSULT
Perform self-diagnosis for “ABS”.
Is DTC detected?
YES>>Check the DTC. Refer to DTC Index.
NO>>GO TO 2.
CHECK REAR DISC BRAKE DRAG
Check if the rear disc brake is dragging. Refer to Inspection and Adjustment.
Is the rear disc brake dragging?
YES>>Check the rear disc brake system. Refer to Inspection.
NO>>GO TO 3.
DISCONNECT PARKING BRAKE ACTUATOR HARNESS CONNECTOR
Disconnecting the 12V battery negative terminal.

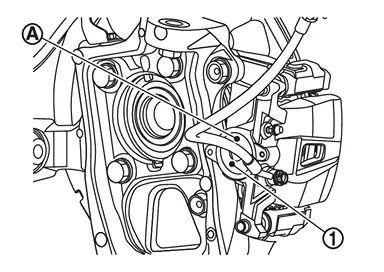

Disconnect parking brake actuator harness connector
from rear brake caliper assembly
.
GO TO 4.
REMOVE PARKING BRAKE ACTUATOR

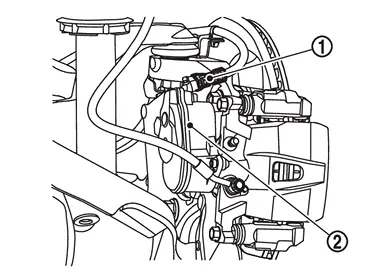

Remove parking brake actuator from rear brake caliper assembly .
GO TO 5.
RELEASE OF PARKING BRAKE

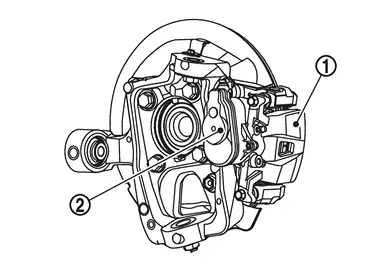

Rotate the rear brake caliper assembly spindle part
clockwise.
Is the parking brake released?
YES>>GO TO 6.
NO>>Check the rear brake caliper assembly. Refer to Inspection.
REPLACE REAR BRAKE CALIPER ASSEMBLY
Replace the rear brake caliper assembly. Refer to Removal and Installation.
CAUTION:
Never reuse the parking brake actuator.
>>End of work.
Parking Brake Does Not Release
When the electric parking brake cannot be released by the parking brake switch or automatically releasing, following procedure can be released.
CAUTION:
Never reuse the parking brake actuator.
When re ...
Parking Brake Does Not Operate
The parking brake is not applied even when the parking brake switch is pulled. ...
