Nissan Armada 2025-2026 Service and Repair Manual: Draining
WARNING:
WARNING:
To avoid being scalded, never change engine coolant when the engine is hot.
Wrap a thick cloth around reservoir tank cap and carefully remove reservoir tank cap.
First, turn reservoir tank cap a quarter of a turn to release built up pressure. Then turn reservoir tank cap all the way.
Never spill engine coolant on drive belt.
Connect drain hose.
NOTE:
Use a general-purpose hose with the dimensions shown in the figure.
| A | : φ 5.5 – 6.0 mm (0.217 - 0.236 in) |
| B | : 600 mm (23.62 in) or more |

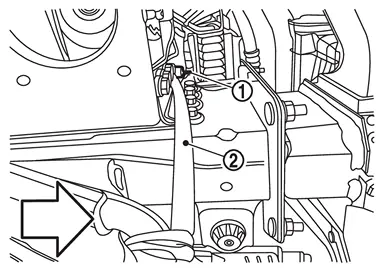

Open radiator drain cock
at the bottom of radiator, and then remove radiator cap and reservoir tank cap.
 | : Drain hose |
 | : Vehicle front |
When draining all of engine coolant in the system, open water drain plugs on cylinder block. Refer to Setting.
Remove reservoir tank if necessary, and drain engine coolant and clean reservoir tank before installing.
Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to ENGINE COOLANT : Flushing.
Disconnect drain hose.
Inspection
LEVEL
Check if the reservoir tank engine coolant level is within the “MIN” to “MAX” when the engine is cool.
: MAX : MIN
Adjust the engine coolant level if necessary.
WARNING:
Never remov ...
Refilling
WARNING:
REFILLING (FOR COOLANT REFILL TOOL)
WARNING:
CAUTION:
Check the tightening condition of hose clamp, drain plug, and others.
Do not start engine when reservoir tank does not contain engine coo ...
