Nissan Armada 2025-2026 Service and Repair Manual: Refilling

WARNING:

REFILLING (FOR COOLANT REFILL TOOL)

WARNING:

CAUTION:

• Check the tightening condition of hose clamp, drain plug, and others.

• Do not start engine when reservoir tank does not contain engine coolant.

Close drain plug.

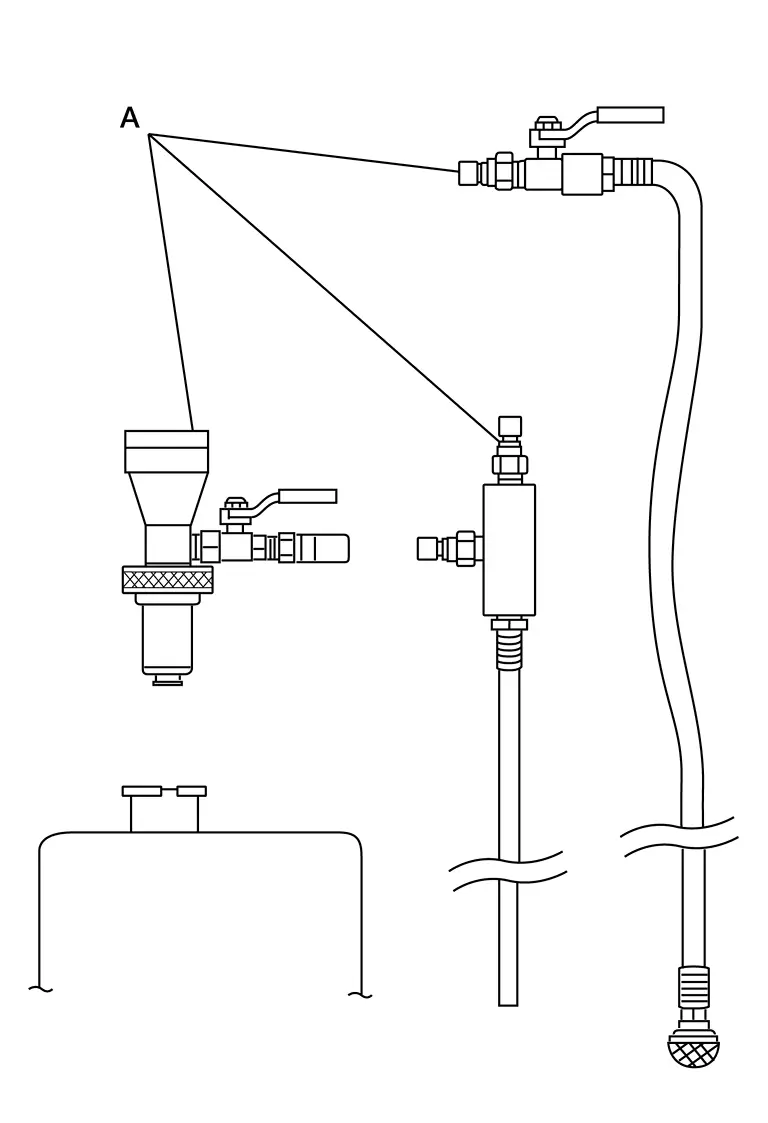

Set the coolant refill tool ［SST:KV991J0070(NI-45695-A)］ to the reservoir tank.

Set vacuum water injection machine [commercial tool: capable negative pressure is 90 kPa (675 mmHg, 27 inHg) or more] to the reservoir tank.

Perform water injection according to each instruction manual.

Confirm that the value of the vacuum gauge is about 96 kPa (720 mmHg, 28 inHg) and start the refilling of engine coolant

CAUTION:

Internal pressure applied to the radiator when water is injected must be 196kPa (1470 mmHg, 58 inHg) or less.

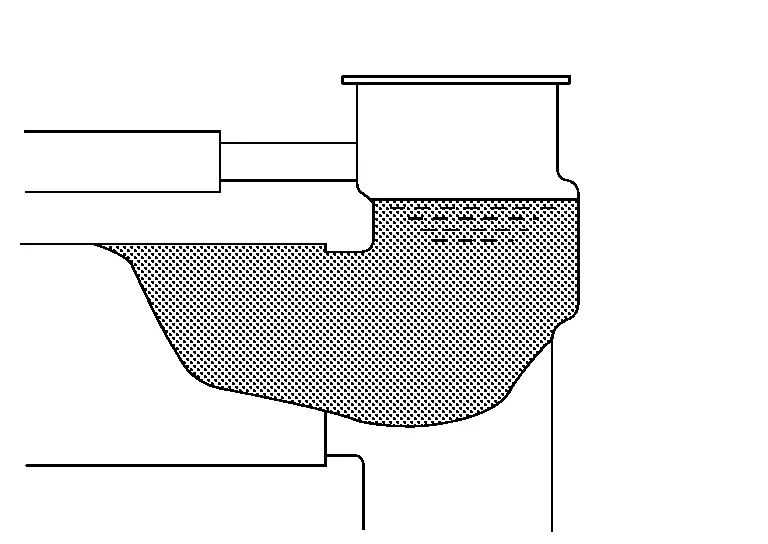

Refill engine coolant up to radiator to specified level.

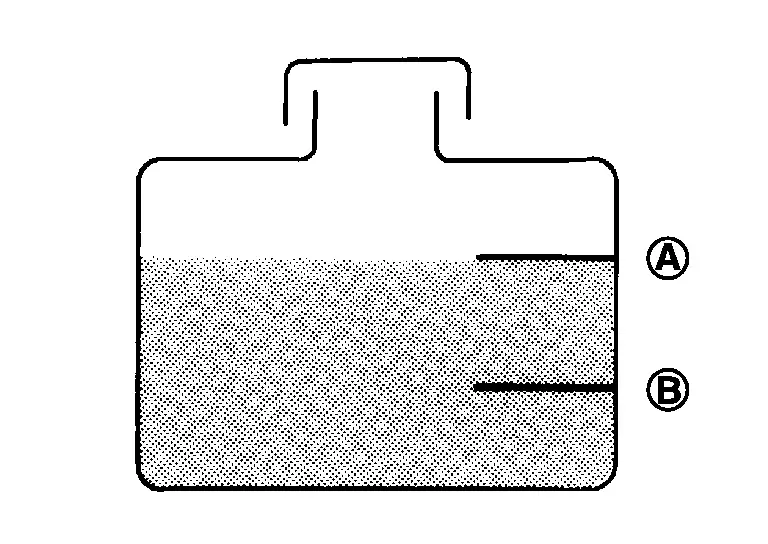

Refill engine coolant up to "MAX" line level of reservoir tank and tighten the cap.

	: MAX
	: MIN

Start the engine and warm it up.

CAUTION:

Watch water temperature gauge so as not to overheat engine.

Stop the engine and cool down.

If necessary, refill radiator up to filler neck with engine coolant.

CAUTION:

Never adhere the engine coolant to electronic equipments (alternator etc.).

Refill reservoir tank to “MAX” level line with engine coolant.

	: MAX
	: MIN

CAUTION:

Never adhere the engine coolant to electronic equipments (alternator etc.).

REFILLING(EXCEPT FOR COOLANT REFILL TOOL)

WARNING:

CAUTION:

• Check the tightening condition of hose clamp, drain plug, and others.

• Do not start engine when reservoir tank does not contain engine coolant.

Close drain plug.

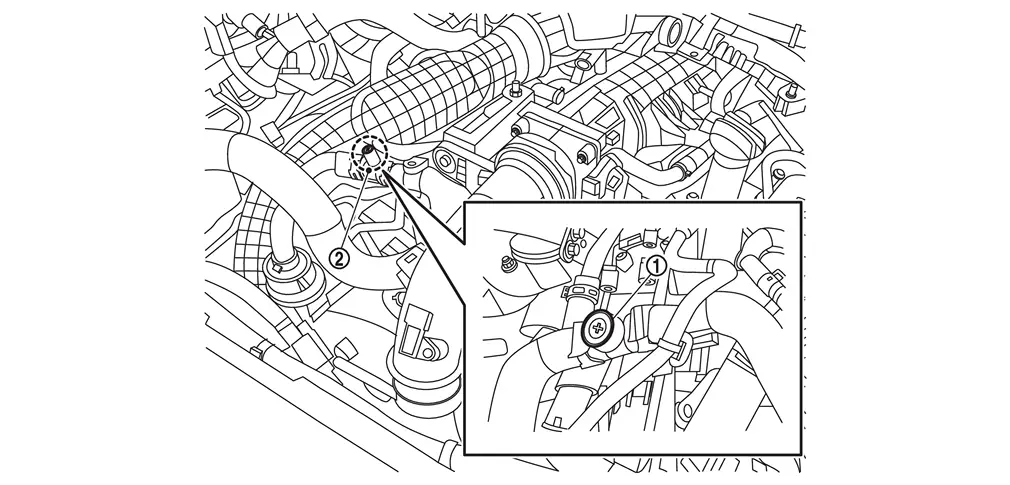

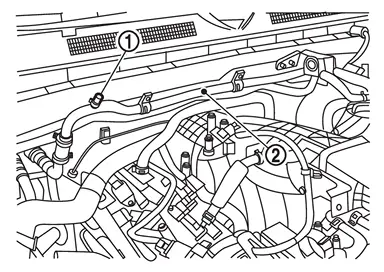

Remove cap of the front heater outlet pipe assembly .

Remove drain plug of the connector .

Pour engine coolant from the part of the radiator pipe assembly.

When the engine coolant comes out from the part of the connector , stop water injection.

Pour coolant slowly in to the reservoir tank at of less than 3 ℓ (3-1/8 US qt, 2-5/8 lmp qt) a minute to allow air in system to escape.

Engine coolant capacity	Refer to ENGINE COOLANT : Service Data.
(With reservoir tank at “MAX” level)

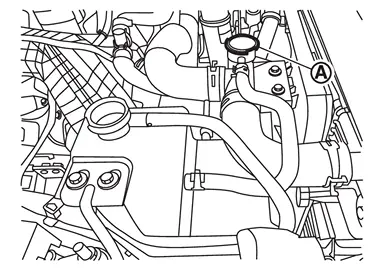

Install reservoir tank cap.

Pour coolant slowly in to the radiator pipe assembly at of less than 3 ℓ (3-1/8 US qt, 2-5/8 lmp qt) a minute to allow air in system to escape.

Install radiator cap.

Install cap of the front heater outlet pipe assembly .

Warm up engine until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3,000 rpm.

• Check thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.

CAUTION:

Watch water temperature gauge so as not to overheat engine.

Stop the engine and cool down to less than approximately 50°C (122°F).

• Cool down using fan to reduce the time.

• Check the engine coolant level. If the level is low, refill with reservoir tank to “MAX” level line with engine coolant and repeat the steps from Step 11.



  	: MAX
  	: MIN

  CAUTION:

  Never adhere the engine coolant to electronic equipments (alternator etc.).

Check flow noise, according to the following steps.

CAUTION:

To check flow noise, turn OFF the radio and close the windows, doors, and the hood.

Allow the engine to become cold [approximately 50°C (122°F) or less]. Start the engine, maintain 1000 rpm for approximately 30 seconds, and increase the engine speed from 1000 to 3000 rpm. Repeat this cycle three times. Check that flow noise can be heard from the heater core during the Step b operation. If flow noise can be heard, repeat from Step 11 of Refilling to Step c of Flow Noise Verification Method. Check that the reservoir tank cap is tightened.
