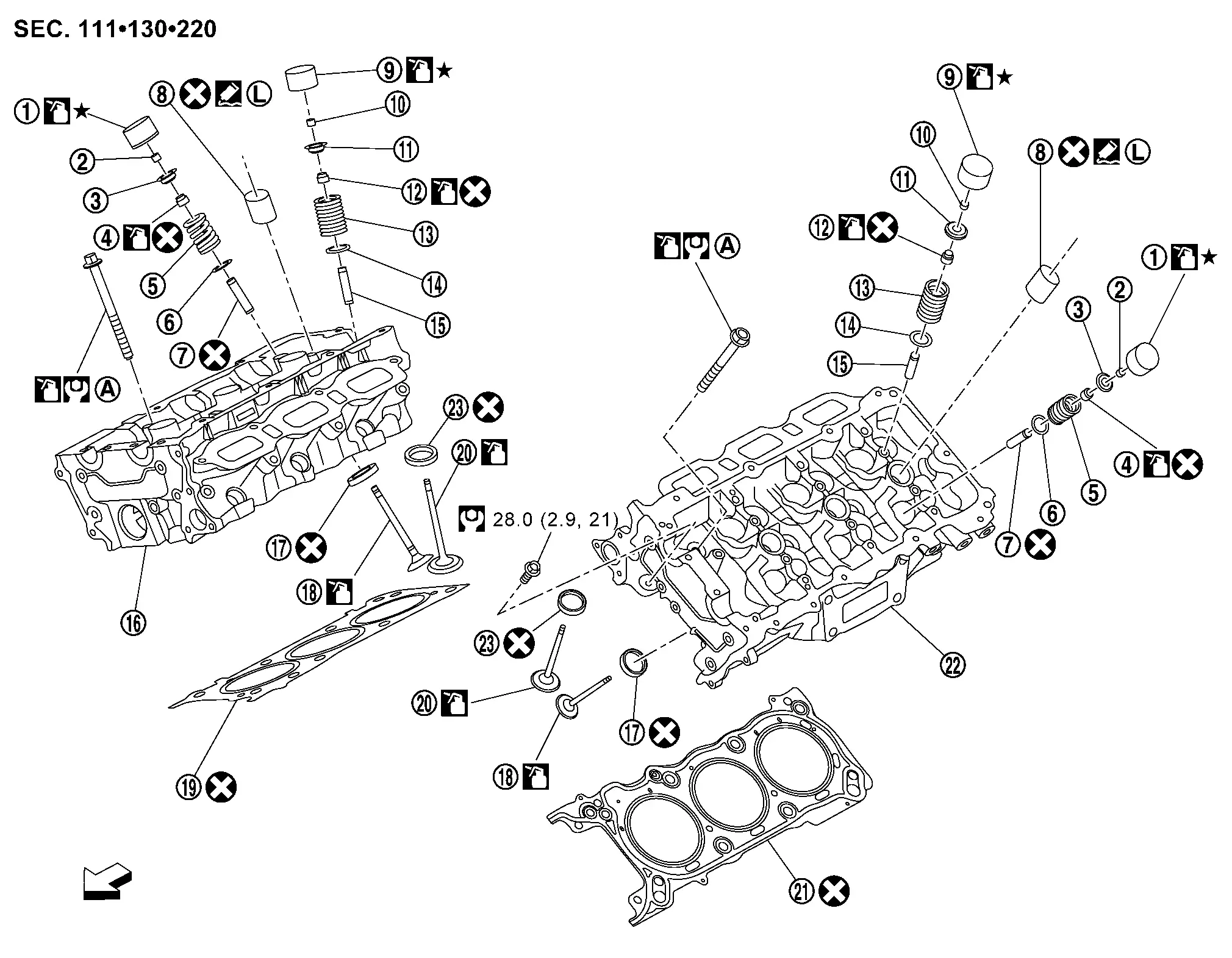

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Valve lifter (EXH) |  | Valve collet (EXH) |  | Valve spring retainer (EXH) |
 | Valve oil seal (EXH) |  | Valve spring (EXH) |  | Valve spring seat (EXH) |
 | Valve guide (EXH) |  | Spark plug tube |  | Valve lifter (INT) |
 | Valve collet (INT) |  | Valve spring retainer (INT) |  | Valve oil seal (INT) |
 | Valve spring (INT) |  | Valve spring seat (INT) |  | Valve guide (INT) |
 | Cylinder head (bank 1) |  | Valve seat (EXH) |  | Valve (EXH) |
 | Cylinder head gasket (bank 1) |  | Valve (INT) |  | Cylinder head gasket (bank 2) |
 | Cylinder head (bank 2) |  | Valve seat (INT) | ||
 | Comply with the assembly procedure when tightening. Refer to Removal & Installation. | ||||
 | : Engine front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
  : Sealing point with locking sealant. | |||||
 | : Select with proper thickness. | ||||
Cylinder Head
...
Removal & Installation
WARNING:
DISASSEMBLY
Remove the following parts:
Intake manifold: Refer to Removal and Installation.
Spark plug: Refer to Removal & Installation.
Rocker cover: Refer to Removal and Installation.
...
