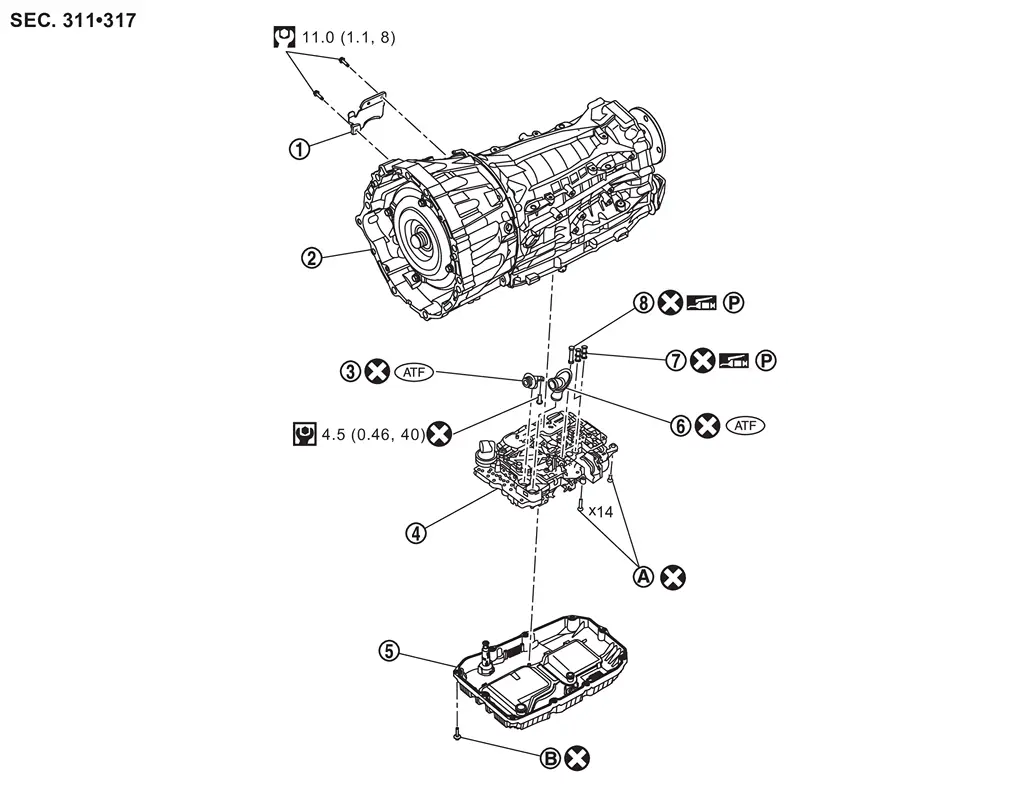

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Heat shield |  | A/T assembly |  | Joint tube |
 | Control valve & TCM |  | Oil pan |  | Joint tube |
 | Joint tube |  | Tube | ||
 | Refer to Removal and Installation. |  | Refer to Removal and Installation. | ||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Apply ATF | ||||
 | : Apply petroleum jelly. | ||||
Removal and Installation
WARNING:
REMOVAL
Remove oil pan. Refer to Removal and Installation.
Remove heat shield mounting bolts () and heat shield .
Disconnect harness connector from control valve & TCM.
NOTE:
Rotate ...
