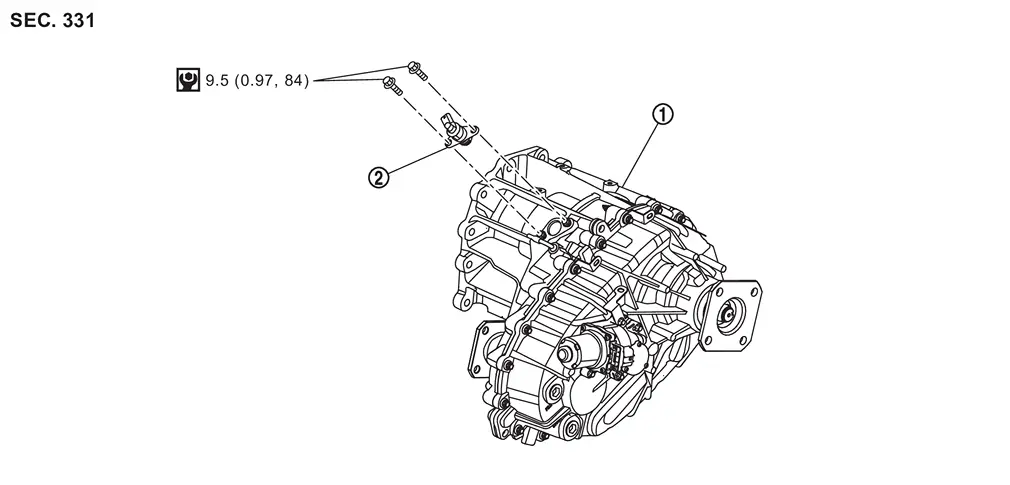

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Transfer Cam Position Sensor

...

Removal and Installation

WARNING: REMOVAL Ignition switch OFF. CAUTION: Wait for 60 seconds after the ignition switch OFF. Disconnect negative battery terminal. Refer to Removal and Installation. Disconnect the transfer cam ...
