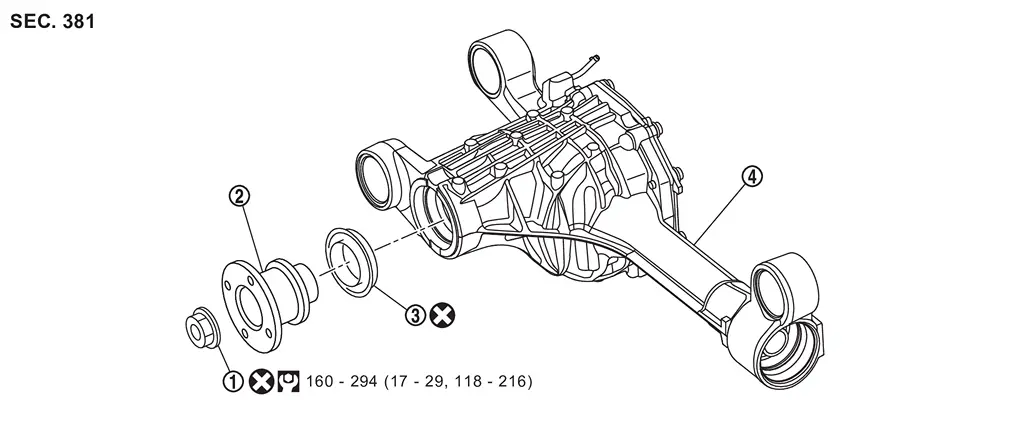

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Drive pinion lock nut |  | Companion flange |  | Front oil seal |
 | Front final drive assembly | ||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
Front Oil Seal
...
Removal and Installation
WARNING:
REMOVAL
CAUTION:
Verify identification stamp of replacement frequency put in the lower part of gear carrier to determine replacement for collapsible spacer when replacing front oil seal. Refe ...
