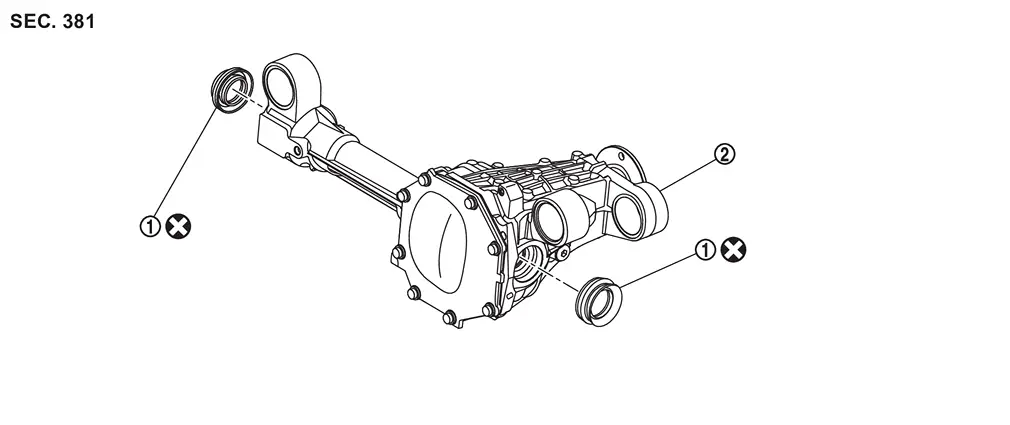

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Side Oil Seal

...

Removal and Installation

WARNING: REMOVAL Drain gear oil. Refer to Draining. Remove both front drive shafts from front final drive assembly. Refer to Removal and Installation. Remove side oil seal, using oil seal remover (A) ...
