Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Drain gear oil. Refer to Draining.
Remove both front drive shafts from front final drive assembly. Refer to Removal and Installation.

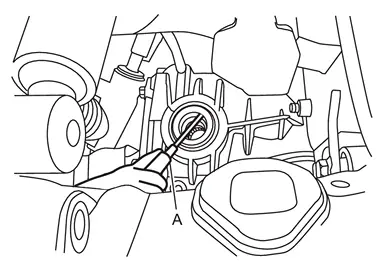

Remove side oil seal, using oil seal remover (A) (commercial service tool).
CAUTION:
Never damage gear carrier.
INSTALLATION

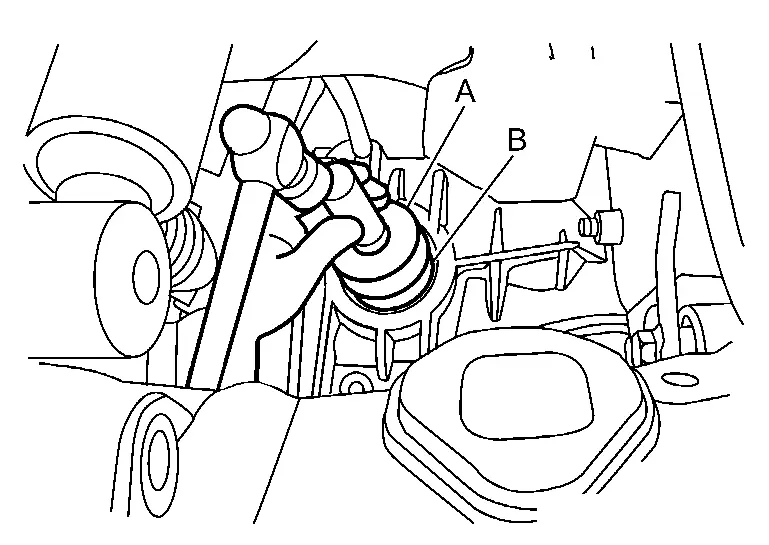

Using the drifts (A and B), drive side oil seal until it becomes flush with the gear carrier end.
| A | : Drift [SST: ST30720000 (NI-25405)] |
| B | : Drift [SST: ST27863000 ( — )] |
NOTE:
For left side, use drift [SST: ST30720000 (NI-25405)] only.
CAUTION:
Never reuse oil seal.
When installing, never incline oil seal.
Check that the oil seal lip is filled up with grease.
Install both front drive shafts. Refer to Removal and Installation.
Refill gear oil to the final drive. Refer to Refilling.
Perform inspection after installation. Refer to Inspection.
Exploded View
Side oil seal Front final drive assembly : Always replace after every disassembly. ...
Inspection
INSPECTION AFTER INSTALLATION
Check oil level and final drive for oil leakage. Refer to Inspection. ...
