Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Drain gear oil. Refer to Draining.
Remove rear propeller shaft from final drive. Refer to Removal and Installation.
Remove drive shafts. Refer to Removal and Installation.
Remove rear supension member stay. Refer to Removal and Installation.
Remove breather hose from rear final drive assembly. Refer to Removal and Installation.
Disconnect differential lock position switch harness connector and differential lock solenoid harness connector.
Set a suitable jack to rear final drive assembly.
CAUTION:
Never place a jack under the rear cover.

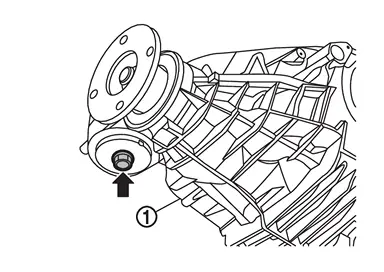

Remove rear final drive assembly mounting nuts (
) from final drive mounting bracket
.

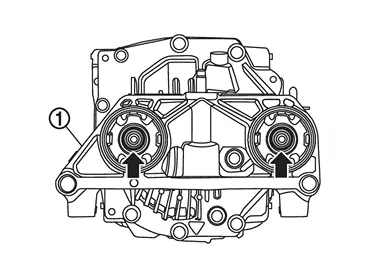

Remove rear final drive assembly mounting bolt (
) and remove rear final drive assembly .
CAUTION:
Secure rear final drive assembly to a suitable jack while removing it.
Remove upper stopper, lower stopper, and washer.
Remove final drive mounting bracket mounting bolts and nuts (
).
Remove final drive mounting bracket mounting bolt (
) and remove final drive mounting bracket .
Remove bracket from rear final drive assembly. (if necessary).
INSTALLATION
Note the following, and install in the reverse order of removal.
For non-reusable parts, refer to Exploded View.
For each tightening torque, refer to Exploded View.
Perform inspection after installation. Refer to Inspection.
Exploded View
Final drive mounting bracket Rear final drive assembly Upper stopper Lower stopper Washer : N·m (kg-m, ft-lb) : Always replace after every disassembly. ...
Inspection
INSPECTION AFTER INSTALLATION ...
