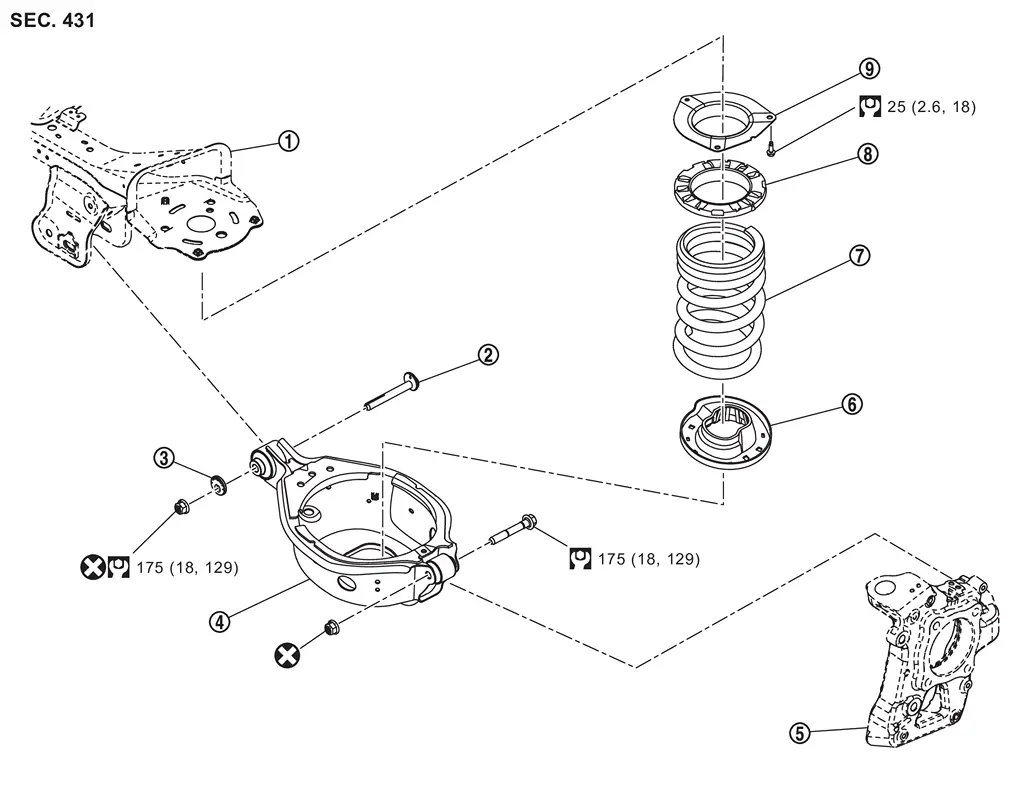

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Frame |  | Adjusting bolt |  | Eccentric disc |
 | Rear lower link |  | Axle housing |  | Lower rubber seat |
 | Coil spring |  | Upper rubber seat |  | Upper spring seat |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
Removal and Installation
REMOVAL
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Set suitable jack under rear lower link.
CAUTION:
Check the stable condition when using a suitable jack.
Never damage rear ...
