Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

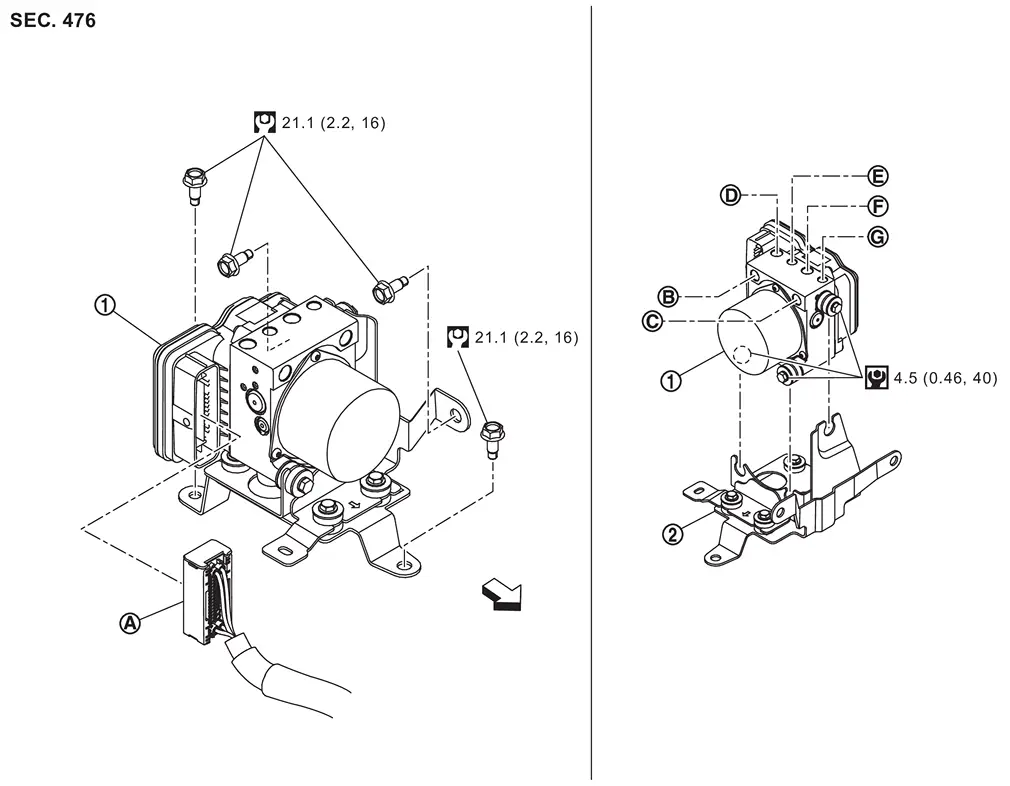

 | ABS actuator and electric unit (control unit) |  | Bracket | ||
 | ABS actuator and electric unit (control unit) harness connector |  | To electrical brake control unit primary side |  | To electrical brake control unit secondary side |
 | To front RH caliper |  | To front LH caliper |  | To rear RH caliper |
 | To rear LH caliper | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) |
Removal and Installation
WARNING:
REMOVAL
Disconnect the battery cable from negative terminal. Refer to Removal and Installation
Drain brake fluid. Refer to Draining.
Disconnect ABS actuator and electric unit (control unit) ...
