Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

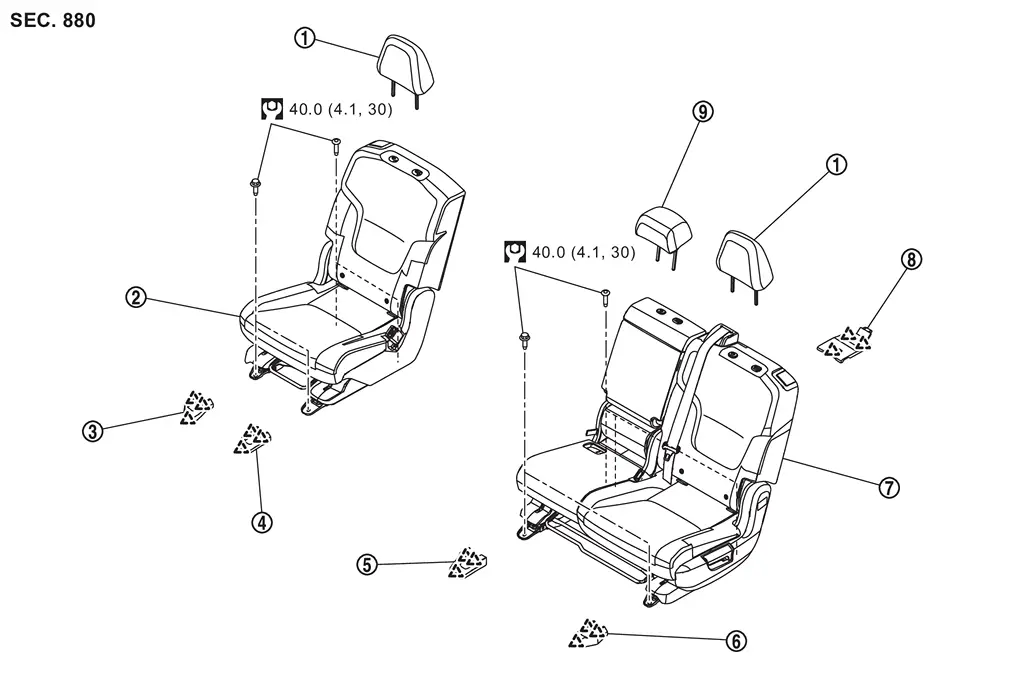

REMOVAL
 | Outer headrest |  | Second seat assembly (RH seat) |  | Outside seat leg cover (RH seat) |
 | Inside seat leg cover (RH seat) |  | Inside seat leg cover (LH seat) |  | Outside seat leg cover (LH seat) |
 | Second seat assembly (LH seat) |  | Center rail finisher |  | Center headrest |
 | : Pawl | ||||
 | : N·m (kg-m, ft-lb) | ||||
DISASSEMBLY

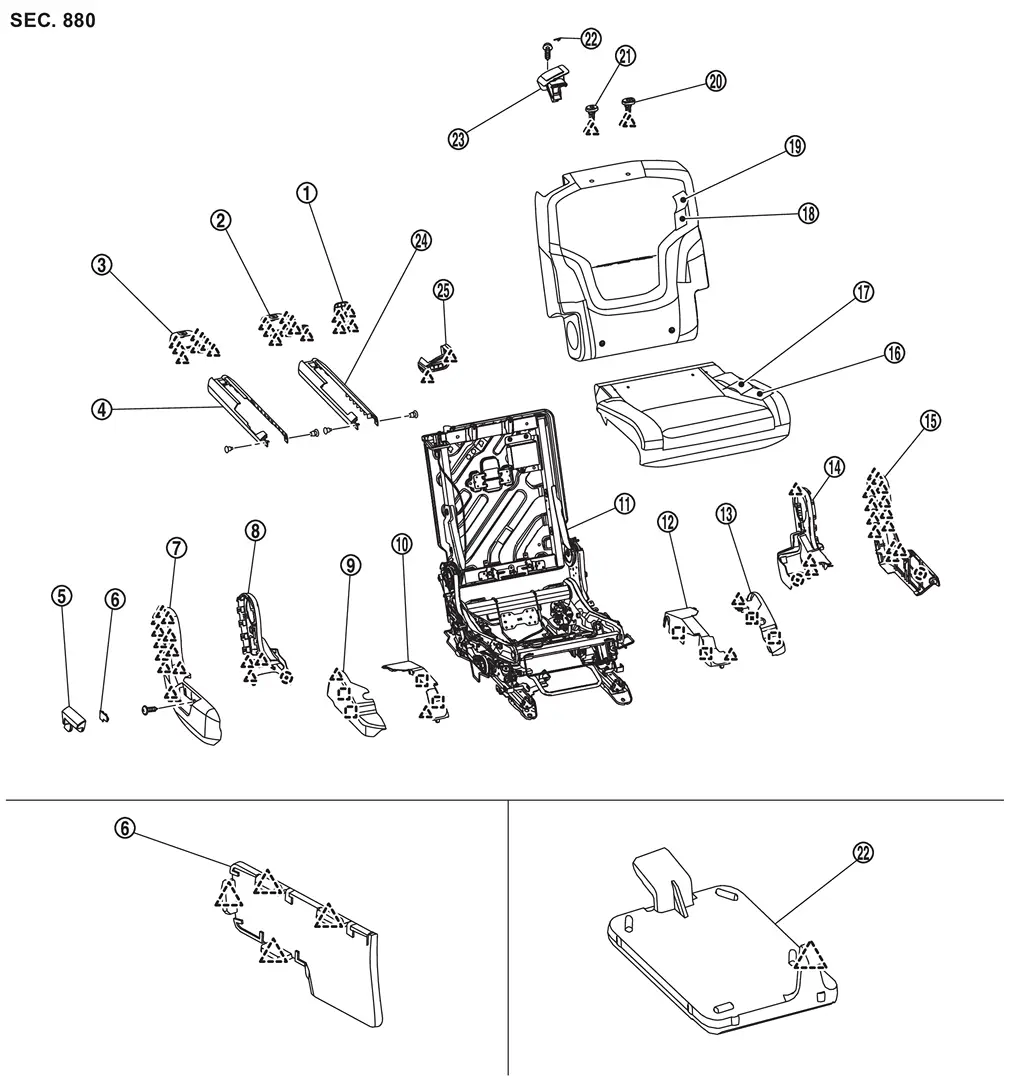

LH Seat
| Seatback lever unit | | Seatback lever unit cap | | Headrest holder (lock) |
| Headrest holder (free) | | Seat belt retractor cover | | Seat belt retractor cover cap |
| Center seatback assembly | | Seat cushion trim | | Seat cushion pad |
 | Inside seat cushion finisher outer |  | Reclining strap |  | Inside seat cushion finisher inner |
 | Center seatback hinge cover RH |  | Center seatback hinge cover LH |  | Inside seat cushion lower cover outer |
 | Inside seat cushion lower cover inner |  | Seat frame assembly |  | Outside seat cushion lower cover inner |
 | Outside seat cushion lower cover outer |  | Outside seat cushion finisher inner |  | Outside seat cushion finisher outer |
 | Reclining knob cap |  | Reclining knob |  | Outside slide finisher |
 | Outside striker cover |  | Inside striker cover |  | Inside slide finisher |
 | Seatback trim |  | Seatback pad |  | Center seat belt guide |
 | Seat belt guide cap |  | Seatback lever unit escutcheon |  | Tether anchor finisher |
 | Center seatback trim assembly |  | Center seatback frame |  | Armrest hinge |
 | Armrest hinge bracket RH |  | Armrest hinge cover RH |  | Armrest |
 | Center seatback panel |  | Armrest hinge cover LH |  | Armrest hinge bracket LH |
 | : Clip | ||||
| : Pawl | ||||
 | : Metal clip | ||||
 ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

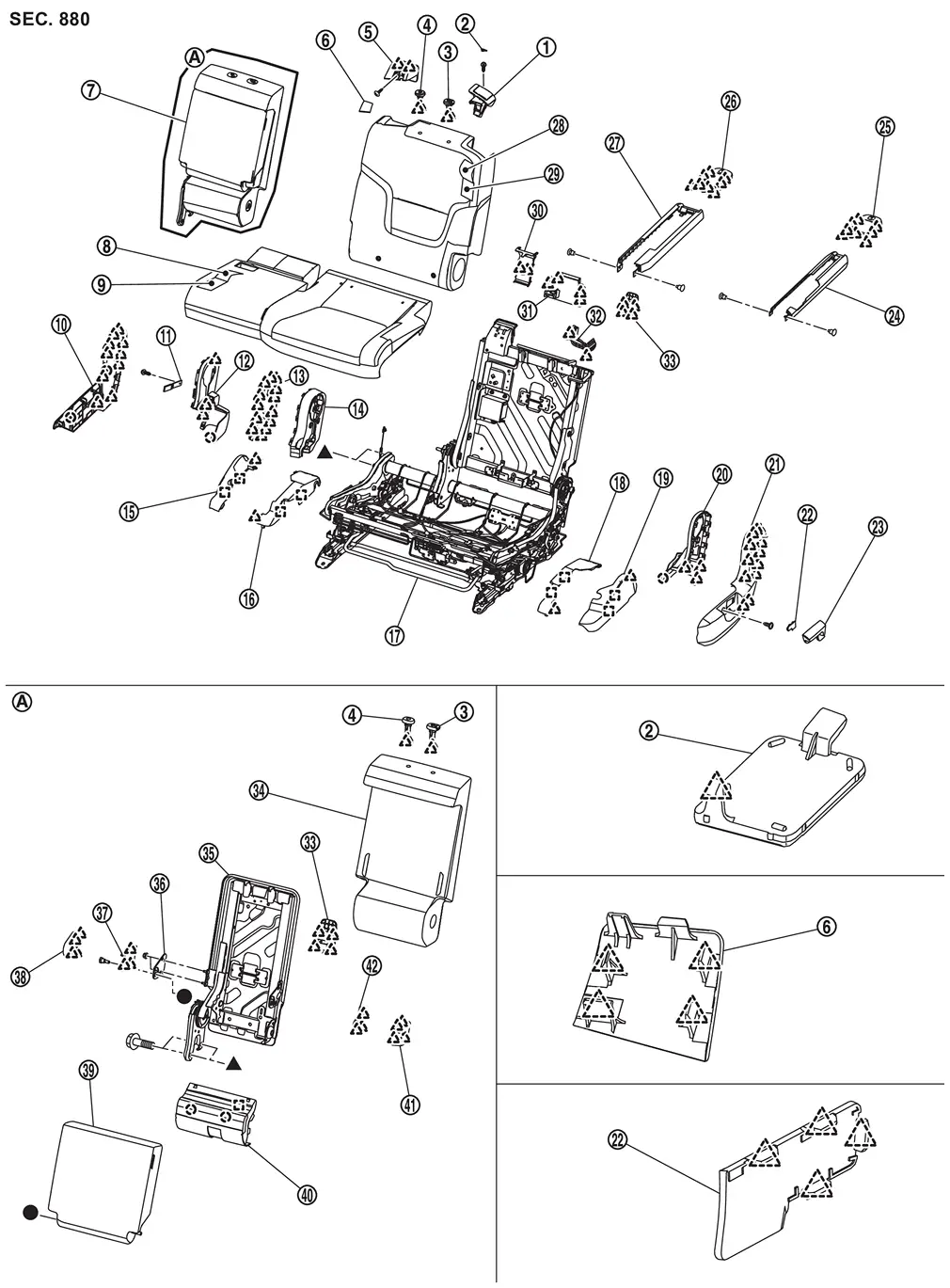

RH Seat
| Tether anchor finisher | | Inside striker cover | | Outside striker cover |
| Outside slide finisher | | Reclining knob | | Reclining knob cap |
| Outside seat cushion finisher outer | | Outside seat cushion finisher inner | | Outside seat cushion lower cover outer |
| Outside seat cushion lower cover inner | | Seat frame assembly | | Inside seat cushion lower cover inner |
| Inside seat cushion lower cover outer | | Inside seat cushion finisher inner | | Inside seat cushion finisher outer |
| Seat cushion pad | | Seat cushion trim | | Seatback pad |
| Seatback trim | | Headrest holder (lock) | | Headrest holder (free) |
| Seatback lever unit cap | | Seatback lever unit | | Inside slide finisher |
| Seatback lever unit escutcheon | ||||
| : Clip | ||||
| : Pawl | ||||
| : Metal clip | ||||
Removal and Installation
CAUTION:
Always work with 2 workers, because it is heavy weight.
REMOVAL
Remove headrest.
Slide second seat to front most position.
Disengage fixing pawls using a remover tool (A) according to numeri ...
