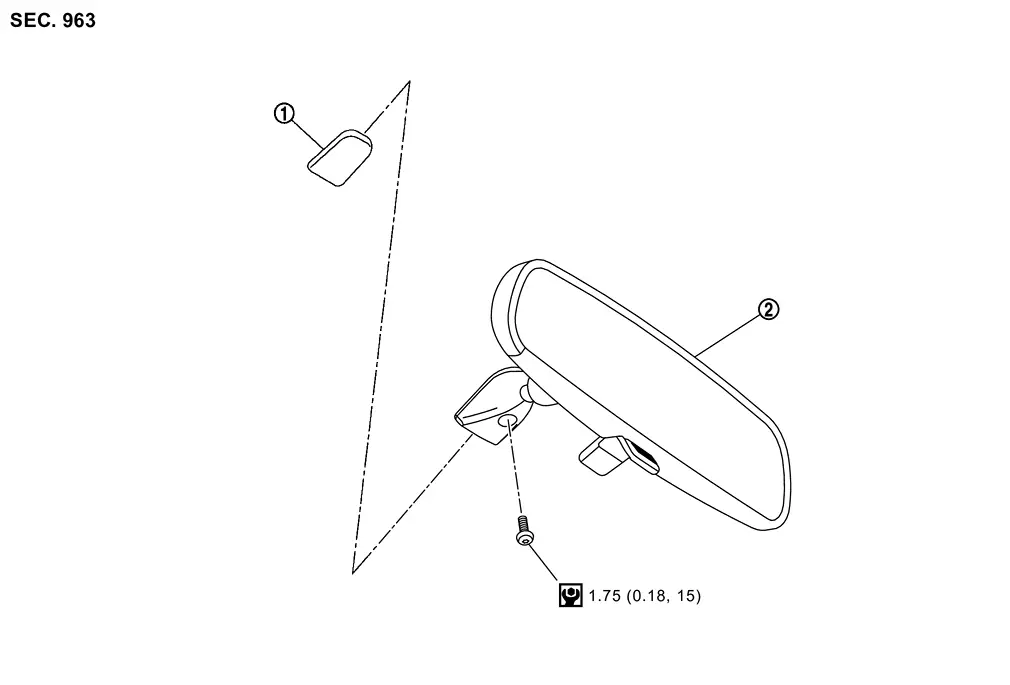

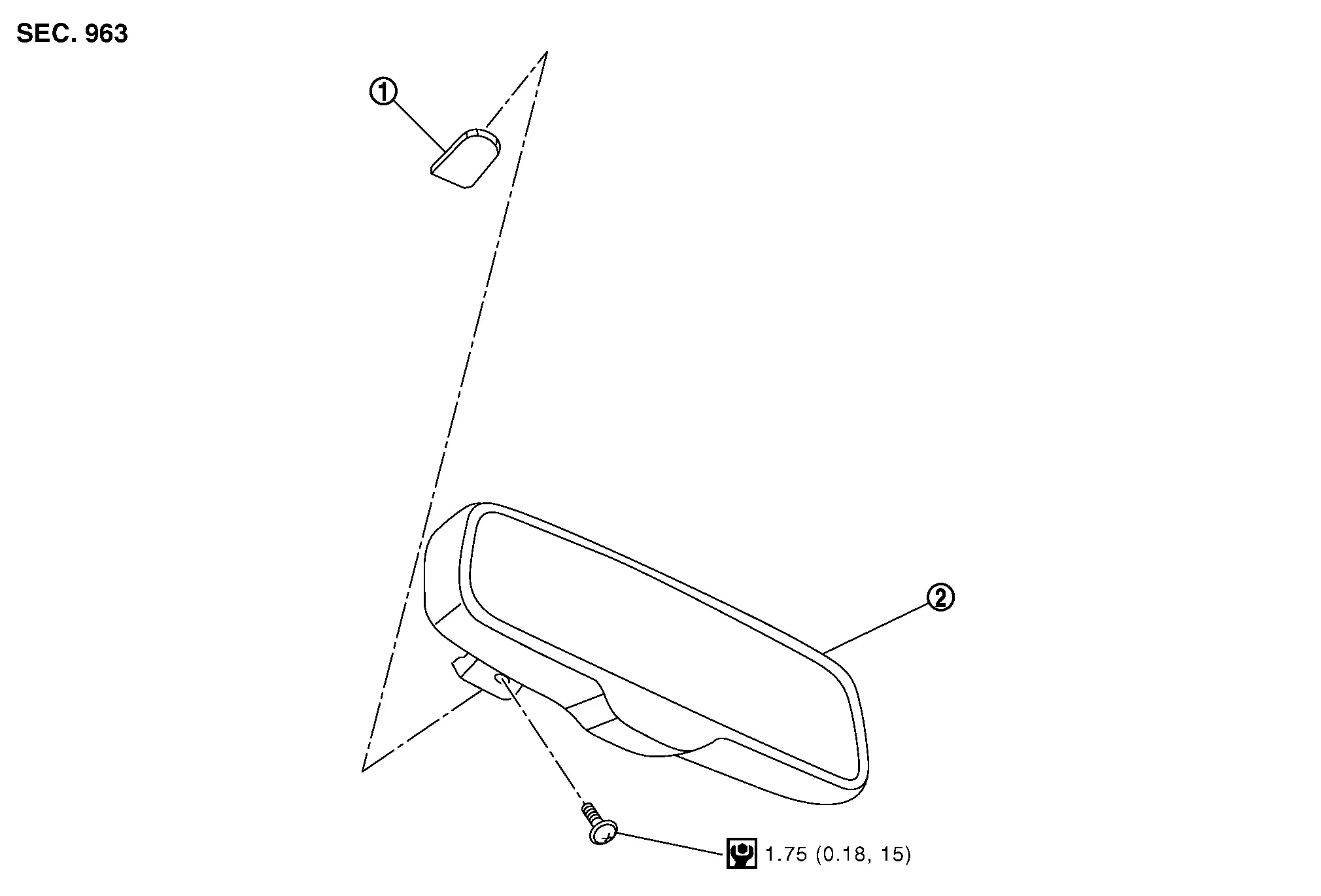

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Inside Mirror

...

Removal and Installation

REMOVAL CAUTION: Never damage the windshield glass and any parts. Manual Anti-dazzling Remove cover. Refer to the following. Without ProPILOT ASSIST 2.1: Removal and Installation. With ProPILOT ASSIS ...
