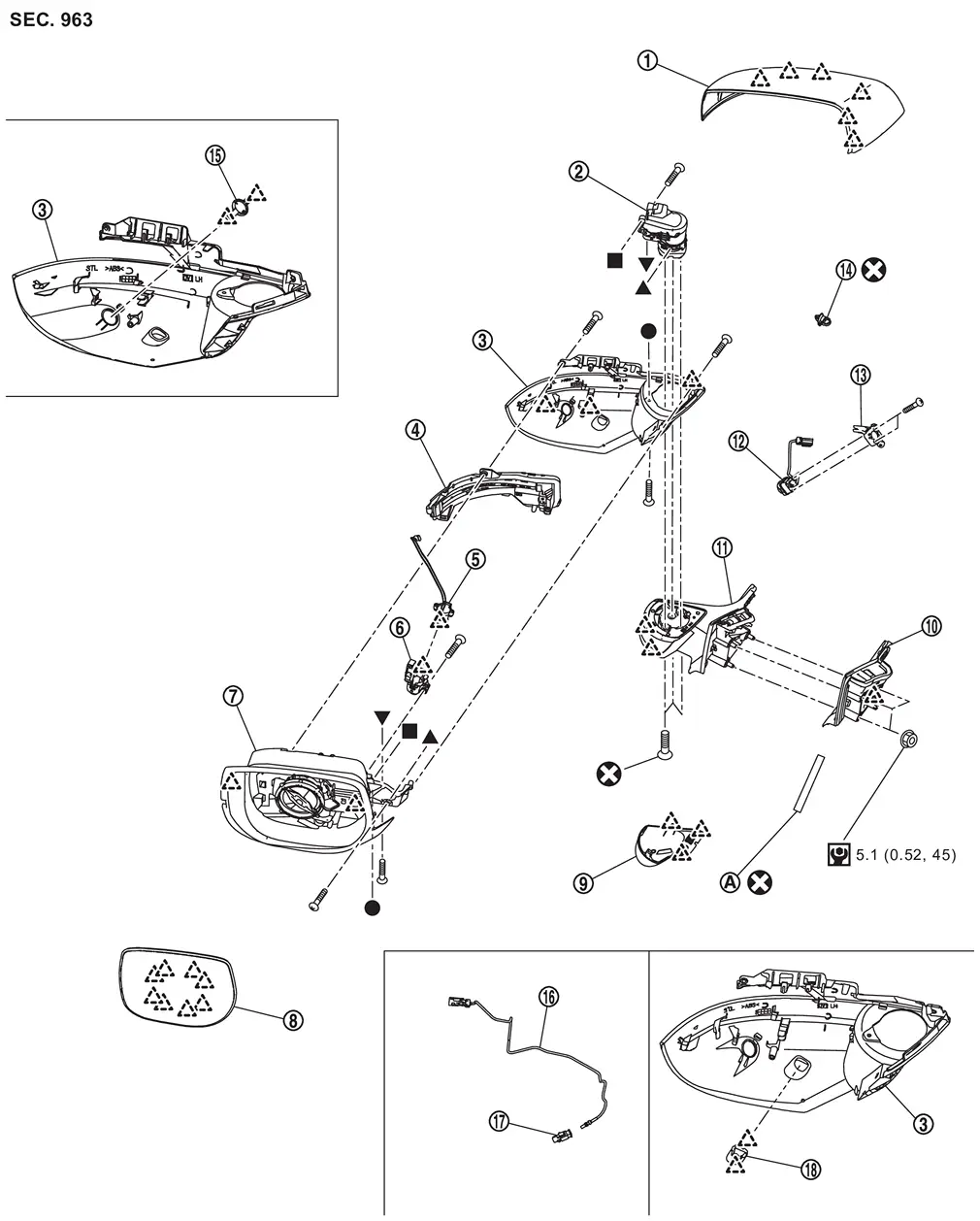

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Door mirror cover |  | Power folding motor |  | Door mirror finisher |
 | Side turn signal lamp |  | Puddle lamp bracket (with puddle lamp) |  | Puddle lamp (with puddle lamp) |
 | Door mirror housing assembly |  | Glass mirror |  | Door mirror base cover |
 | Door mirror base gasket |  | Door mirror base assembly |  | Side camera (with side camera) |
 | Side camera bracket (with side camera) |  | Harness clip |  | Side camera cover (without side camera) |
 | Side camera harness B (with side camera) |  | Side camera harness A (with side camera) |  | Puddle lamp cover (without puddle lamp) |
 | Vinyl tape | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
