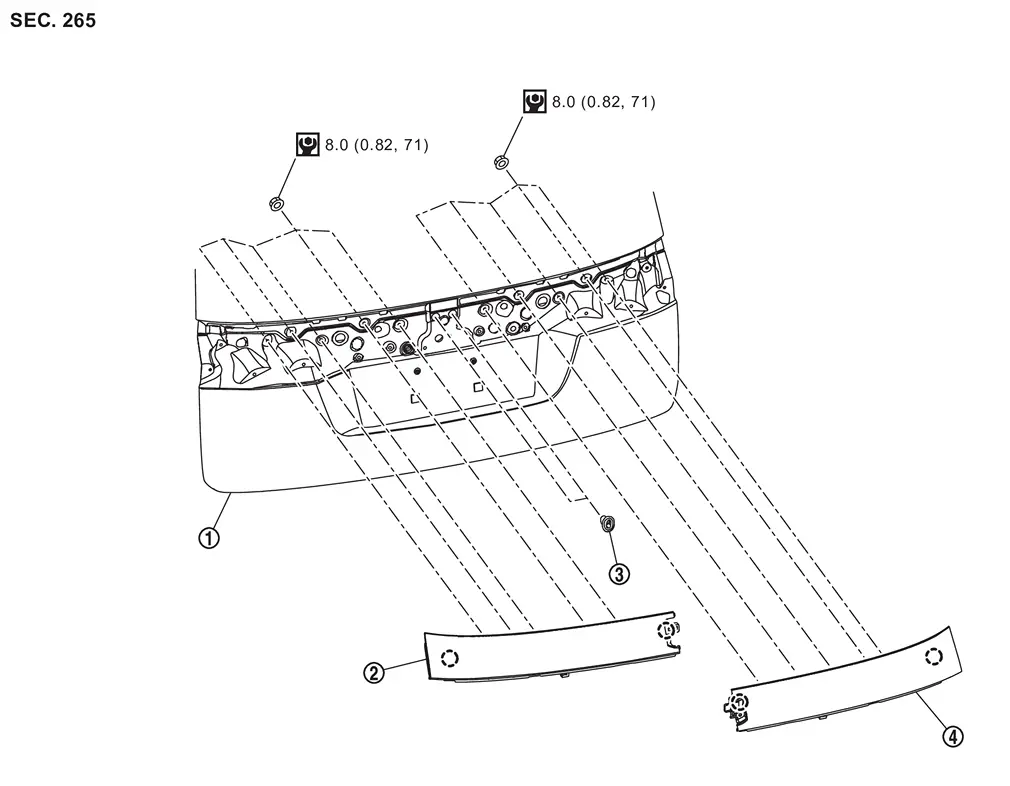

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Tail Lamp

...

Removal and Installation

CAUTION: REMOVAL Remove back door finisher. Refer to Removal and Installation. Remove rear emblem and rear emblem bracket. Refer to Removal and Installation. Disconnect tail lamp harness connectors . ...
