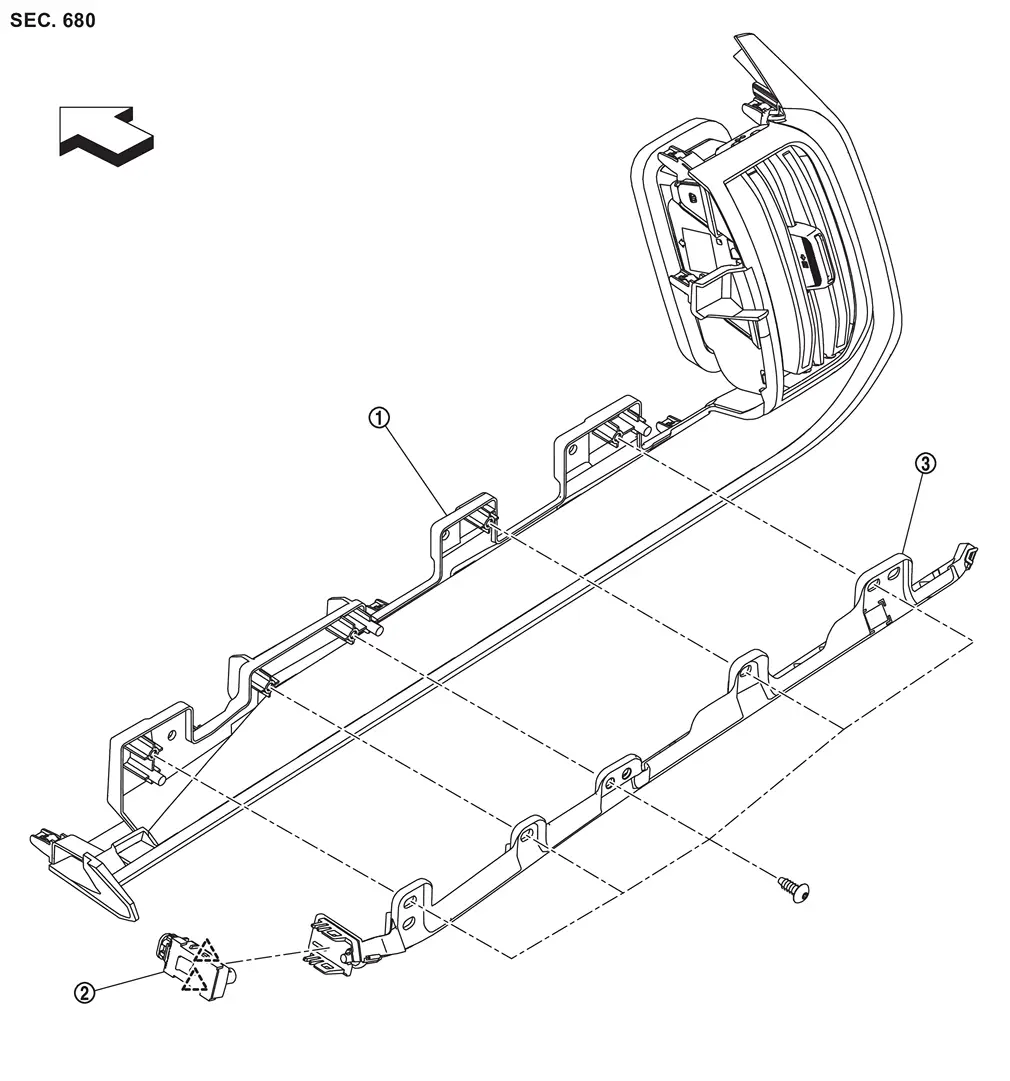

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Advanced Ambient Light (instrument Panel Passenger Side)

...

Removal and Installation

CAUTION: REMOVAL Remove instrument pad B. Refer to Removal and Installation. Disconnect harness connector. Remove indirect light RH fixing screws , and then remove indirect light RH. Disengage advan ...
