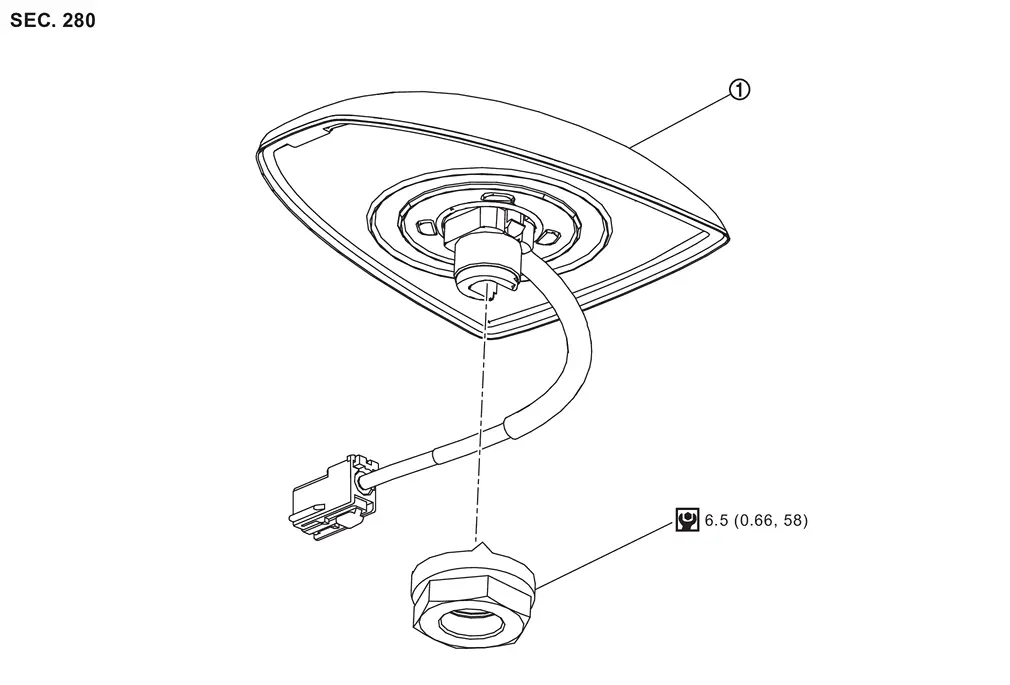

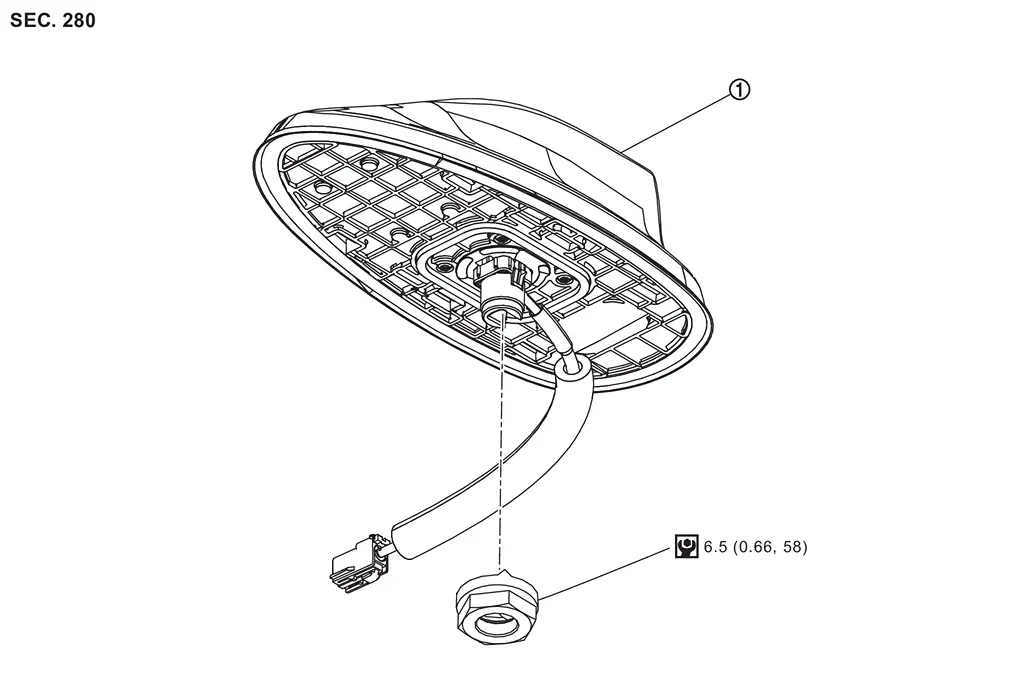

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Roof Antenna

...

Removal & Installation

REMOVAL Remove the headlining assembly. Refer to Removal and Installation. Remove the roof antenna harness connector. Remove roof antenna mounting nut , and then remove roof antenna. INSTALLATION In ...
