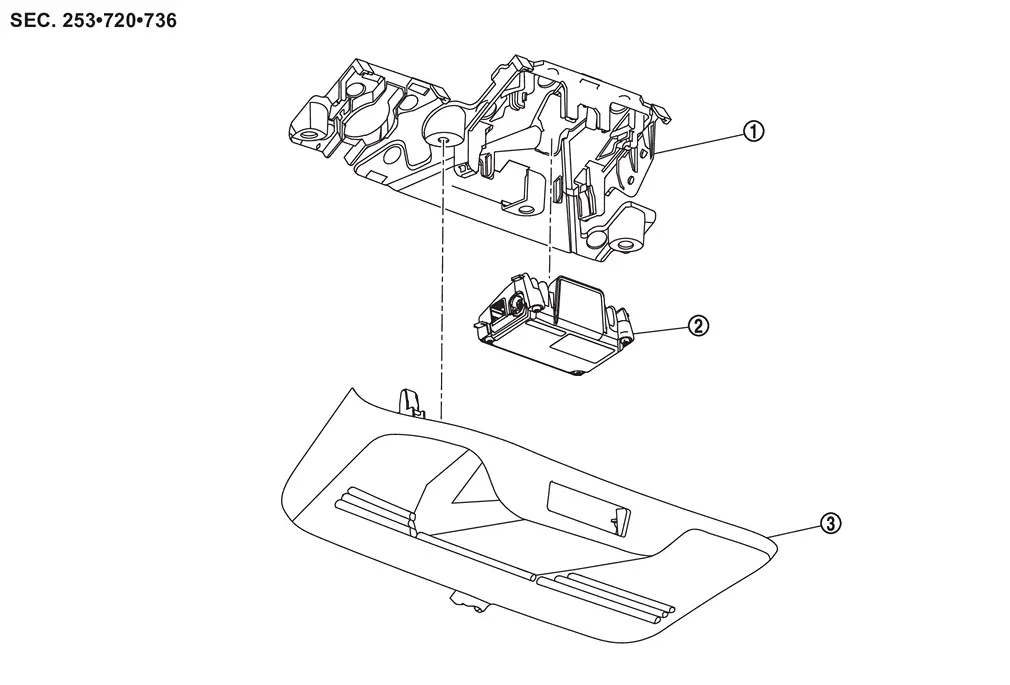

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Bracket |  | Front camera unit |  | Cover |
Removal and Installation
REMOVAL
Using a suitable tool, release clips , and remove cover .
Disconnect front camera unit harness connector.
Release pawls of bracket, and remove front camera unit from bracket.
INSTALLATI ...
