Nissan Armada 2025-2026 Service and Repair Manual: Frame Repair Procedure

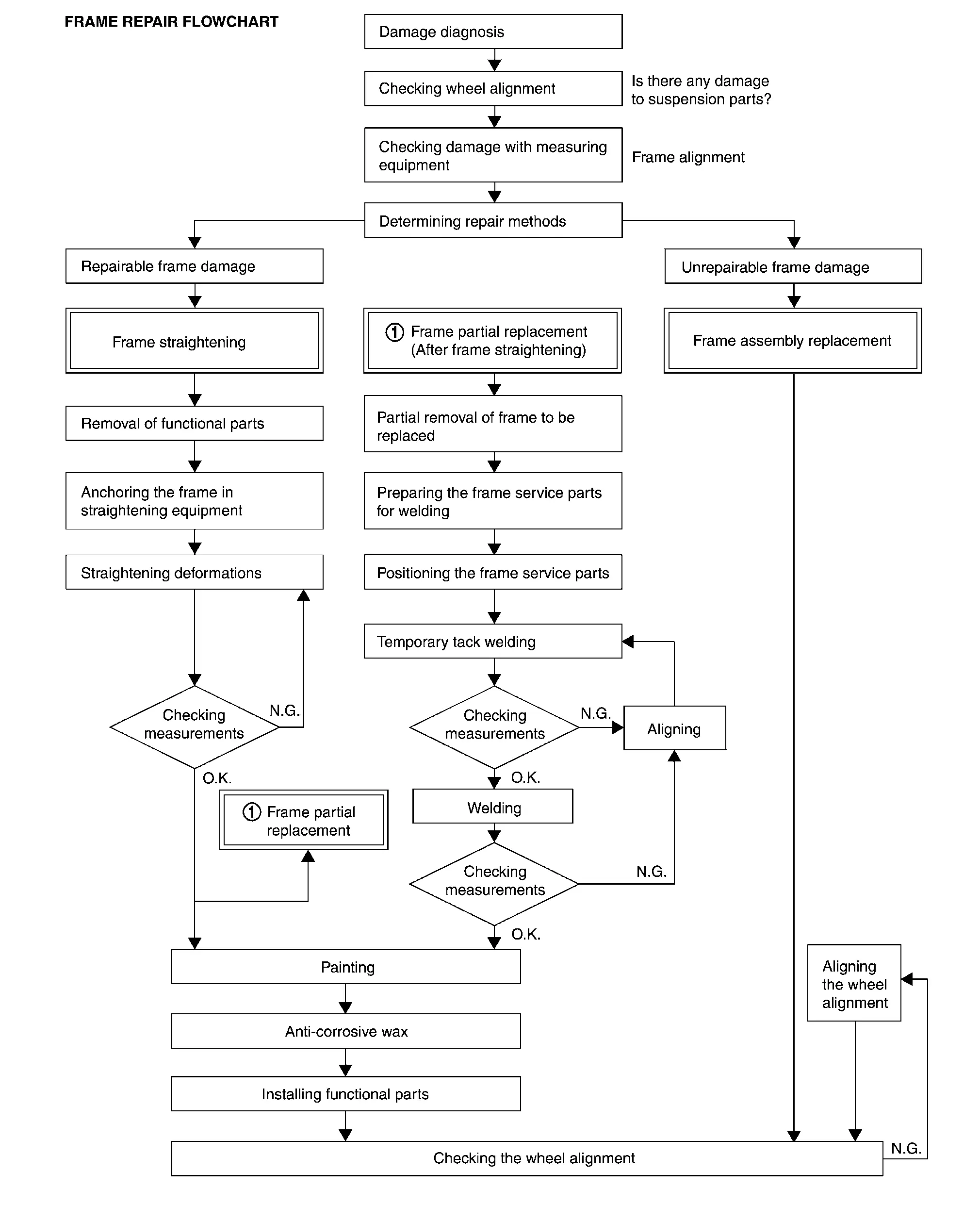

In general, a task to repair a frame damaged by a traffic accident (straightening and entire or partial replacement) is performed according to the following procedure.
Frame Vehicle Construction
(1) FEATURES OF FRAME TYPE VEHICLE
The body is bolted to the frame via rubber bushings. Unlike uni-bodies, the suspensions and power train units are assembled to independent frames. The frames support ...
Frame Deformation
In a frame type vehicle, an independent body and frame are joined at the body mount points. Therefore, when the vehicle suffers impact from the front or rear in a collision, most of the impact is abso ...
