Nissan Armada 2025-2026 Service and Repair Manual: Glue System
Glue systems allow pulling when an area is not easily accessible like roof rail or beneath braces. It is also one of the easiest systems to learn. But it is mainly limited to soft dents.
A couple of things that affect the glue pulling:

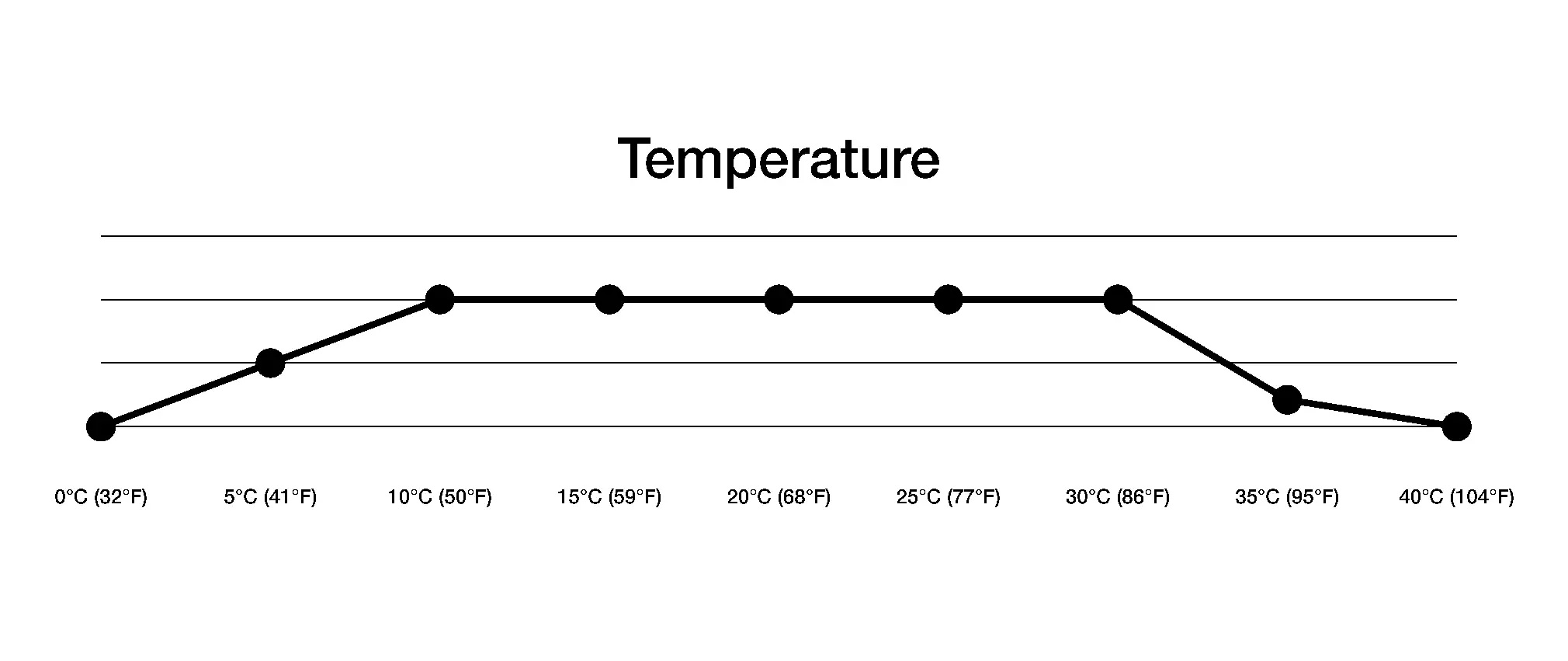

Temperature

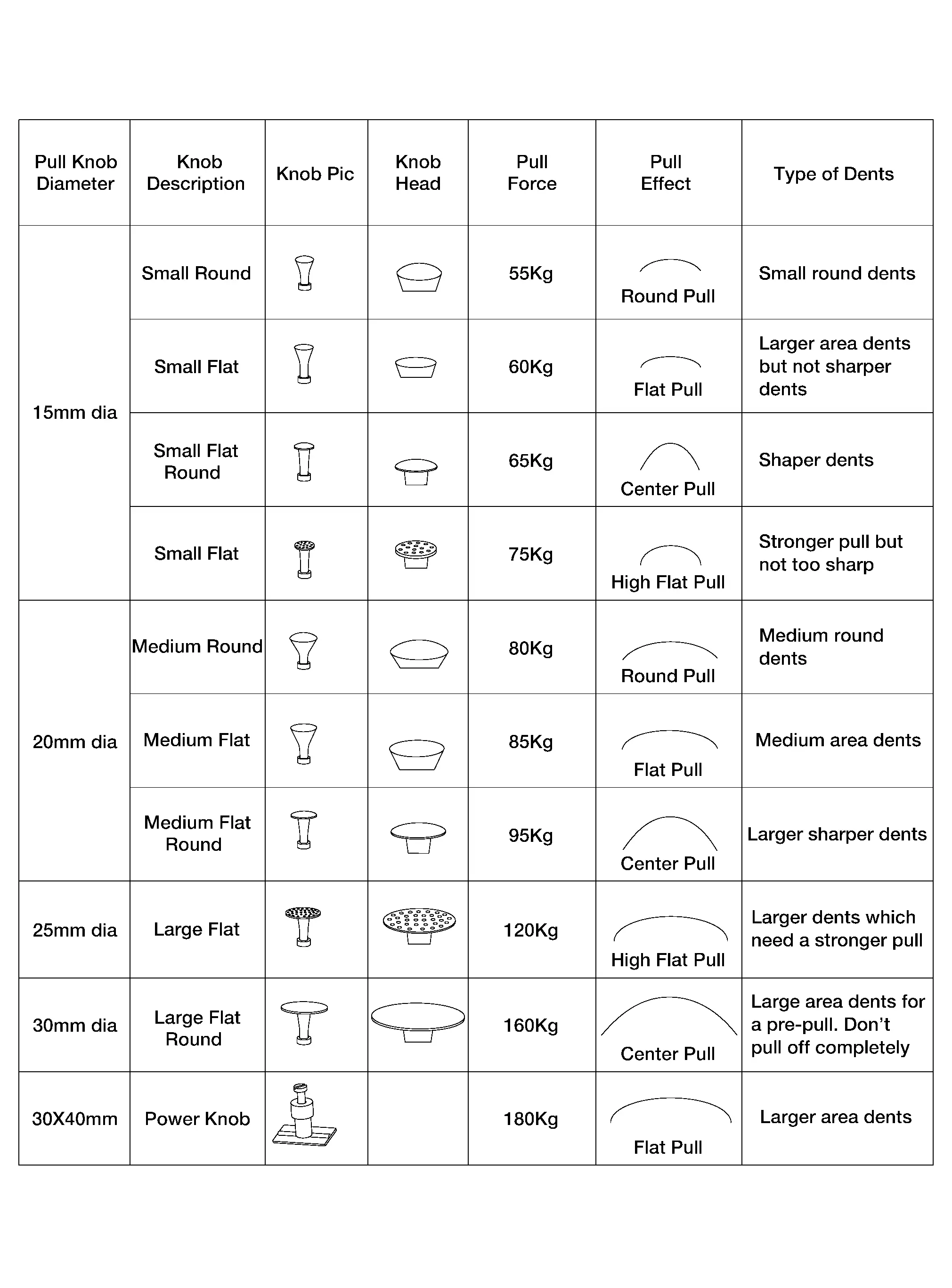

The diameter and the size of the pull knob
Application
Place the knob correctly.
Cooling time
The cooling time depends on the surface temperature as well as on the type of glue being used. The glue is coming out of the glue gun from 120 deg. to 140 deg. depending on the glue gun. Then the glue needs some time to cool off. There are several methods as to when to pull also depending on the type of glue.

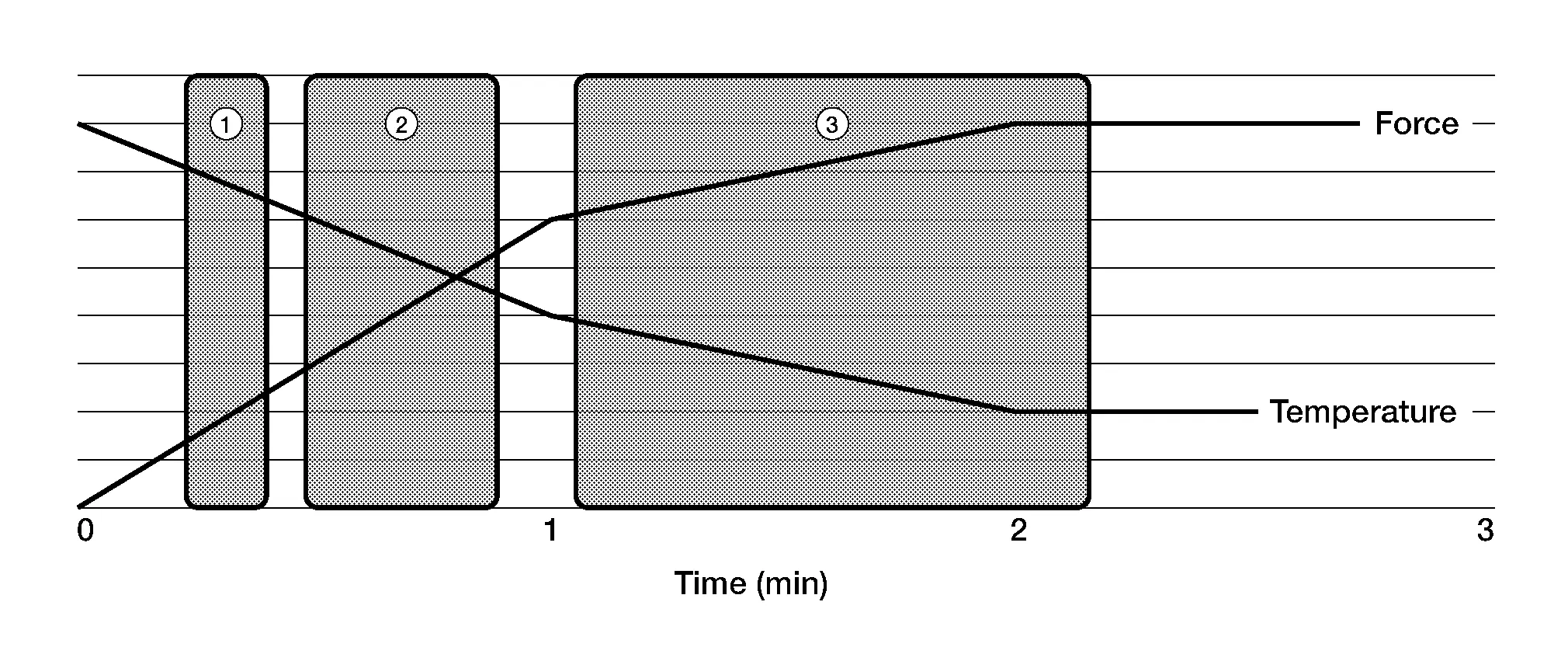

Index Explanation 1 After 15 seconds: In this range, a pull can be done if a high pulling force is not required, for example, with small dents. 2 After 25 seconds: In this range, the warmth of the glue can still be in the metal, and thus facilitate the pull. This can only be done with sharper dents. With some glues, this can be the ideal cooling off time. 3 After 60 seconds: This is the standard range if you want consistent results. Pulling type
There are two basic pulling methods. One is with a hand puller and the other is with the sliding hammer.

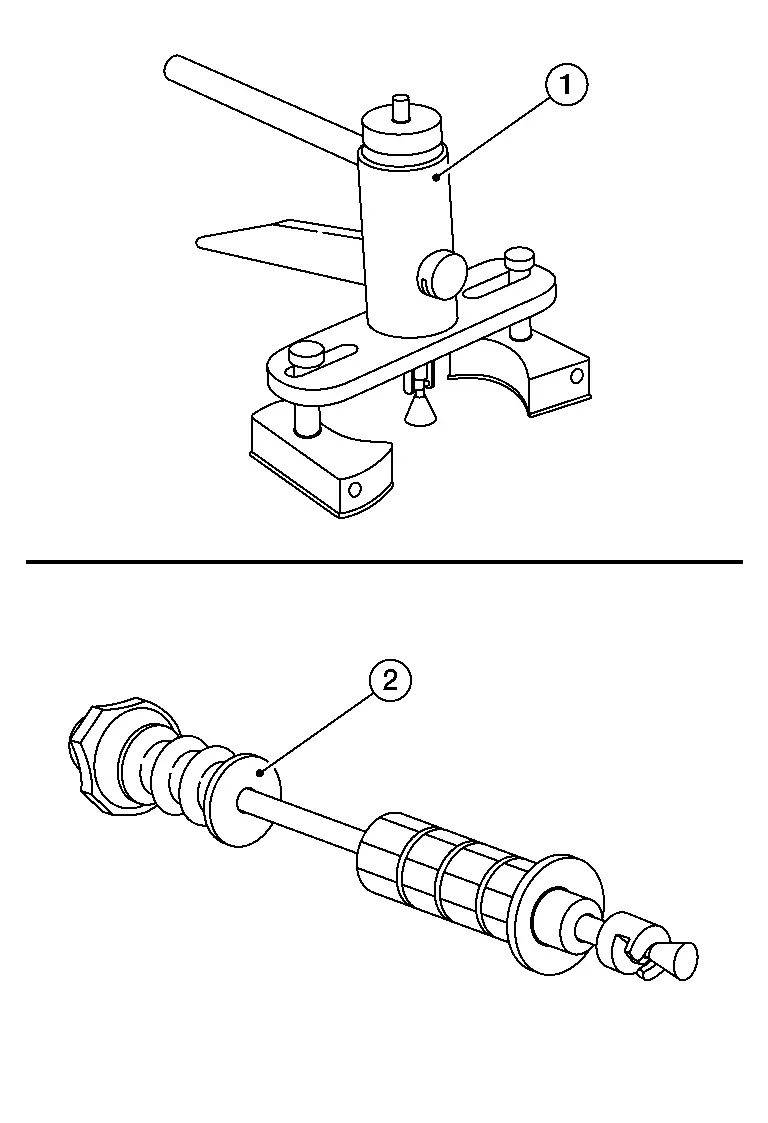

In general the hand puller (1) is easier for beginners and also for deeper damage. The sliding hammer (2) is a little faster in the application. It depends more on what you are used to.
Area of application

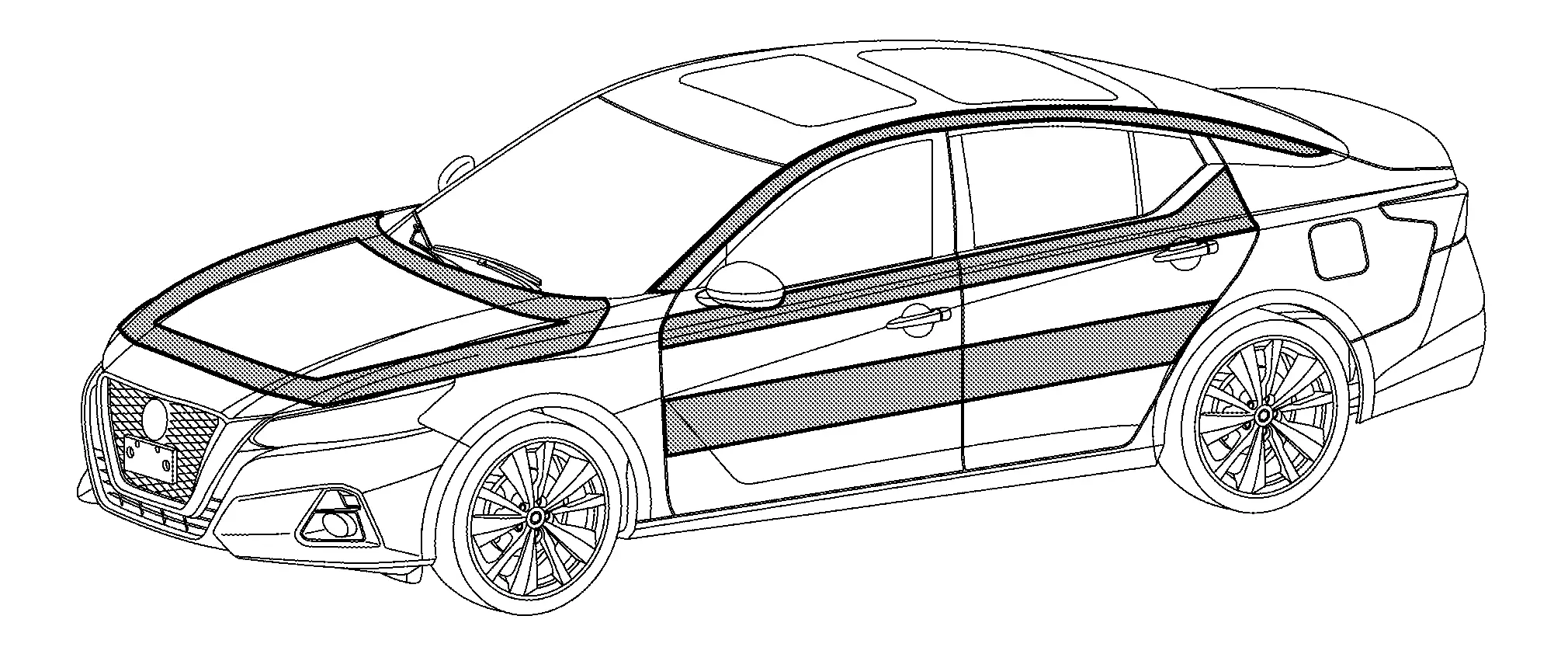

The glue system can be used on all areas. It is ideal on soft and medium dents. Although in some areas where access with the PDR tools is difficult it is used frequently.
Examination of Panel
Irregularities in the panel must be examined carefully to see whether or not they can be repaired, and also to determine the most suitable repair method.
Refer to "Examination of Panel Damage".
