Nissan Armada 2025-2026 Service and Repair Manual: Inspection
If a A/C compressor is malfunctioning (internal noise, insufficient cooling), check the compressor oil.
COMPRESSOR OIL JUDGMENT
Remove the A/C compressor. Refer to Removal and Installation.

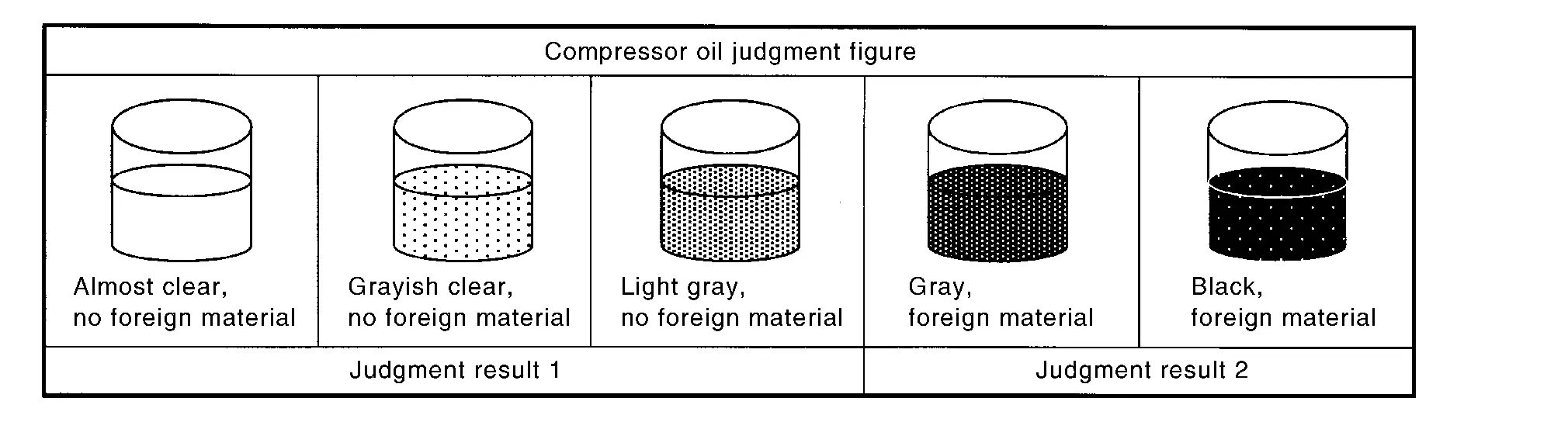

Sample a compressor oil and judge on the figure.
Judgement result 1
Replace A/C compressor only.
Judgement result 2
Replace A/C compressor and condenser & liquid tank.
Lubricant
MAINTENANCE OF LUBRICANT LEVEL
The compressor lubricant is circulating in the system together with the refrigerant. It is necessary to fill A/C compressor with lubricant when replacing A/C system part ...
Perform Lubricant Return Operation
CAUTION:
If a large amount of refrigerant or lubricant leakage is detected, never perform lubricant return operation.
Start the engine and set to the following conditions.
Engine speed: Idling to 1,2 ...
