Nissan Armada 2025-2026 Service and Repair Manual: Polishing of Panel Surface and Anti-corrosive Treatment
(1) POLISH-FINISHING OF CORRECTED SURFACE
If the painted surface is scratched during repair, polish with compound to remove scratches.
(2) ANTI-CORROSIVE TREATMENT OF BACK OF PANEL

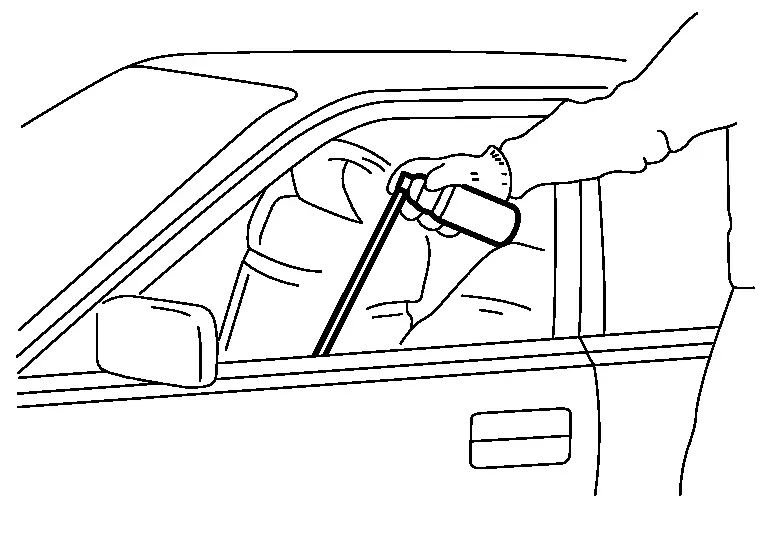

The spoons may cause scratches. Apply anti-corrosive wax to the back of panel.
Use 3M 8852 Cavity Wax + 3M 8851 Applicator Wand Kit, or equivilent.
