Nissan Armada 2025-2026 Service and Repair Manual: Precautions for Frame Repair

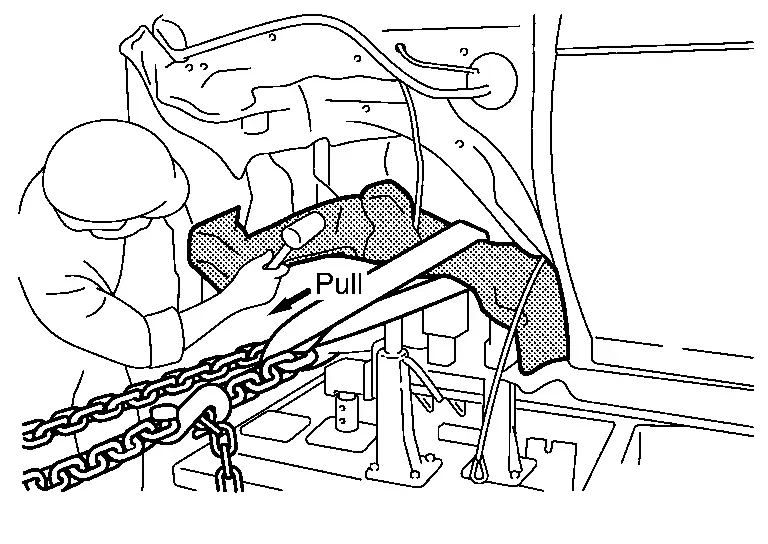

To eliminate any residual stress from the frame, always perform hammering during straightening work. This is extremely important because residual stress removal is more difficult in frames than in side members of uni-body vehicles. Any wrinkles generated in the frame and residual stress in the frame must be eliminated by tapping on the applicable portions with a hammer during straightening work. Complete elimination of residual stress is particularly important for straightening of twisting.
Frame Repair Method according to Deformation Type
The basic repair procedures are described below for the respective frame deformation types previously outlined.
(1) SAGGING REPAIR METHOD
For sagging, any vertical bending of the frame must be straigh ...
Cut and Butt Joint Weld
Damages that are considered difficult to repair by frame straightening work, such as a deformed crash horn, may be restored by a butt joint weld only if the Service Manual and/or the Body Repair Manua ...
